Modux One Wayfinder
- Direct Burial (Standard)
- Flange Mount
SKUM1-WF

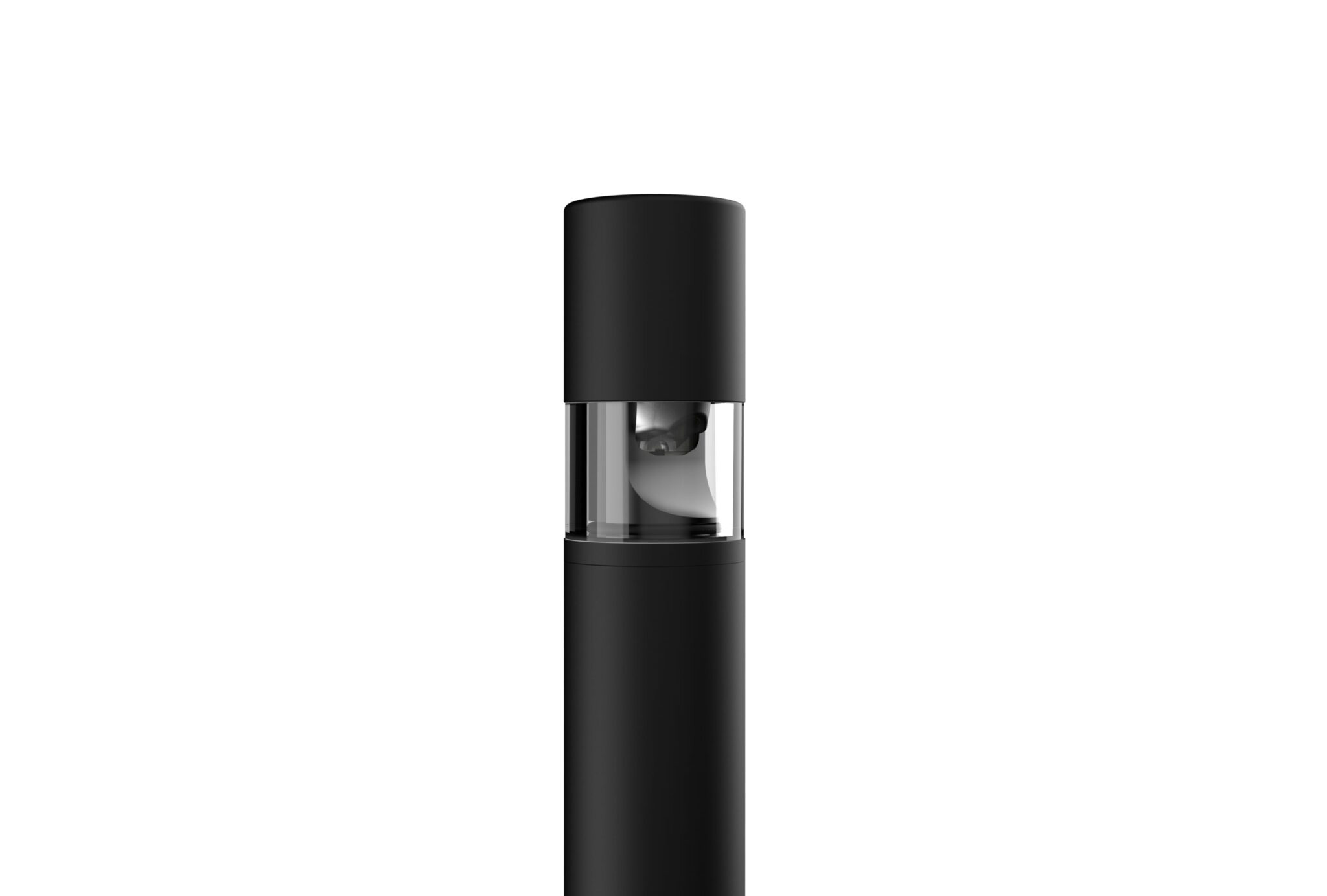

This 1 inch diameter miniature pole light produces plenty of light in an asymmetric wash, without glare.

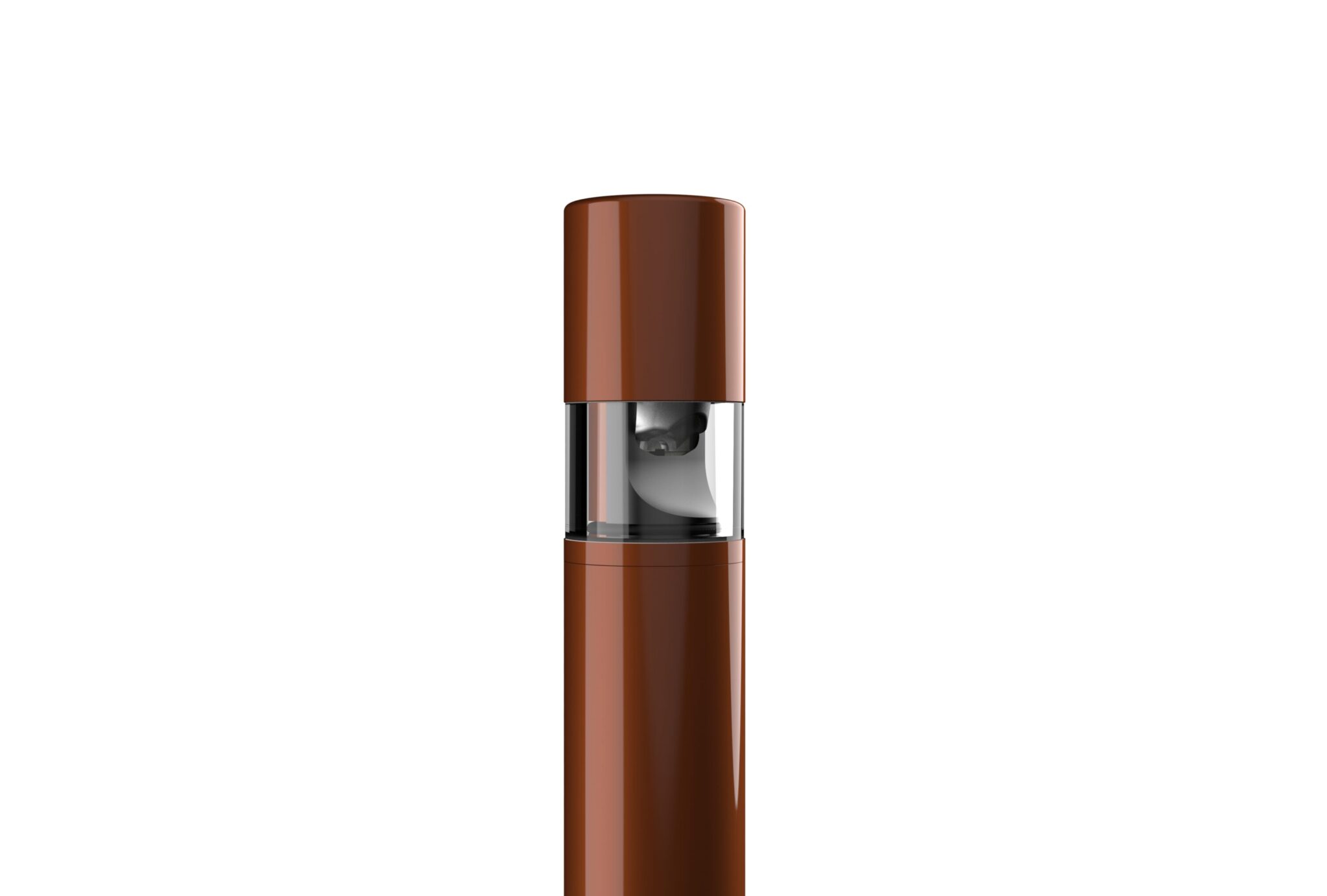

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.

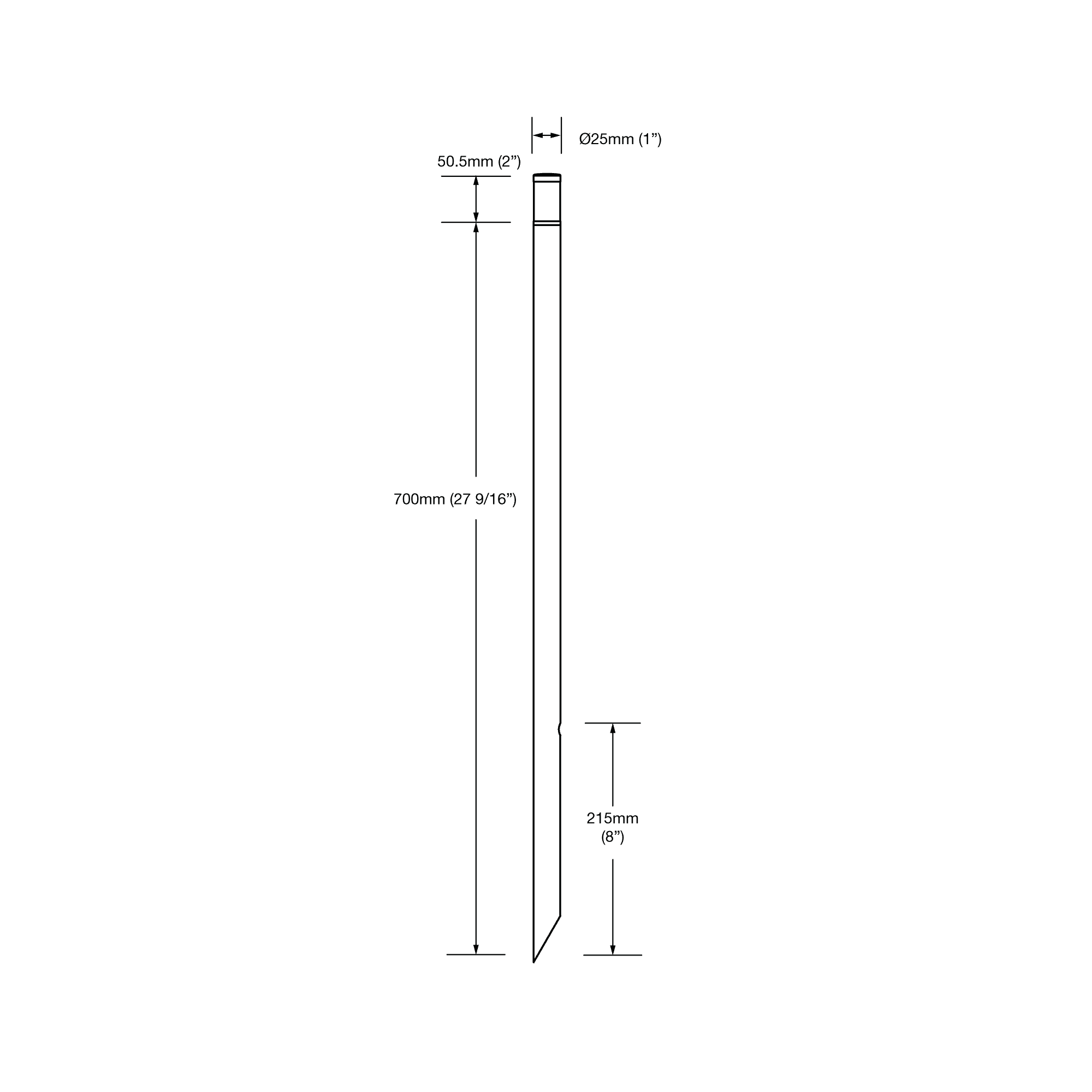

Regular pole length = 700mm
Custom length available on request.
Why solid copper outdoor lights last
Specifications
| LED Chip | Push mounted 1W 3Vf Cree XPG-3 LED |
|---|---|
| Luminaire Output* | 80 lm @ 350 mA (1 W) Delivered |
| Lumens Per Watt* | 80 lm/W Delivered |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) | 90+ Standard |
| Ingress Protection | IP67 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards |
|
Documents
Specifications / Data Sheets
Product Diagrams
Installation Instructions
Photometric Files
Other Files
