Modux Two Pathlight
SKUM2-PL4

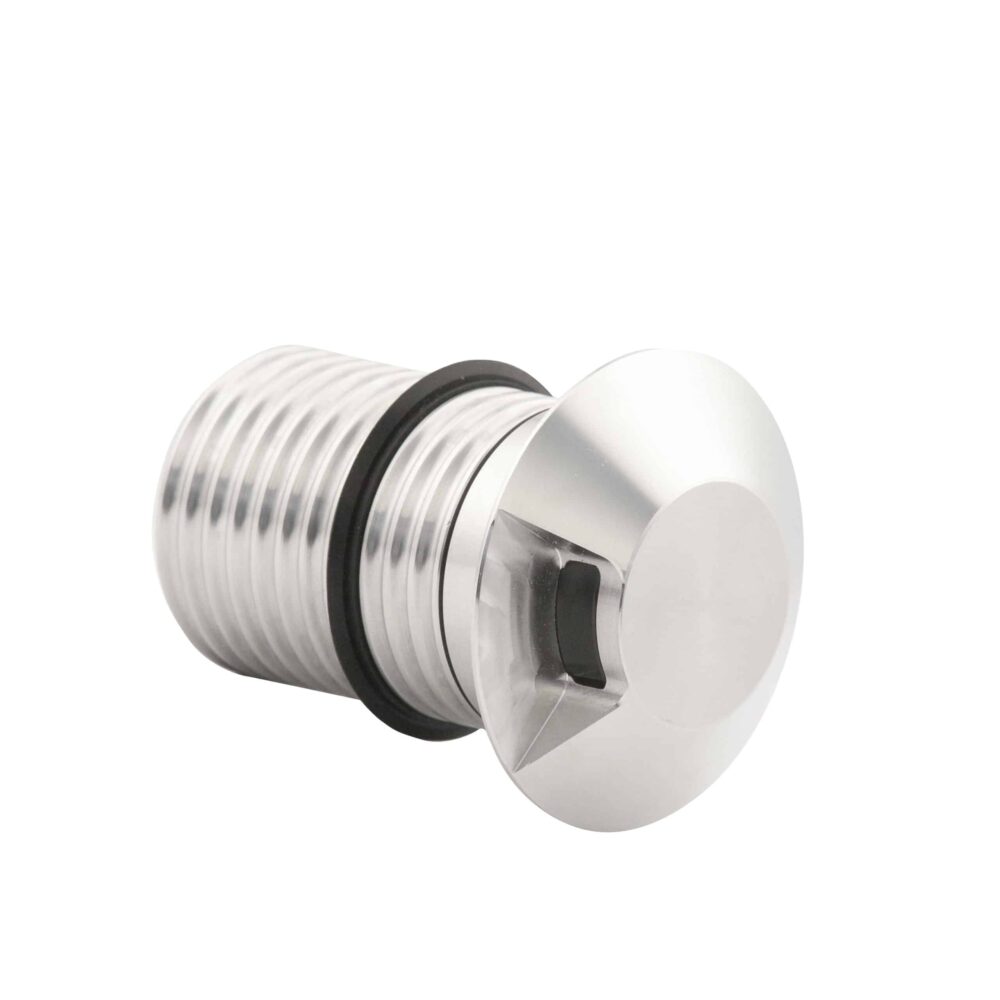

The Modux Two Pathlight is a low-voltage dimmable outdoor path light that produces a wash distribution 5 degrees below the flange lip, and 10 degrees above. Can be used to illuminate a wall surface, or as a path light wayfinder among other applications.
Precision machined in marine grade 316 stainless steel or copper, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is glass.
Why solid copper outdoor lights last
Specifications
| LED Chip | Screw Mounted 2W 3Vf Cree XPG-3 LED |
|---|---|
| Luminaire Output* | 180 lm @ 700 mA (2 W) Delivered |
| Lumens Per Watt* | 90 lm/W Delivered |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) | 90+ Standard |
| Ingress Protection | IP68 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards |
|
Documents
Specifications / Data Sheets
Product Diagrams
Installation Instructions
Photometric Files
Other Files
