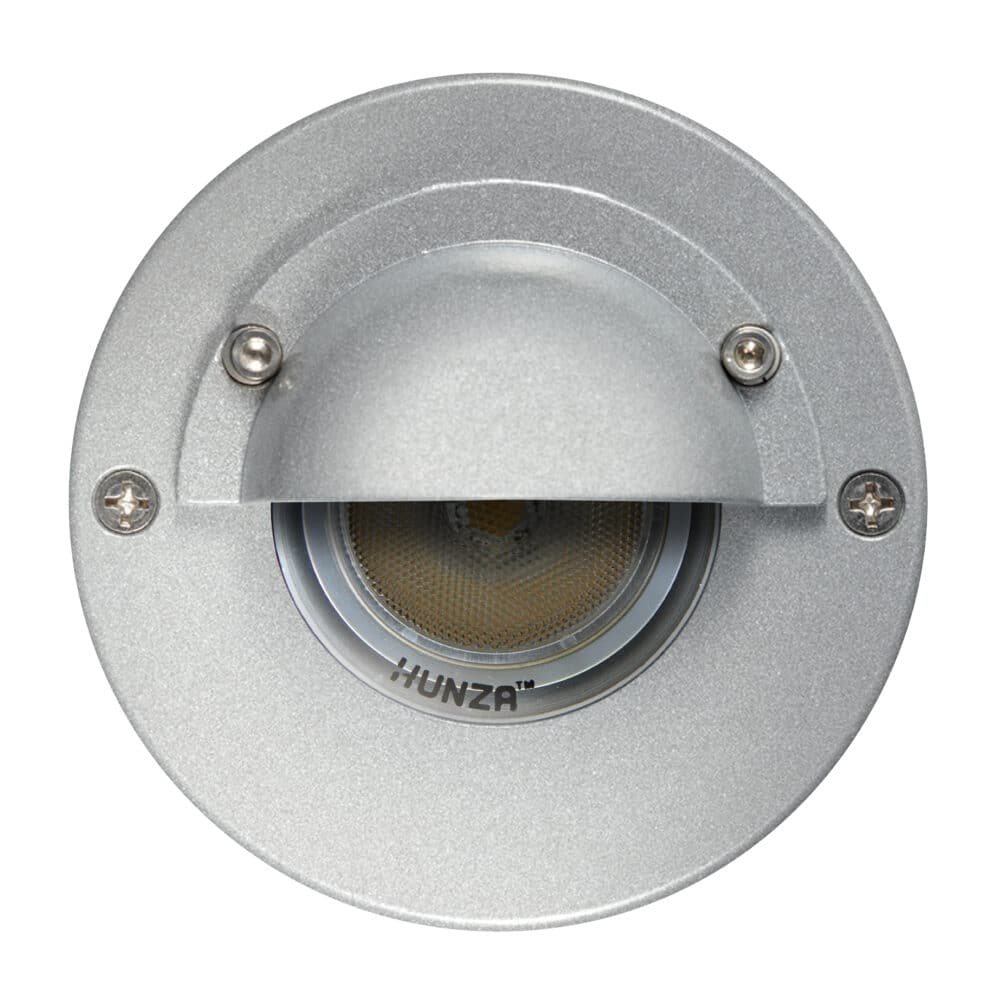

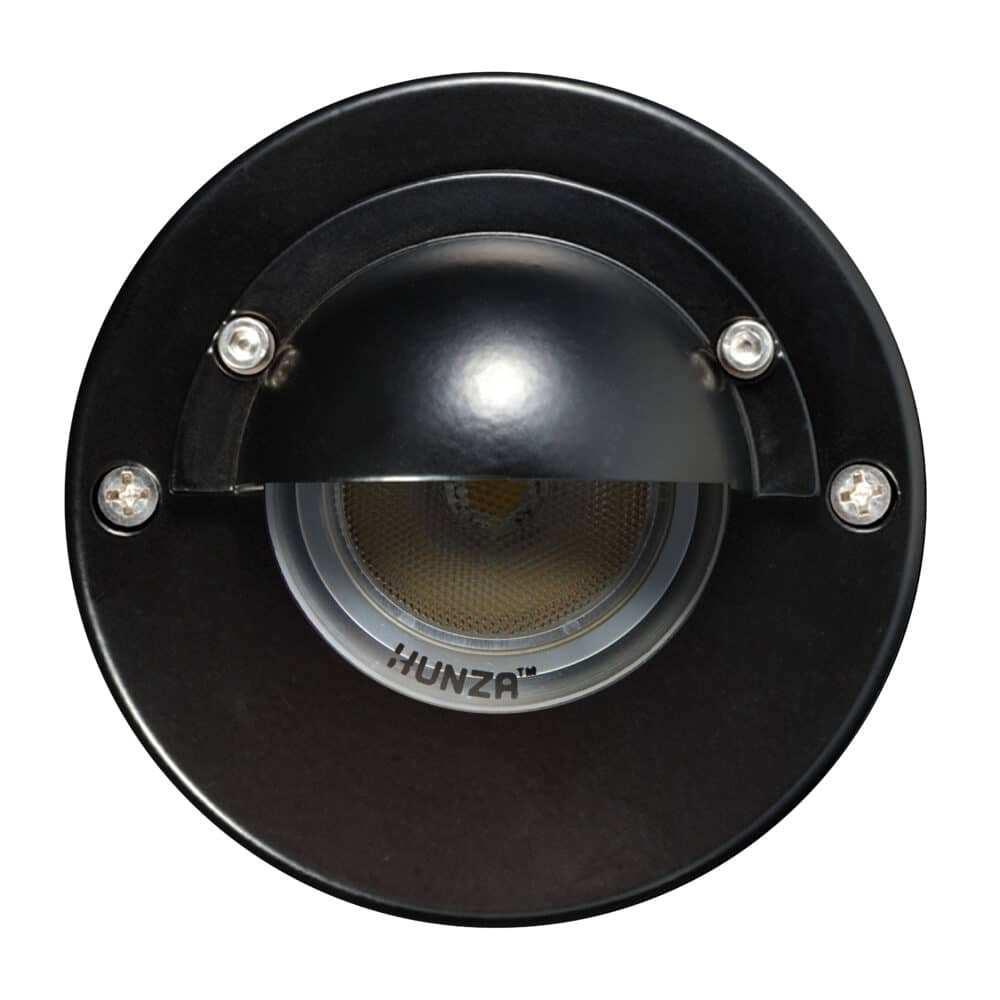

Name: Step Light Eyelid
SKU: SLE/L

Lumen Output*	600 lumens @ 1050mA (6 Watts) 420 lumens @ 700mA (4 Watts) 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.	100 lm/W
Power Options	1050mA CC Input – Series Wired 6Vf 12VAC Input 350mA – Parallel Wired 2.1W 12VAC Input 700mA – Parallel Wired 4.2W 12VAC Input 1050mA – Parallel Wired 6.3W 24VDC Input – Parallel Wired 4.2W
Material Options	Solid Copper Black Bronze Dark Grey Corten Olive Green Gold Bronze Silver Star Arctic White Fine Silver White Birch
Beam Angle Options	15 Degree 25 Degree 38 Degree 60 Degree
Colour Temperature Options	2700K (Warm White) 3000K (Neutral White) 4000K (Cool White)
Lens Options	with Clear Lens with Frosted Lens with Clear Lens and Hex Cell Louvre
Mounting Options	Deck Mount Canister – Aluminium Stainless Steel Canister Step Light Canister
LED	Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
CRI	90+ Standard
Ingress Protection	IP66
Materials	Solid Copper Solid Powder Coated Aluminium
Warranty	Aluminium Components – 5 years Electronics – 5 Years Solid Copper Components – 10 Years
Standards	IEC/BS/AS/NZ 60598 UL 1838
Recommended Power Supplies	DRIVER REQUIRED for Series Wired (CC format) TRANSFORMER REQUIRED for 12VAC Parallel Wired ( CV format )

Hunza® Step Light Eyelid
