V1 Round

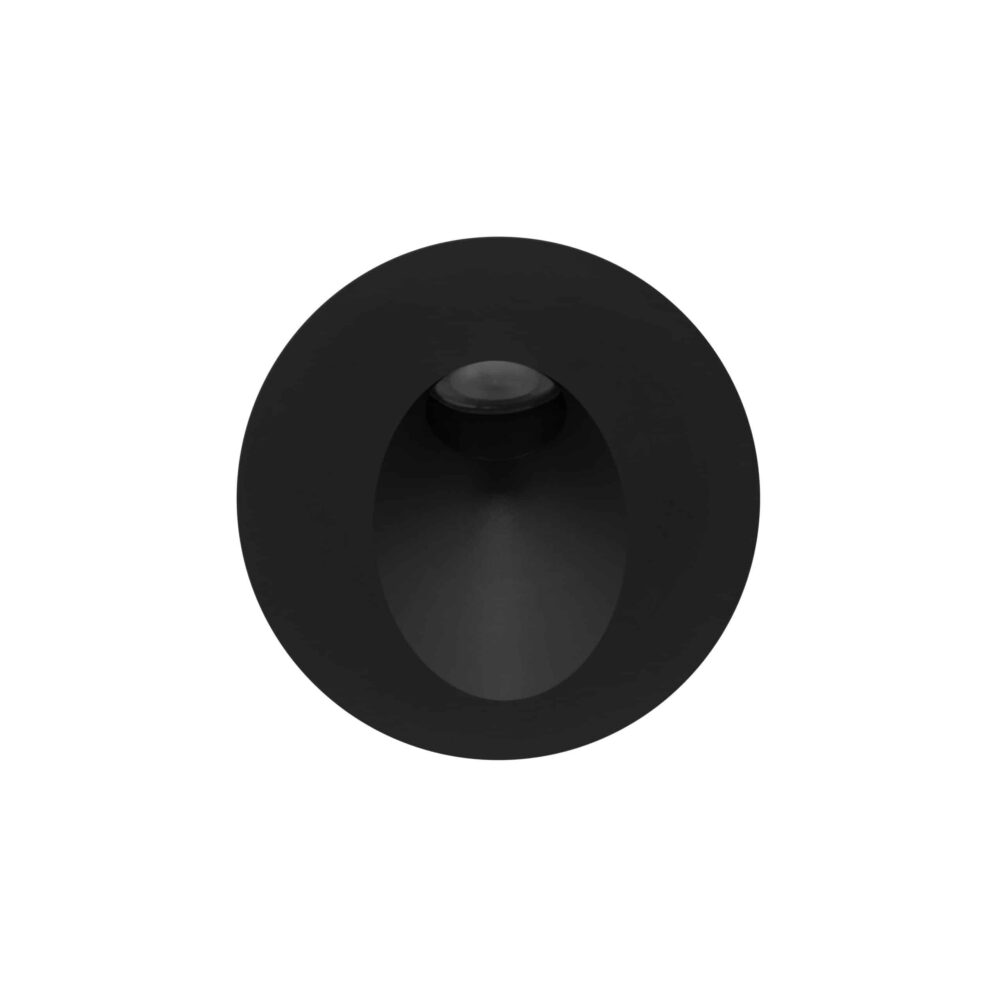

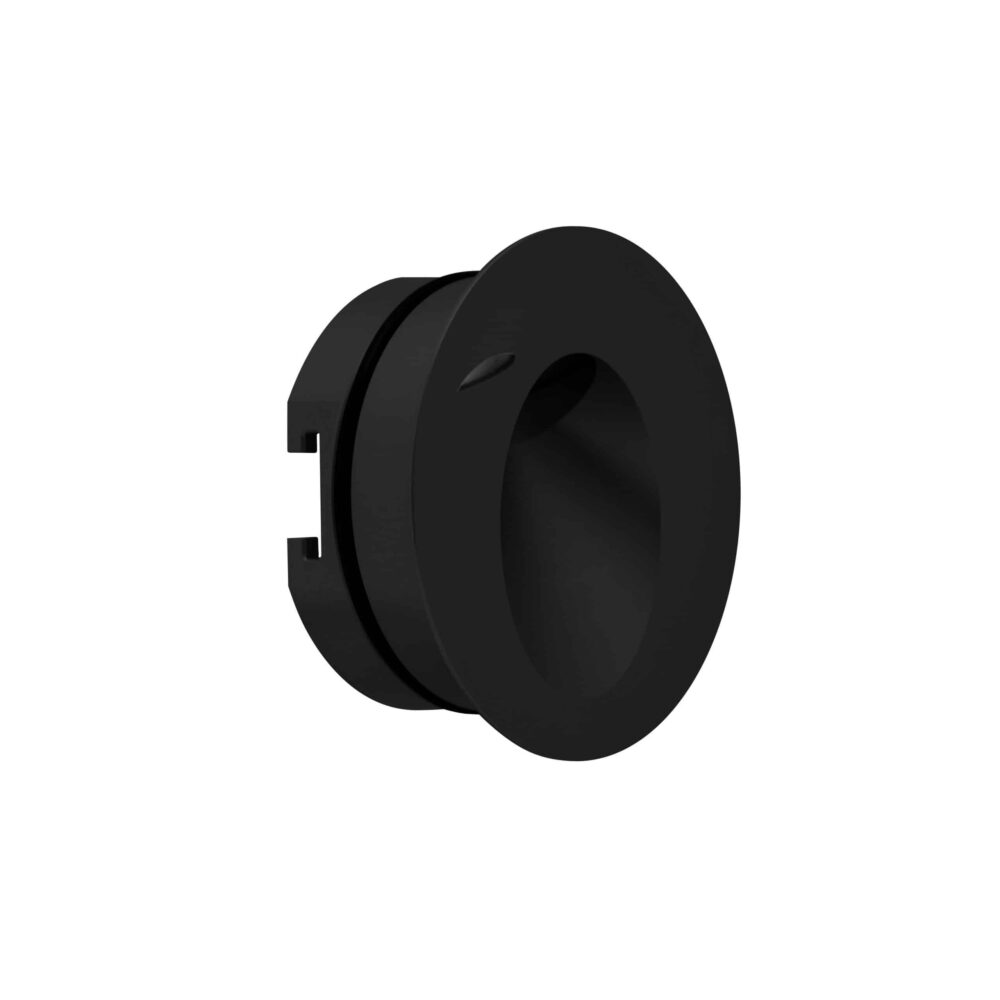

The LuxR V1 Round Recessed Downlight is a small low-voltage dimmable indoor/outdoor light. Designed for recessing low down into walls to project an asymmetrical wash across paths and steps. It combines an ultra discreet profile without glare and an IP65 ingress protection rating.
Precision machined from aluminium it is available in natural in E-Coat matte powdercoat colours (see spec sheet additional colour options).
The Cree 1 watt/2 watt LED can be easily replaced if required or substituted for a colour LED.
This product can be specified with a LuxR canister accessory: https://hunzalighting.com/products/v1-round-pvc-canister/
Micro Recessed Canister: OD=Ø69mm, ID=Ø63mm, Length=126mm
Specifications
| LED Chip | Push mounted 1W 3Vf Cree XPG-3 LED |
|---|---|
| Luminaire Output* | 80 lm @ 350 mA (1 W) Delivered |
| Lumens Per Watt* | 80 lm/W Delivered |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) | 90+ Standard |
| Ingress Protection | IP65 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards | CE |
Documents
Specifications / Data Sheets

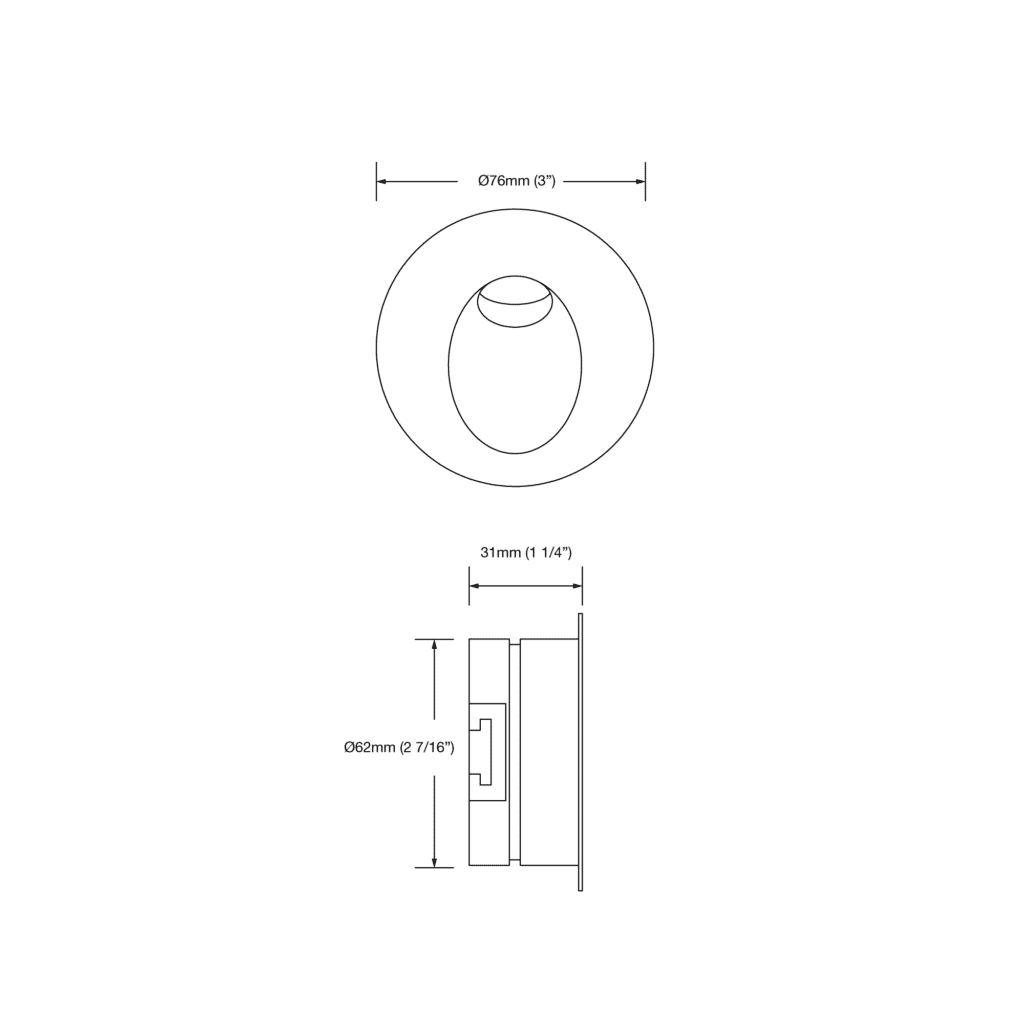

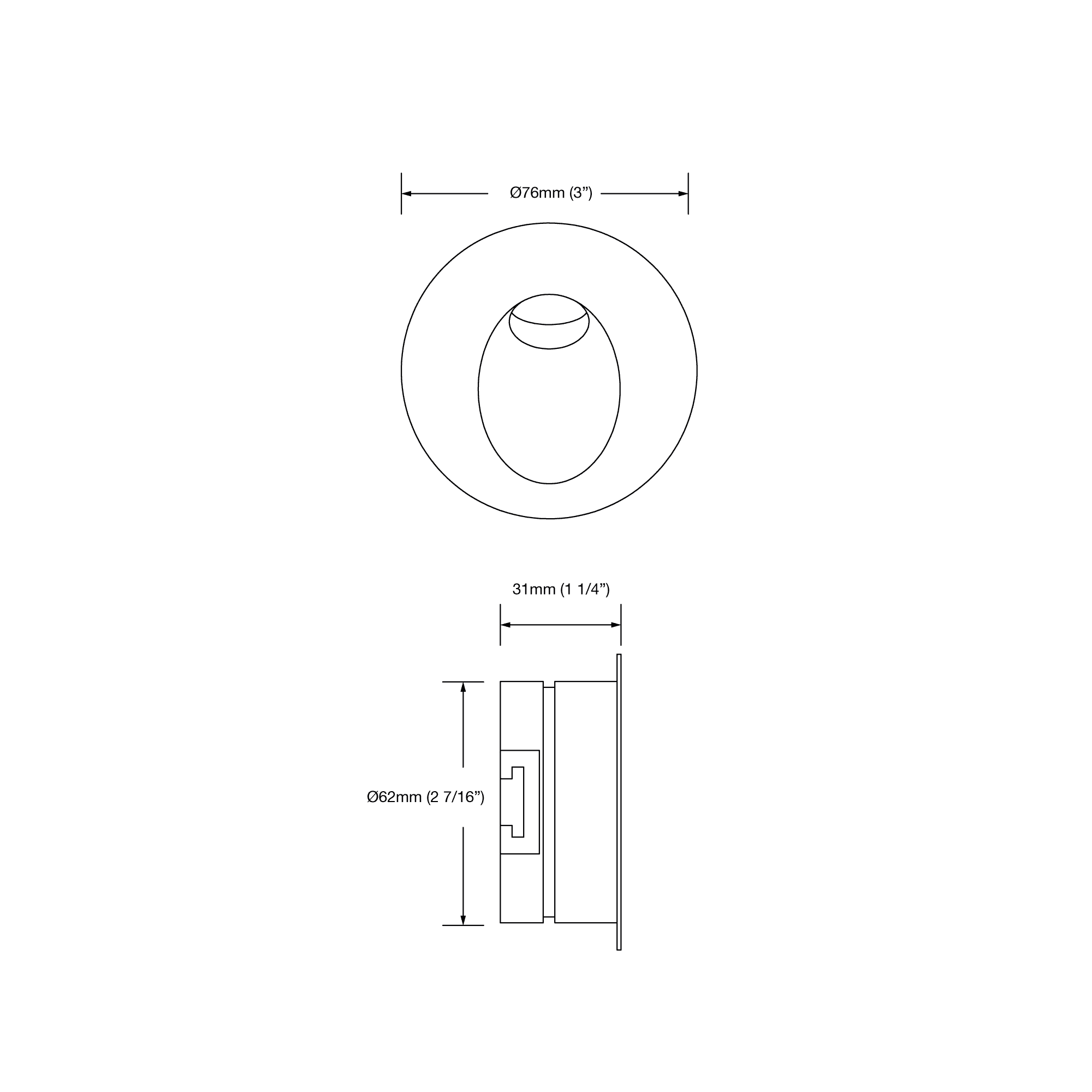

Product Diagrams
Installation Instructions
Photometric Files
Other Files
