Arch Wall Square
SKUW/ARCSQ

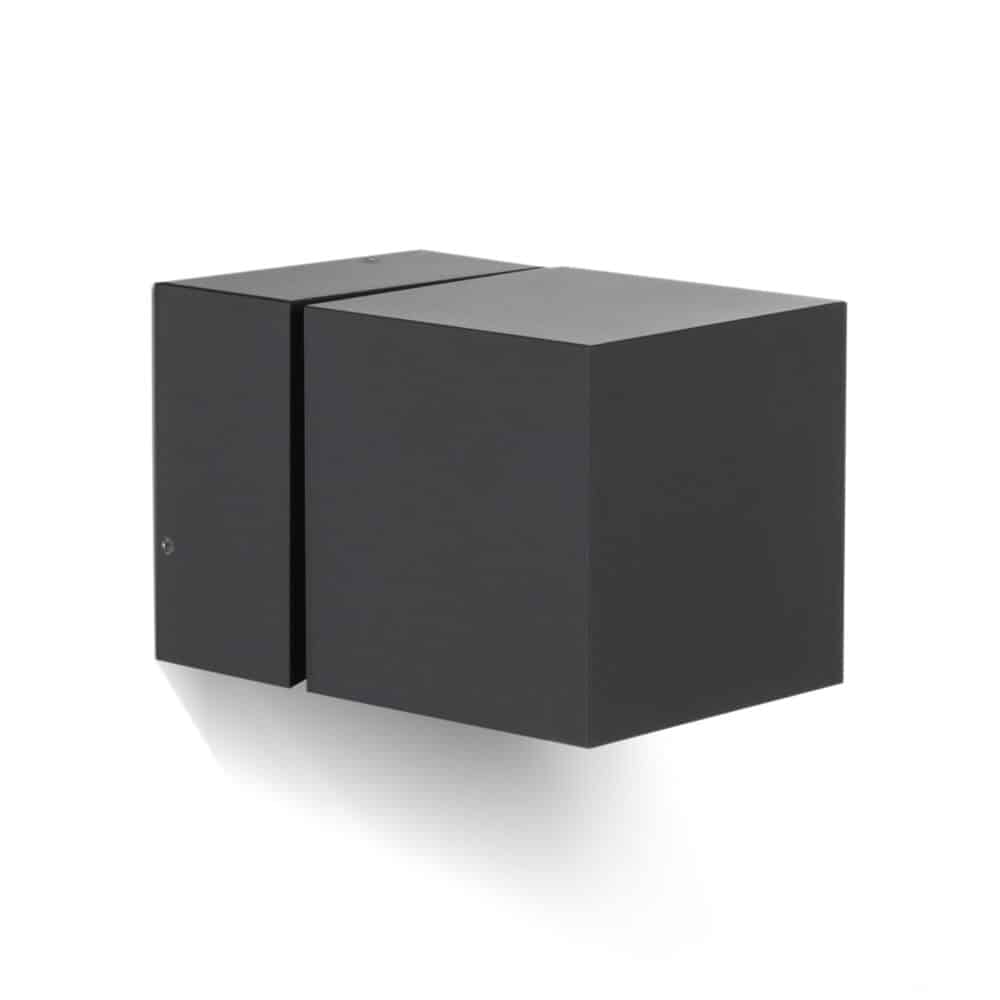

The Arch Wall Square is a unique Wall mounted luminaire, It has a minimal, contemporary aesthetic that will blend into any architectural setting. It features 3 possible optic combinations: 90 degree symmetrical, a type II for a very long but narrow downwards illumination for lighting path and perimeter applications, and an IV optic with further forward throw.
Also available as a DarkSky Approved version.
Specifications
| LED Chip | Cree® CXB 1830 Plug and Play field replaceable LED board |
|---|---|
| Luminaire Output* | 3,000 lm @ 700 mA (26 W) Delivered |
| Lumens Per Watt* | 115 lm/W Delivered |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) |
|
| Ingress Protection | IP66 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards |
|
Documents
Specifications / Data Sheets

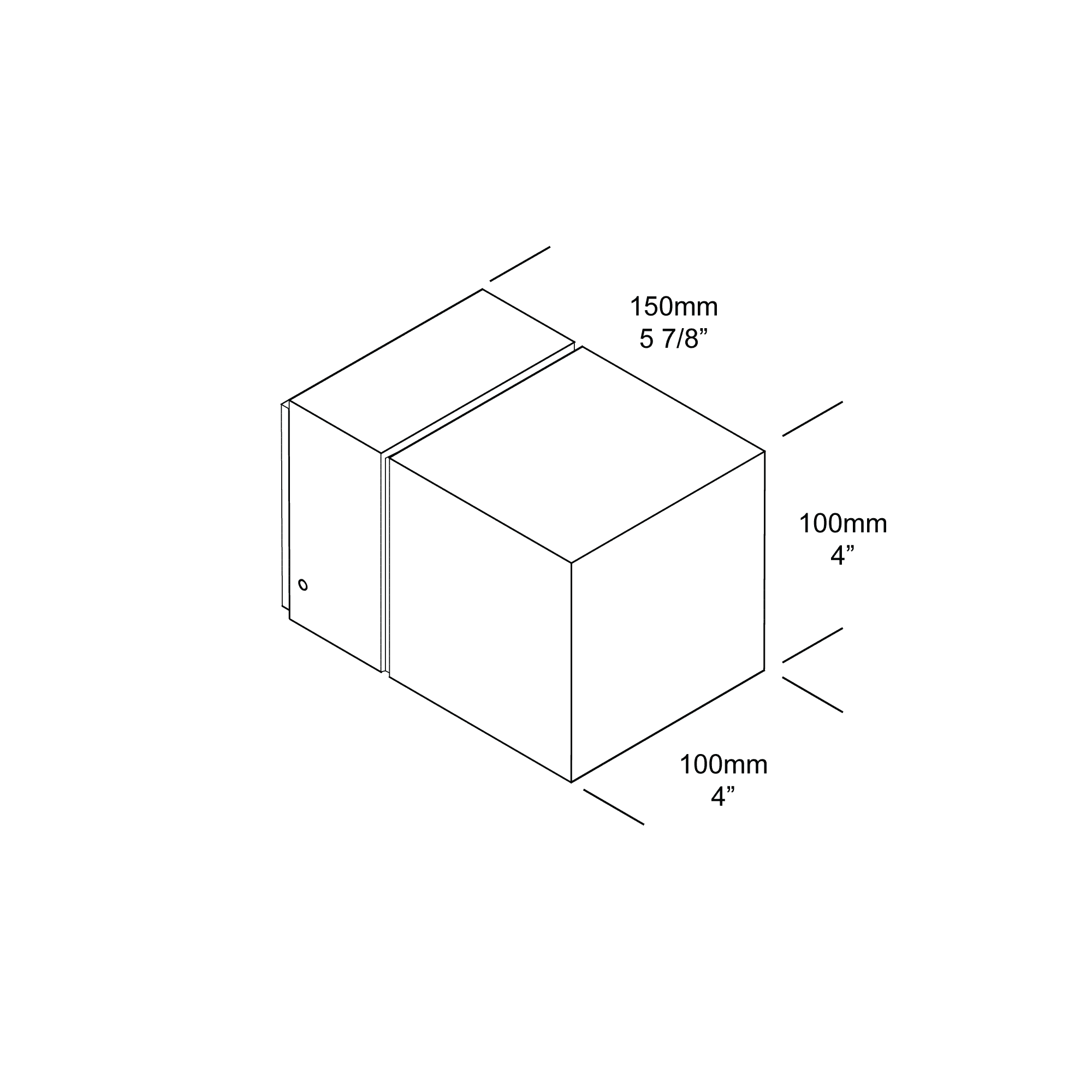

Product Diagrams
Installation Instructions
Hunza Arch Wall Square - W-ARCSQ - Installation Instructions International
1 file(s) 562.66 KB
Photometric Files
