Brick Light
- Direct Mount
- Recessed Canister
- Surface Mount
SKUBRK/L

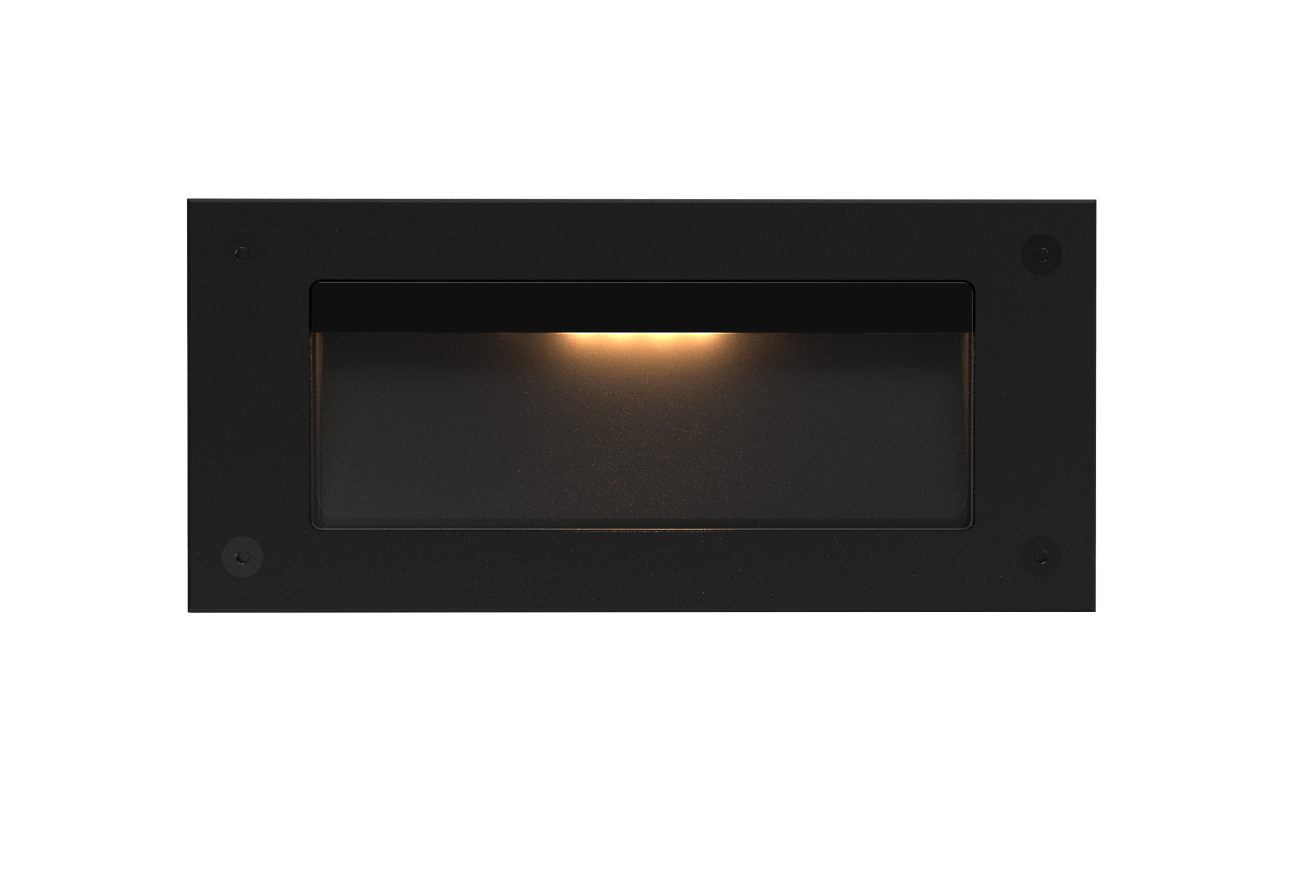

The Brick Light has been designed for low-level, wall-mounted, path and walkway illumination.

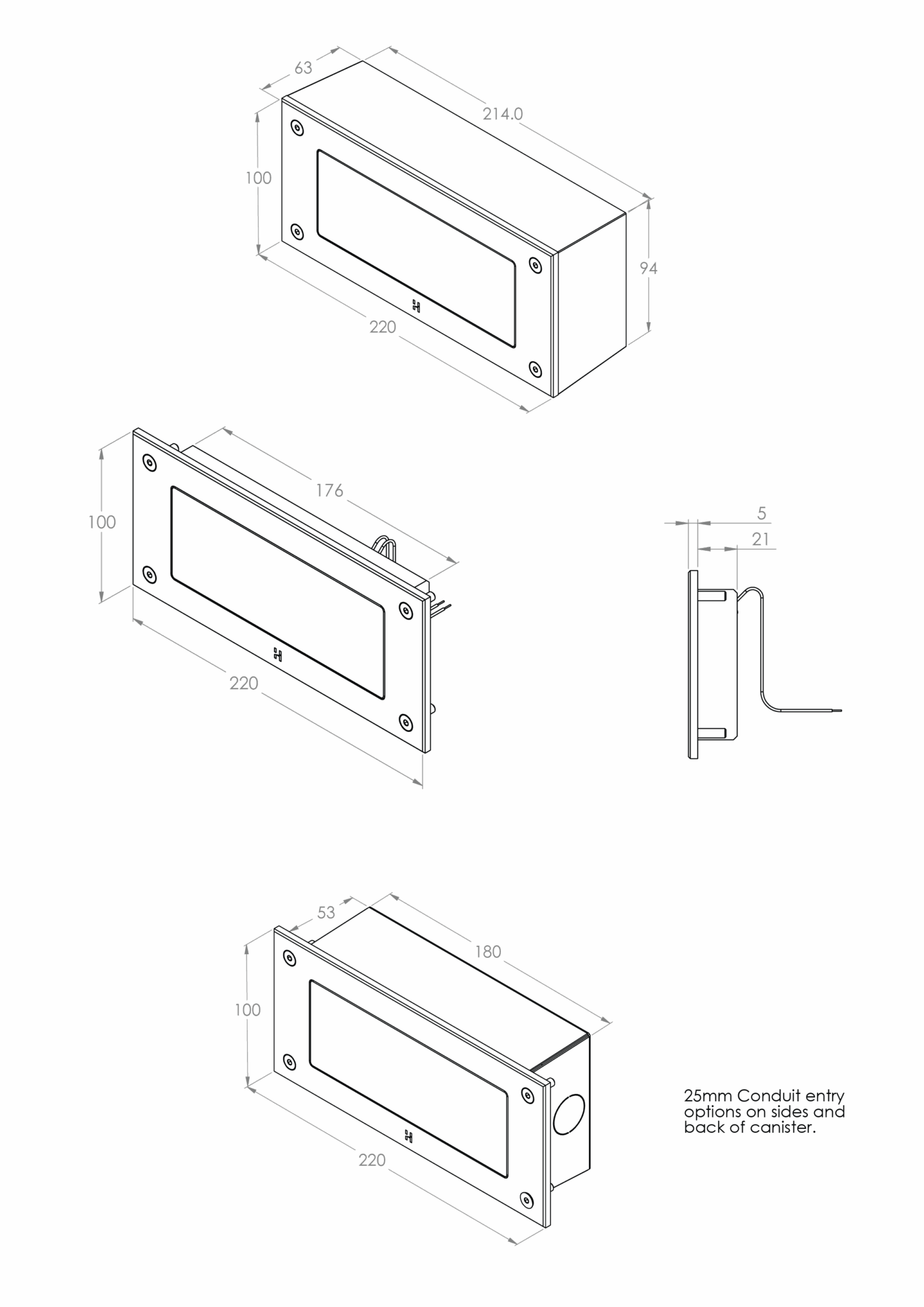

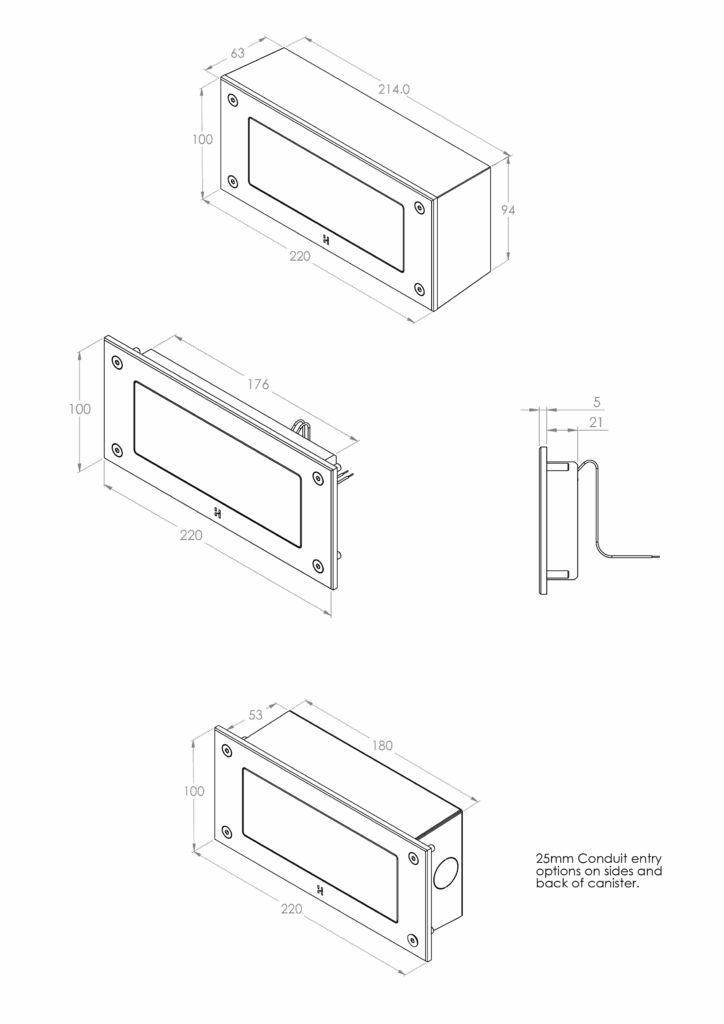

Mounting options include a Recessed Canister, a Surface Mount Canister, or the luminaire can be installed directly into an appropriately sized niche.
The Brick Light offers three high-quality, durable faceplate/flange material options: Powder Coated Aluminium, Solid Bronze, and 316 Stainless Steel.
Custom faceplate/flange sizes are available to fit your brief.
Note: Fixtures must not be pressure washed (water blasted).
Specifications
| LED Chip | Cree XHP-50 x4 Plug and Play field replaceable LED |
|---|---|
| Luminaire Output* | 260 lm @ 350 mA (8.4 W) Delivered from the luminaire with an unobstructed beam. |
| Lumens Per Watt* | 31 lm/W Delivered from the luminaire with an unobstructed beam. |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) | 90+ Standard |
| Ingress Protection | IP66 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards | - |
Documents
Specifications / Data Sheets
Product Diagrams
Installation Instructions
Photometric Files
