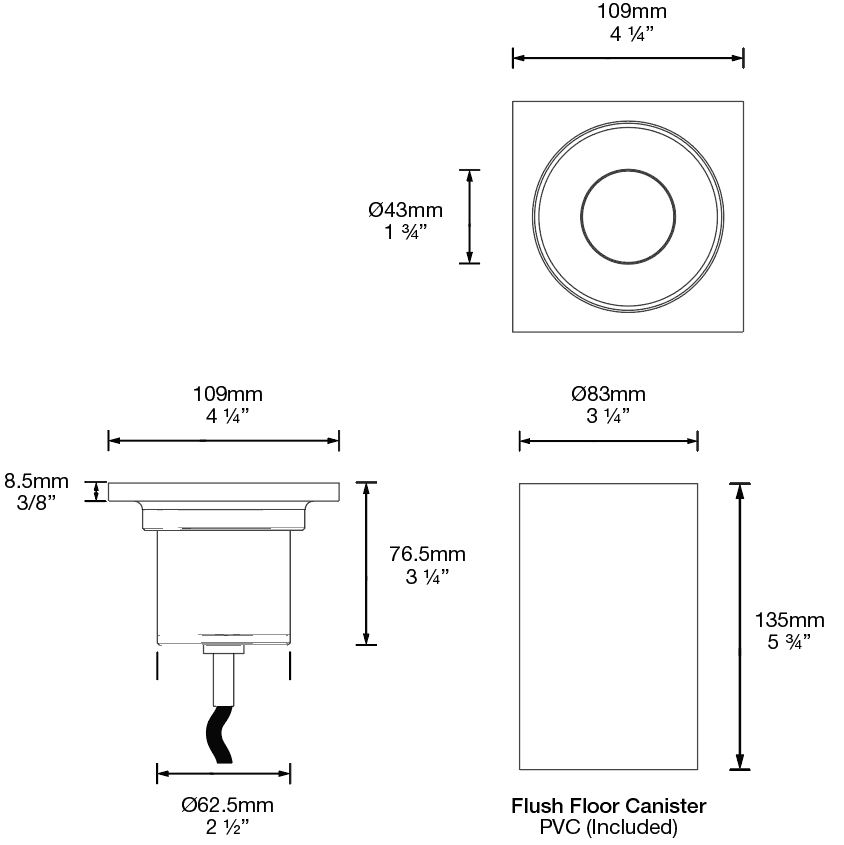

Product Diagram

Product Specifications

CRI	90+ Standard
Ingress Protection	IP67
Warranty	316 Stainless Steel Components - 10 years Electronics - 5 Years Solid Copper Components - 10 Years Excludes third party lamps and power supplies.
Lumen Output	600 lumens @ 1050 (6 Watts) 420 lumens @ 700 (4 Watts) 240 lumens @ 350 (2 Watts) Delivered from the Luminaire with an unobstructed beam.
Lumens per Watt	100 lm/W Delivered from the Luminaire with an unobstructed beam.
Lens Options	with Clear Lens with Frosted Lens
LED	Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
Standards	CE IEC/BS/AS/NZ 60598 UL 2108 UL 1838
Recommended Power Supplies	Constant Current Driver REQUIRED for Series Wired ( CC format ) 24VDC Power Supply REQUIRED for 24VDC Parallel Wired ( CV format ) TRANSFORMER REQUIRED for 12VAC Parallel Wired ( CV format )

Hunza® Flush Floor Light Square

Name: Flush Floor Light Square
SKU: FFLSQ/L

FFLSQ/L

The Flush Floor Light Square has been designed to mount flush with the level of a pathway, hotel floor or building foyer. The flush fit lens stops water pooling and depositing dirt on the lens. There is no lip to trip over and the luminaire can be driven over or walked upon without being damaged. The canister is included for easy installation.

Note: Fixtures must not be pressure washed (water blasted).
