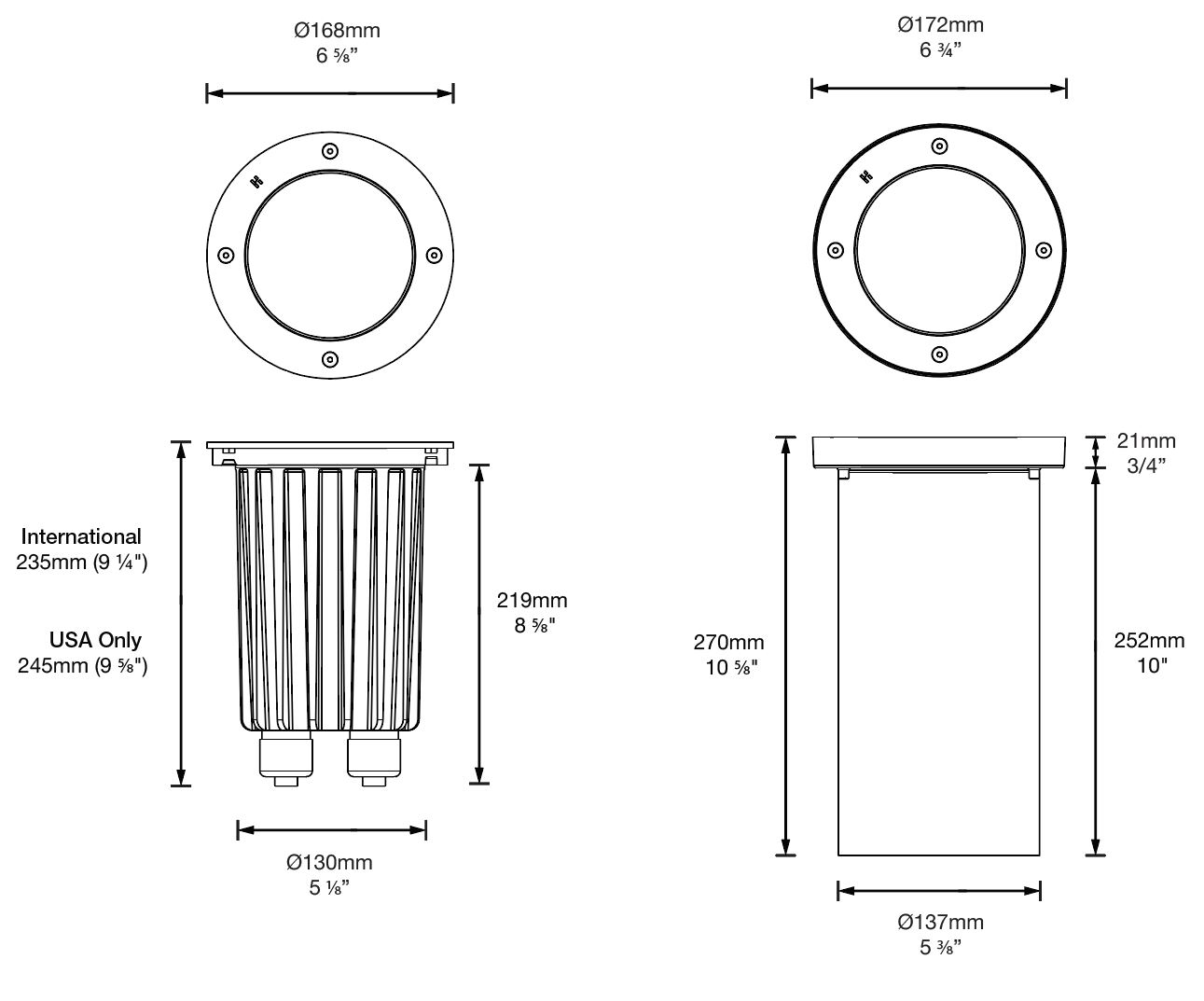

Product Diagram

Product Specifications

CRI	80 Optional 90+ Standard
Ingress Protection	IP68 *not for use in pool or ponds
Impact Protection	IK10
Warranty	316 Stainless Steel Components - 10 years Aluminium Components - 5 years Electronics - 5 Years Solid Bronze Components - 10 Years Solid Bronze Components - 10 Years Excludes third party lamps and power supplies.
Lumen Output	2700 lumens @ 700 (25 Watts) Delivered from the Luminaire with an unobstructed beam.
Lumens per Watt	100 lm/W Delivered from the Luminaire with an unobstructed beam.
Lens Options	with Clear Lens with SafeTouch 100 Anti Slip Lens with SafeTouch 100 Frosted Lens with SafeTouch 100 Hex Cell Louvre
LED	Cree® CXB 1830 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
Standards	CE IEC/BS/AS/NZ 60598 UL 1598 UL 2108 UL 1838
Recommended Power Supplies	DRIVER SUPPLIED for Series Remote Wired (CC format) 24VDC Power Supply REQUIRED for 24VDC Parallel Wired ( CV format ) NO DRIVER REQUIRED for Retro™ ‘R’ ( 120/240V Input )

Hunza® SafeTouch 100

Name: SafeTouch 100
SKU: ST100

ST100

The SafeTouch 100 in-ground luminaire has been specifically designed with ultimate public safety as its primary objective. It produces high-output optically pure light, but operates with cool lens temperatures, low energy consumption and minimal maintenance. It has a fully adjustable gimbal allowing 360 rotation and 0-20 elevation. This luminaire is extremely tough, durable and waterproof, making it ideal for installation in public spaces, large-scale projects and residential areas.

Attention: Hunza strongly suggests, before selecting this in-ground fixture, that consideration is given to ground conditions. i.e. whether fertilizer is being used, or there is high soil acidity, salt content, etc. If there is the possibility that these conditions exist, then please specify your fixture with a Solid Bronze body.

Note: Fixtures must not be pressure washed (water blasted).
