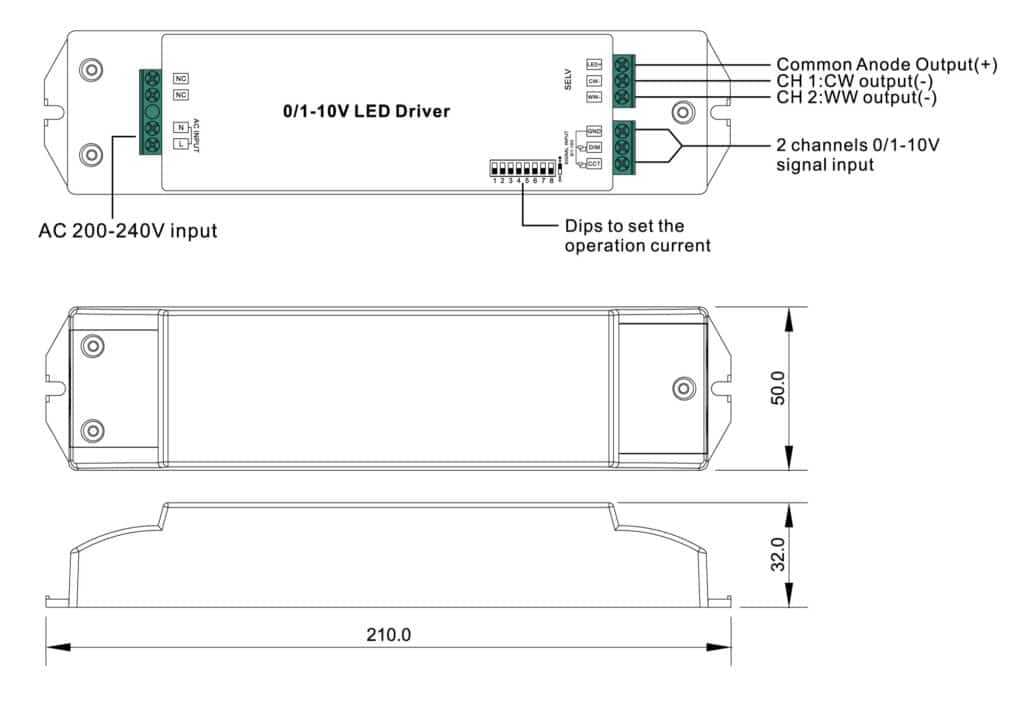

Product Diagram
Product Specifications
| Ingress Protection | IP20 |
|---|---|
| Warranty |
Third Party Warranty* Excludes third party lamps and power supplies.
|
| Driver Type | Constant Current 2 Channel |
| Dimming | 1-10V Dimming |
| Output Voltage | 5-48V |
| Output Current | 250-1500mA |
| Output Power (W) | 75W |
| Input Voltage | 100-277VAC |
| Input Current | 0.9A MAX |
| Standards |
|
| Dimensions | 6.4 x 24.4 x 3.2 cm ( 2.52" x 9.61" x 1.26" ) |
SUNRICHER 1-10V Tunable White 2 Channel – Constant Current Driver – 75W
SRP-2007-75CCT
The SRP-2007-75CCT is an UL and ENEC approved dimmable 75W LED driver with 1-10V interface and 2 channel constant current output. It is designed for controlling tunable white LED lighting, and a multi current option is selectable from 250mA to 1500mA by DIP switches.
- Dimmable LED driver, max. output 75W.
- 2 channels constant current output,250mA – 1500mA adjustable by DIP switches.
- Tunable white control.
- Class II power supply, full isolated plastic case.
- Rubycon capacitors.
- Built-in active PFC function.
- High power factor and efficiency, PF > 0.9, Efficiency > 87%.
- IP20 rating
Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.
