V1
- In-ground & Recessed
SKUV1
The V1 is a low-voltage dimmable recessed luminaire for walls, soffits and step risers. It is supplied with coil springs, leaf springs, or leaf springs and a canister, so it can be fitted into plasterboard, timber or a prepared opening.
Machined in powdercoated aluminium, the luminaire achieves IP65 water ingress rating. The push mounted 1 watt 3Vf Cree XPG-3 LED is field replaceable.
Power supply chart available for download here: https://luxrled.com/product/micro-m1-v1-power-supply-charts
Specifications
| LED Chip | Push mounted 1W 3Vf Cree XPG-3 LED |
|---|---|
| Luminaire Output* | 80 lm @ 350 mA (1 W) Delivered from the luminaire with an unobstructed beam. |
| Lumens Per Watt* | 80 lm/W Delivered from the luminaire with an unobstructed beam. |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) | 90+ Standard |
| Ingress Protection | IP65 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards | - |
Documents
Specifications / Data Sheets

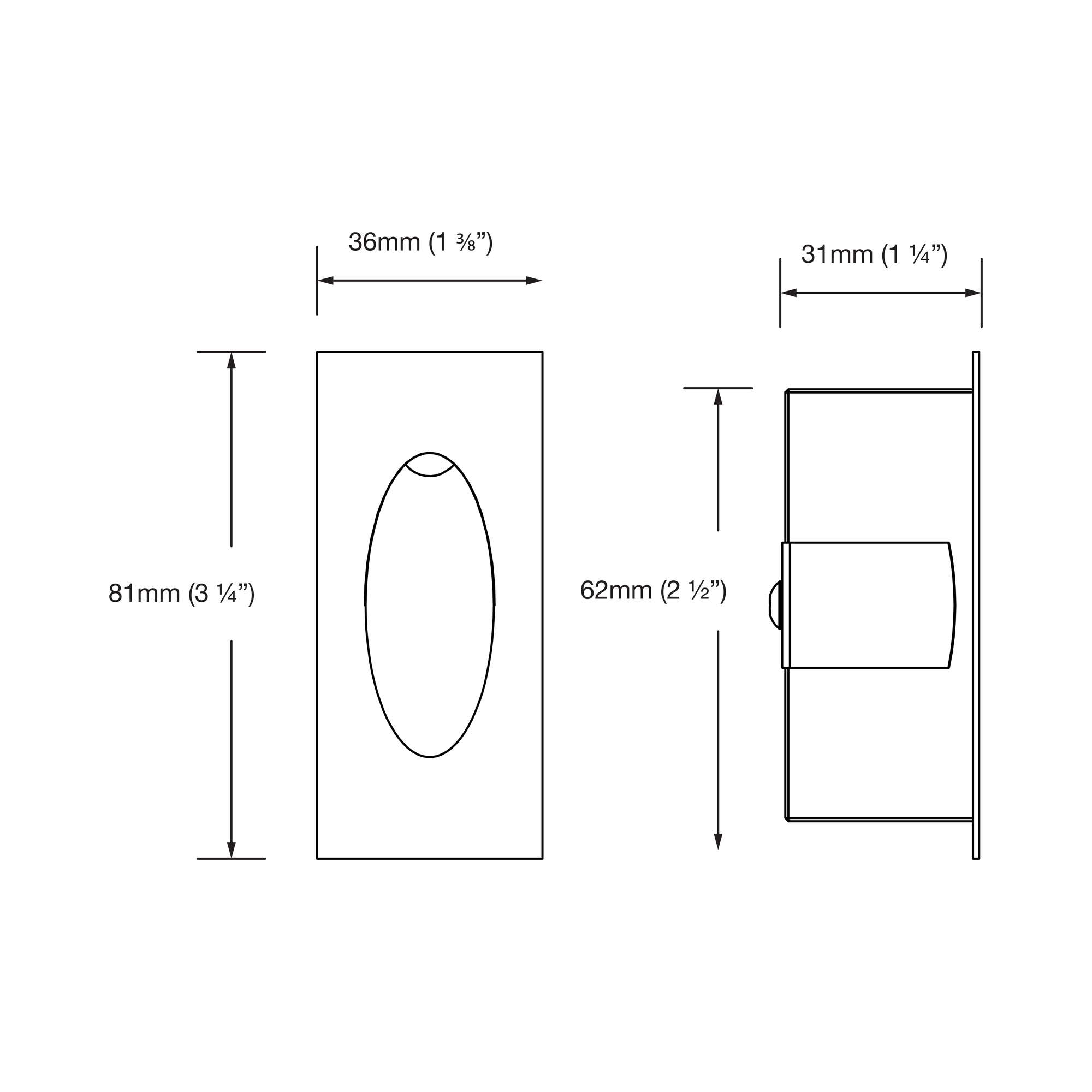

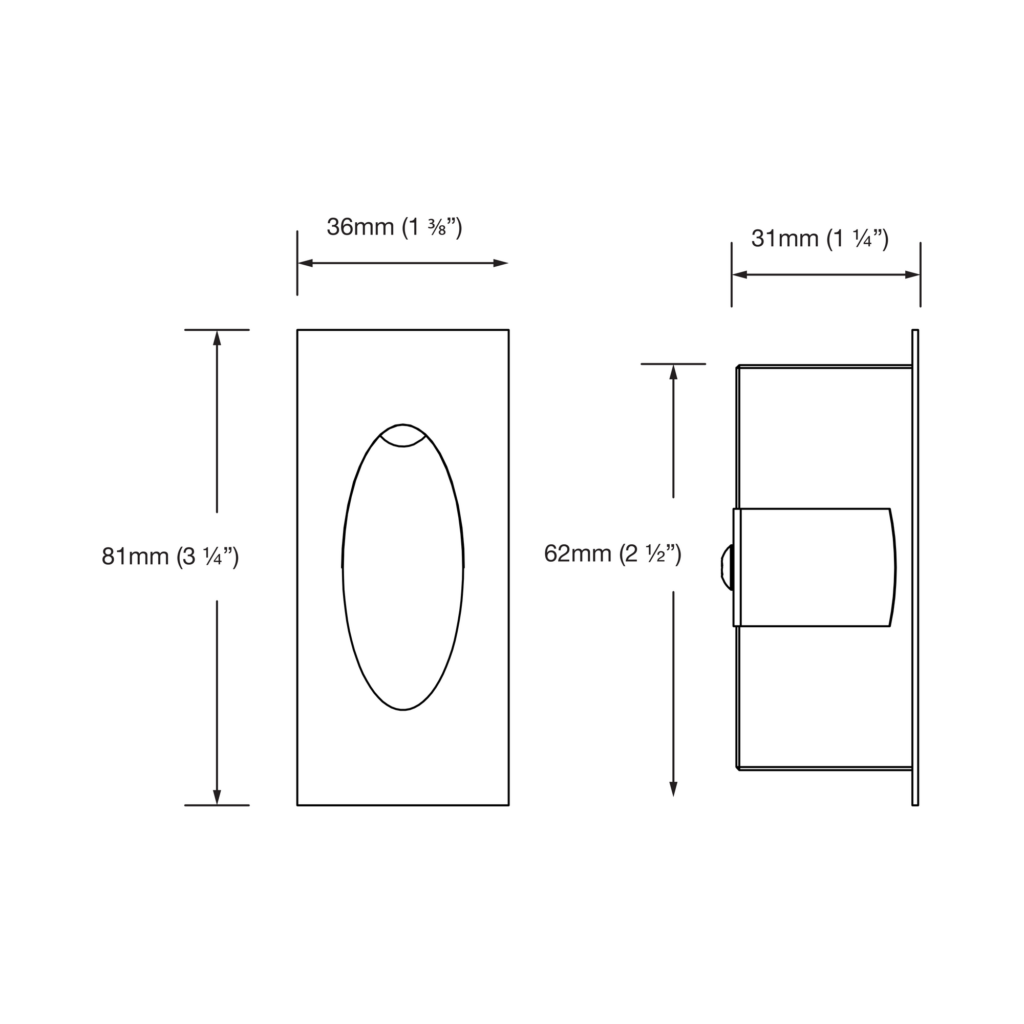

Product Diagrams
Installation Instructions
