Euro Step Light Solid Eyelid
SKUESLS/L
The Euro Step Light Solid Eyelid is an extra compact luminaire, designed for step lighting applications where the fixture needs to be unobtrusive or concealed. The eyelid masks two thirds of the light, which eliminates all upward light.
Specifications
| LED Chip | Cree® XHP-50-2 Plug and Play field replaceable LED board |
|---|---|
| Luminaire Output* | 420 lm @ 700 mA (4 W) 240 lm @ 350 mA (2 W) Delivered from the luminaire with an unobstructed beam. |
| Lumens Per Watt* | 105 lm/W 120 lm/W Delivered from the luminaire with an unobstructed beam. |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) | 90+ Standard |
| Ingress Protection | IP67 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards |
|
Documents
Specifications / Data Sheets

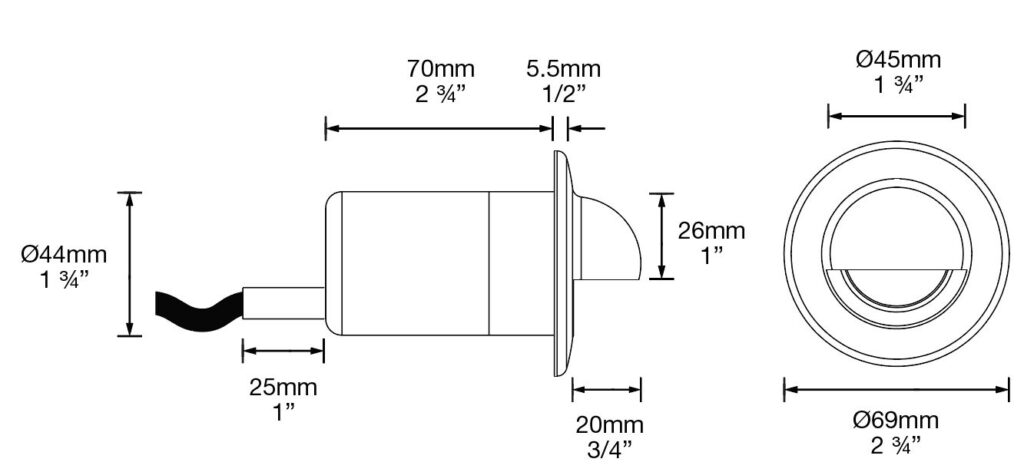

Product Diagrams
Installation Instructions
Photometric Files
