Micro Spike Diamond
SKUMM-SD180
The LuxR Micro Diamond 180° is a miniature low-voltage dimmable outdoor uplight, with a 150mm spike for installing into soil. Illumination is directed in a 180° band inclined upward, ideal for illuminating shrubbery. Simply plant and orient. Ideal for planters and larger pots.

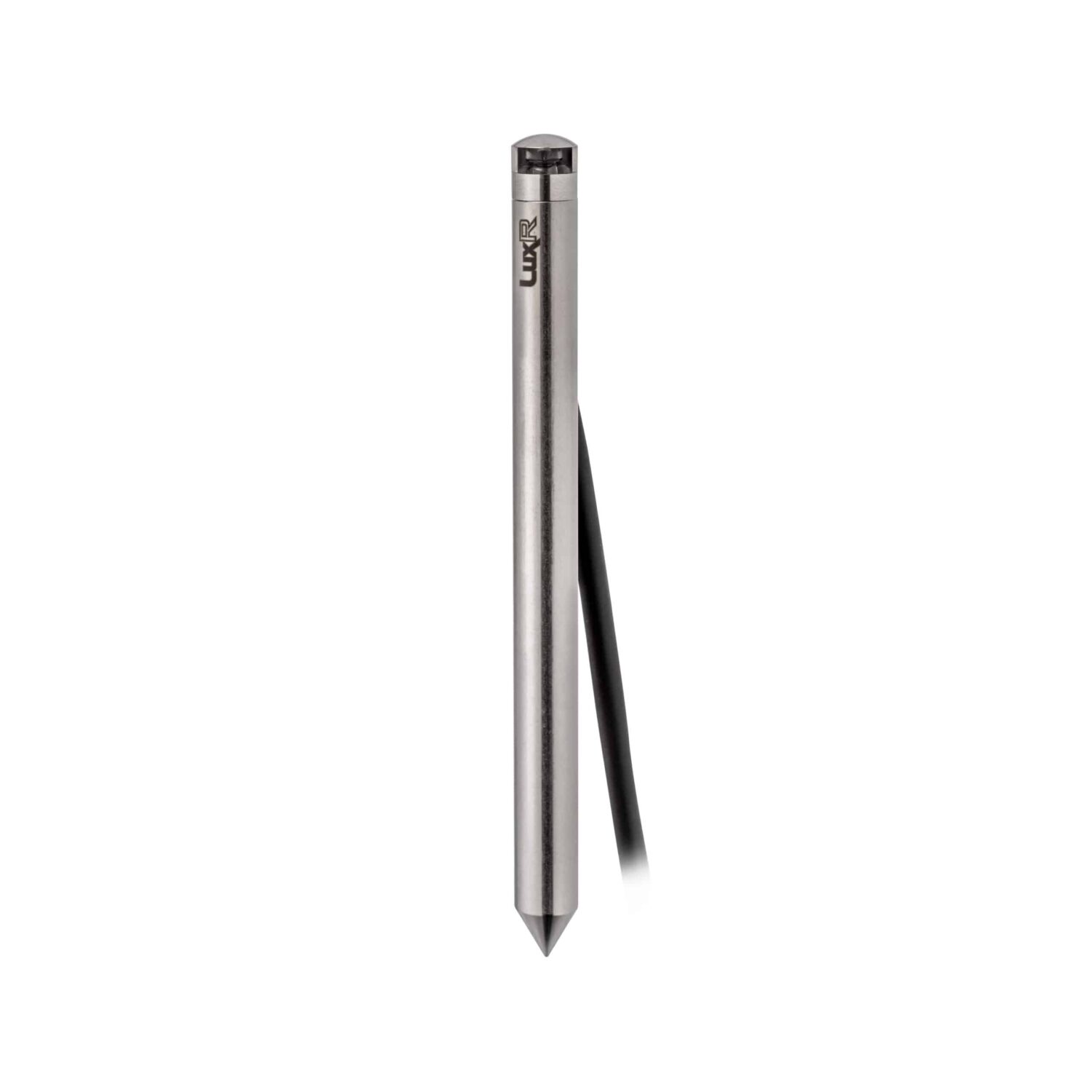

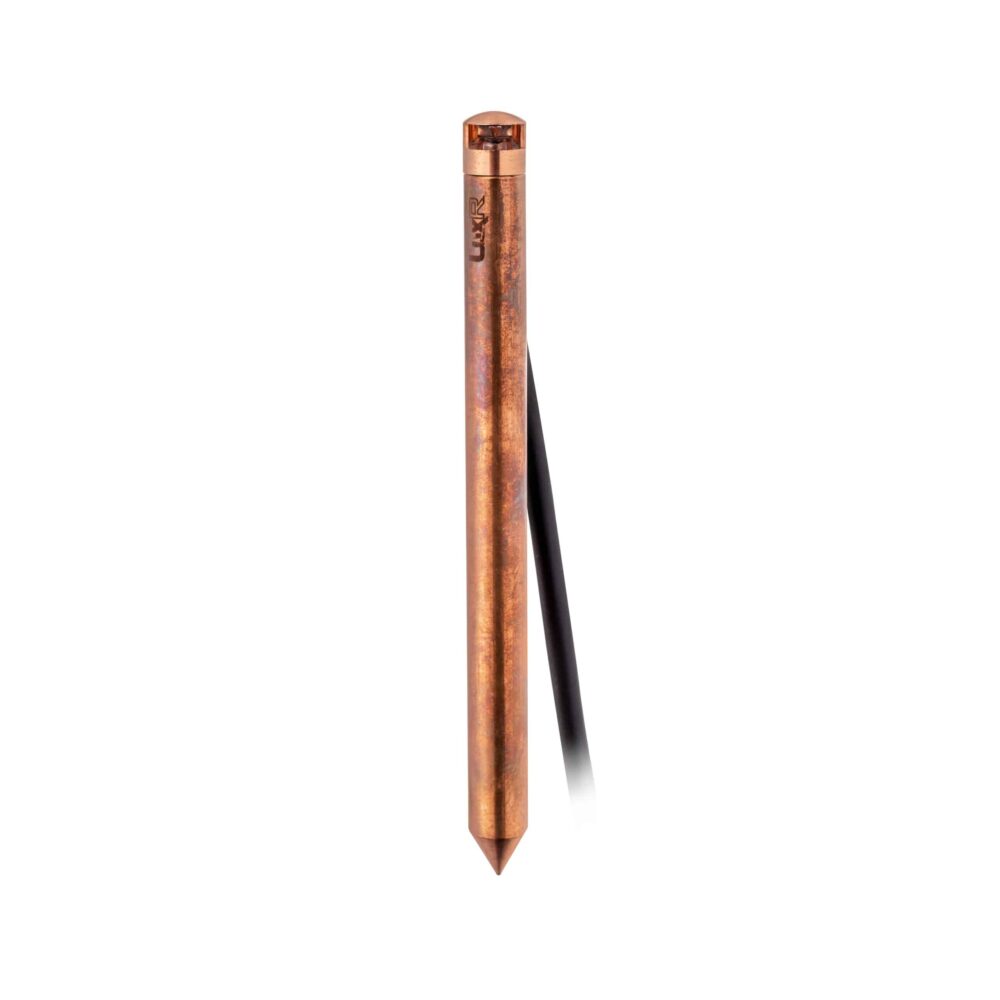

Precision machined in marine grade 316 stainless steel or from copper the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.

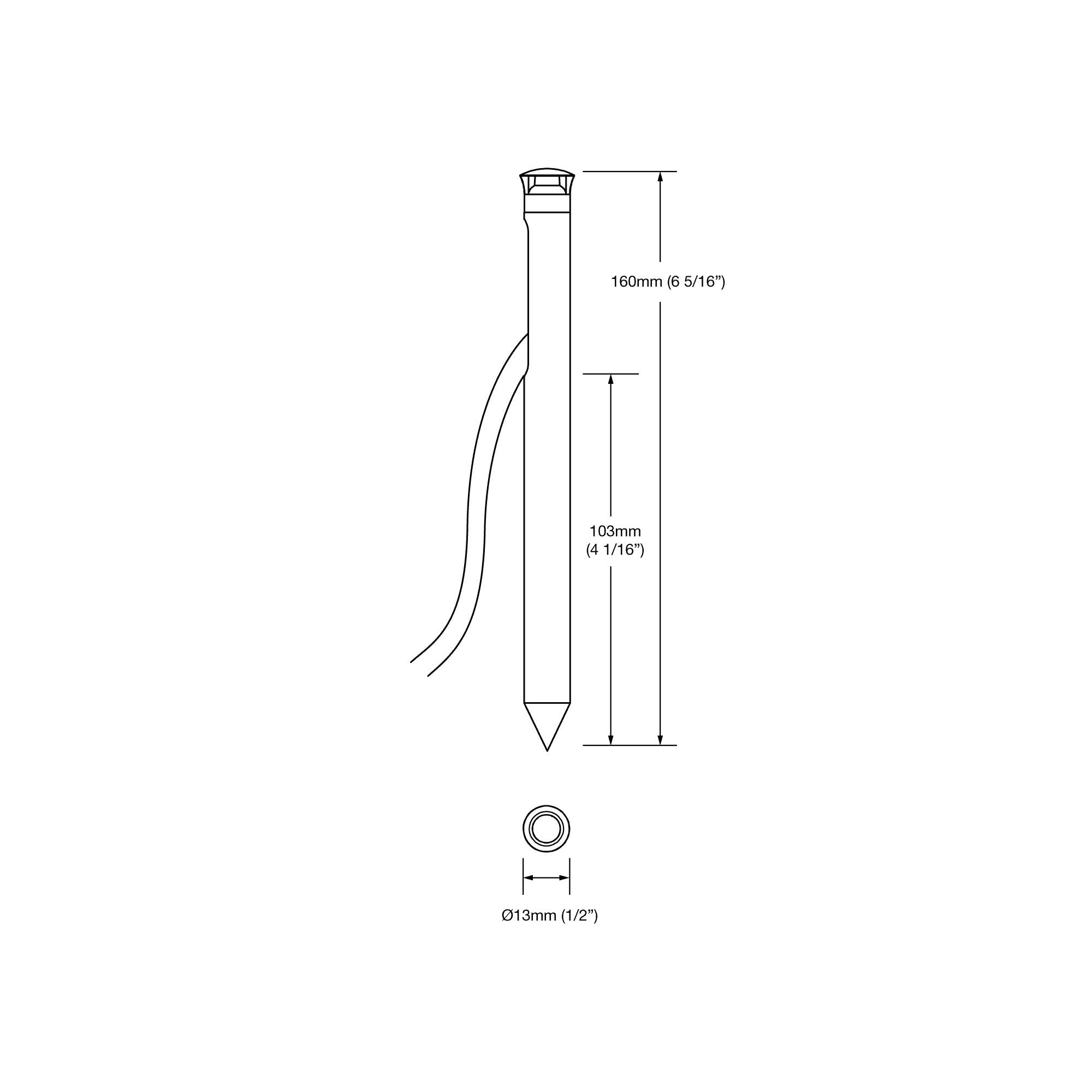

Diameter: Ø12.7mm
Length: 160mm
Why solid copper outdoor lights last
Specifications
| LED Chip | Pin mounted 1W 3Vf Cree XPG-3 LED |
|---|---|
| Luminaire Output* | 70 lm @ 350 mA (1 W) Delivered |
| Lumens Per Watt* | 70 lm/W Delivered |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) | 90+ Standard |
| Ingress Protection | IP67 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards |
|
Documents
Specifications / Data Sheets
Product Diagrams
Installation Instructions
Photometric Files
Other Files
