Modux One Spot
SKUM1-SP

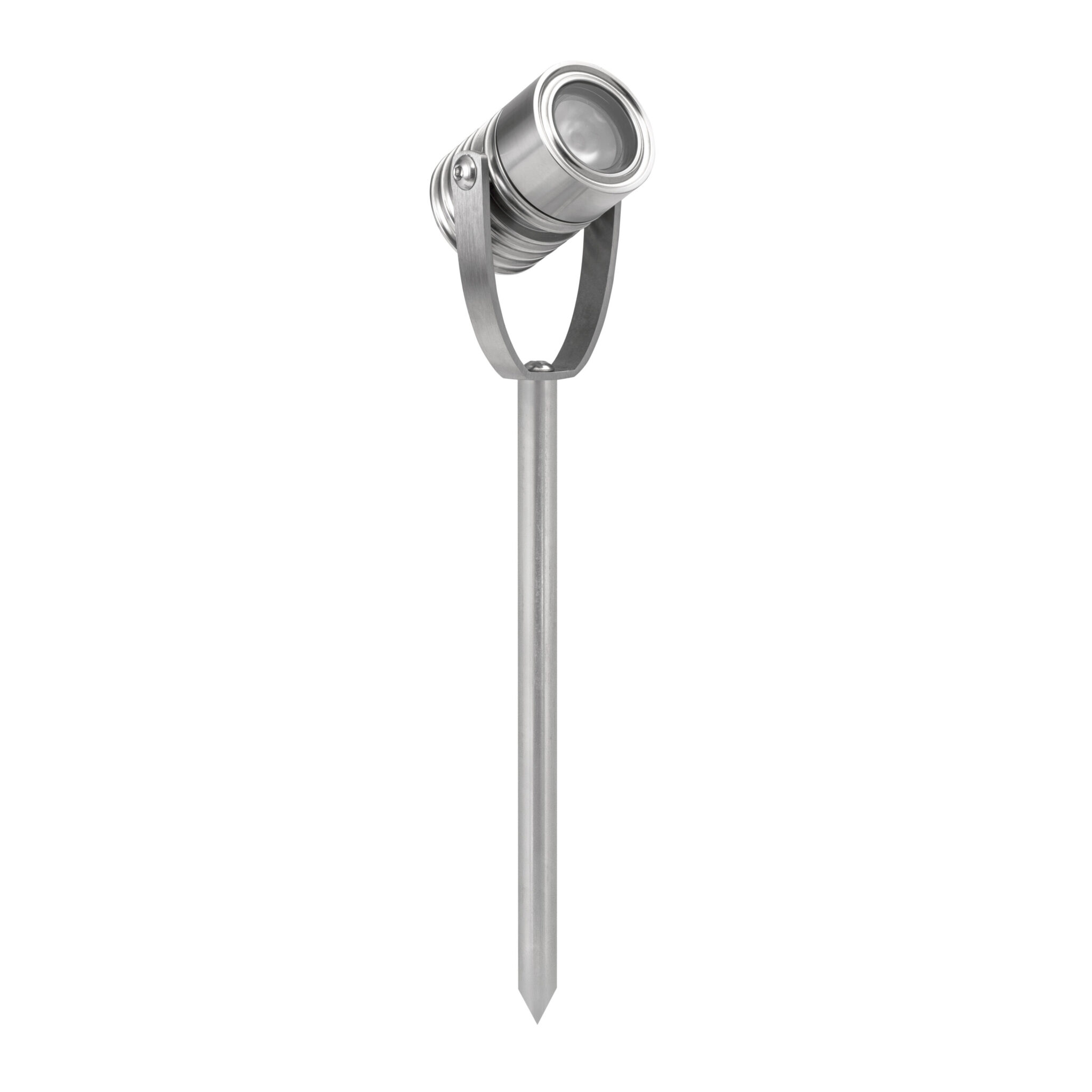

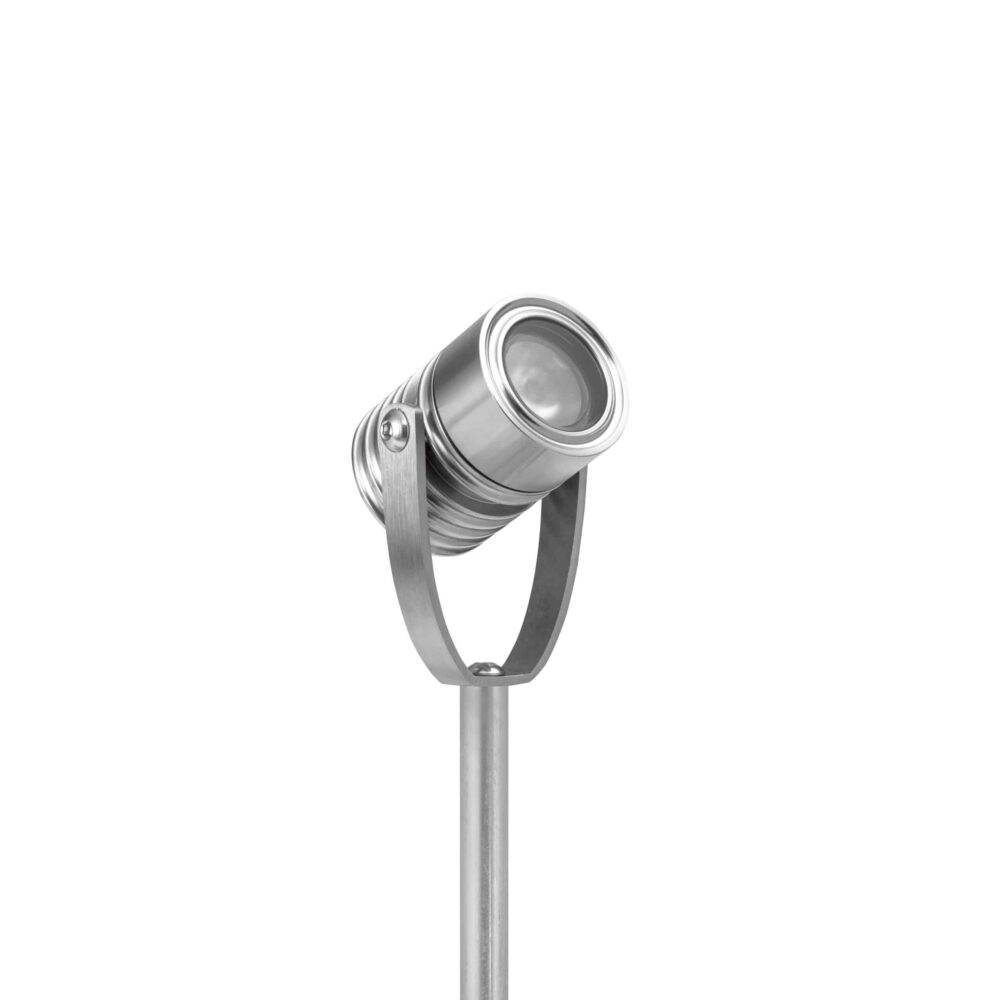

The Modux One Spike Spot is a very small low-voltage dimmable outdoor spot light with a solid metal spike for installing into garden soil. The fully adjustable spot light typically produces 80 lumens.

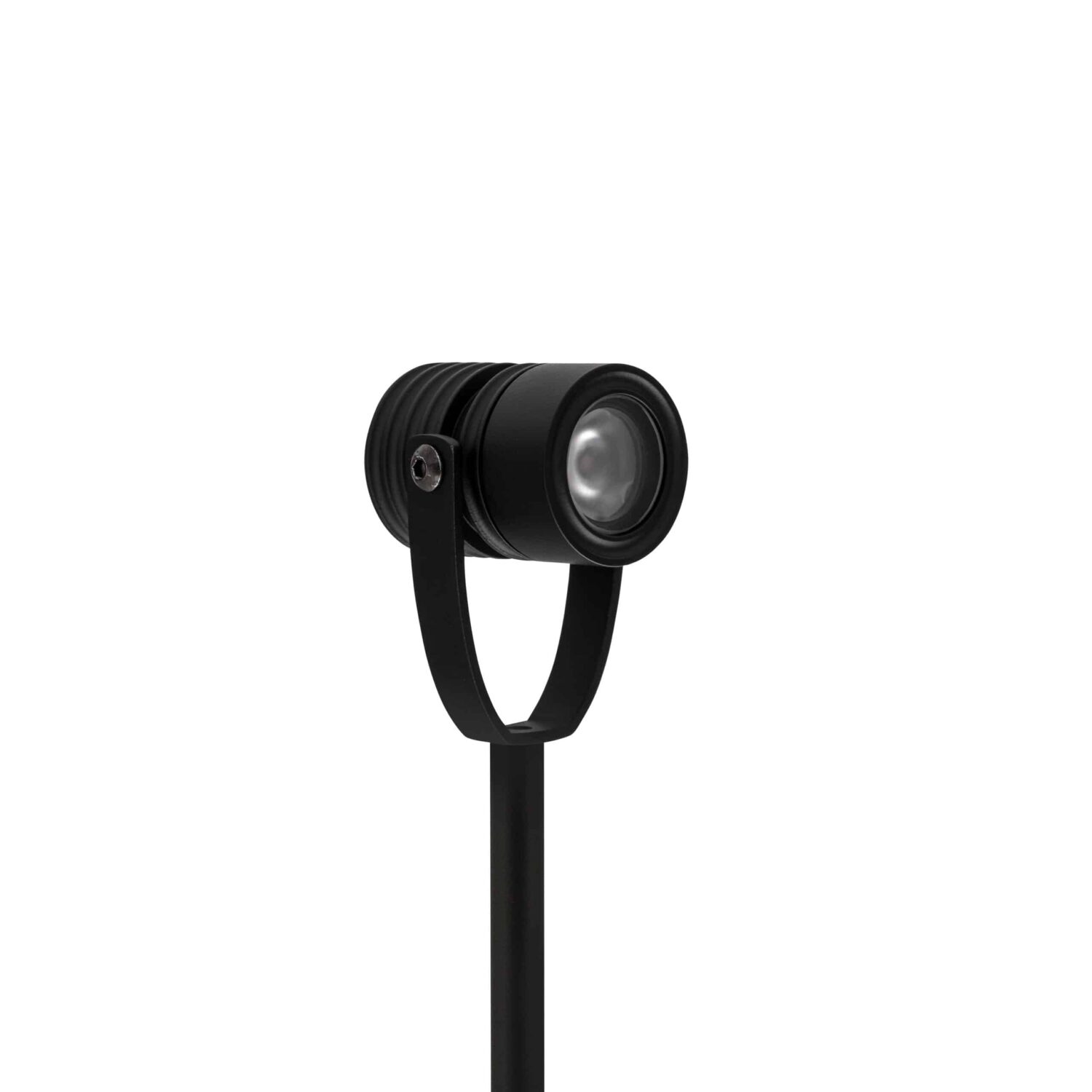

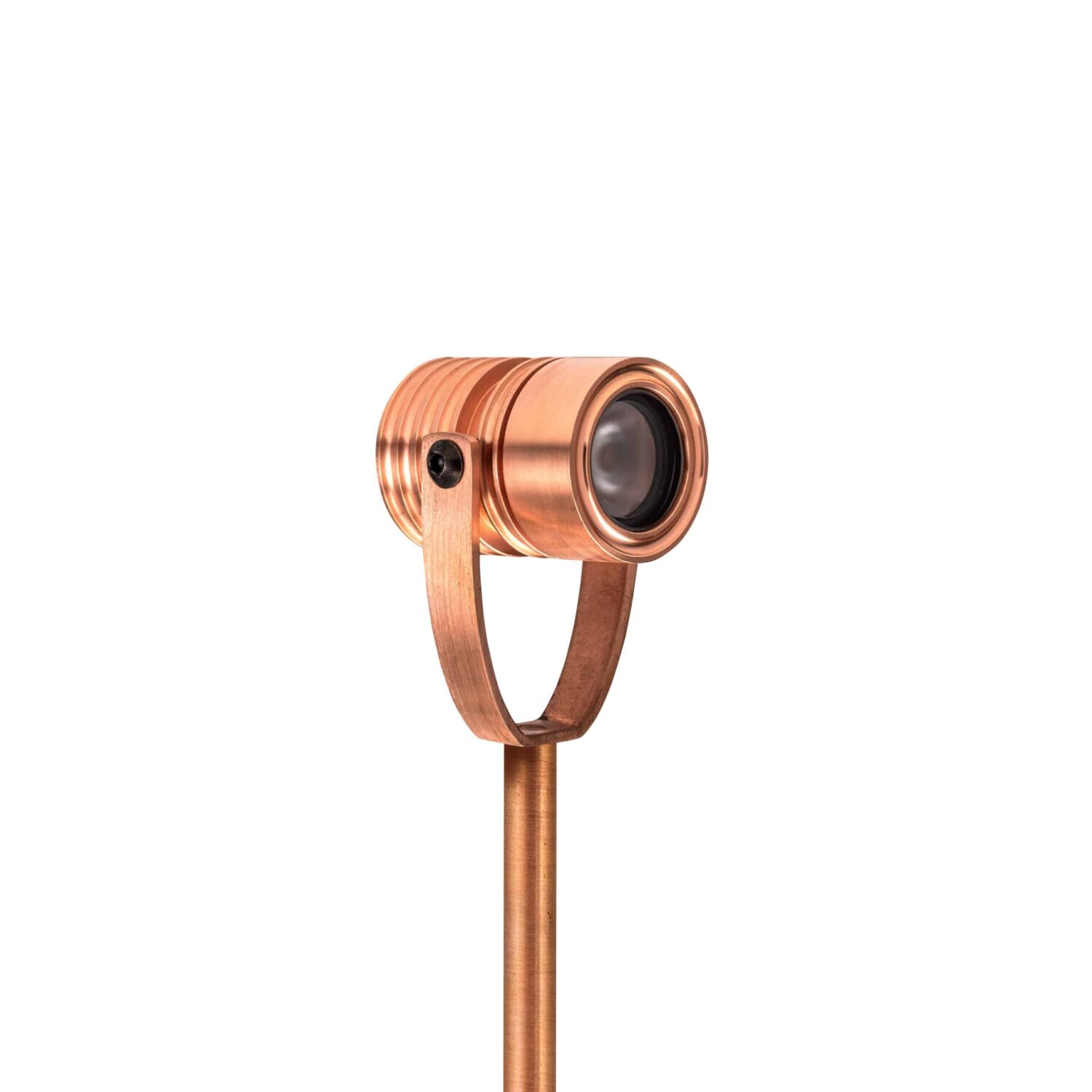

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see specifications).
Power supply chart available for download here: https://luxrled.com/product/micro-m1-v1-power-supply-charts
Why solid copper outdoor lights last
Specifications
| LED Chip | Pin mounted 1W 3Vf Cree XPG-3 LED |
|---|---|
| Luminaire Output* | 80 lm @ 350 mA (1 W) Delivered |
| Lumens Per Watt* | 80 lm/W Delivered |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) | 90+ Standard |
| Ingress Protection | IP68 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards |
|
Documents
Specifications / Data Sheets

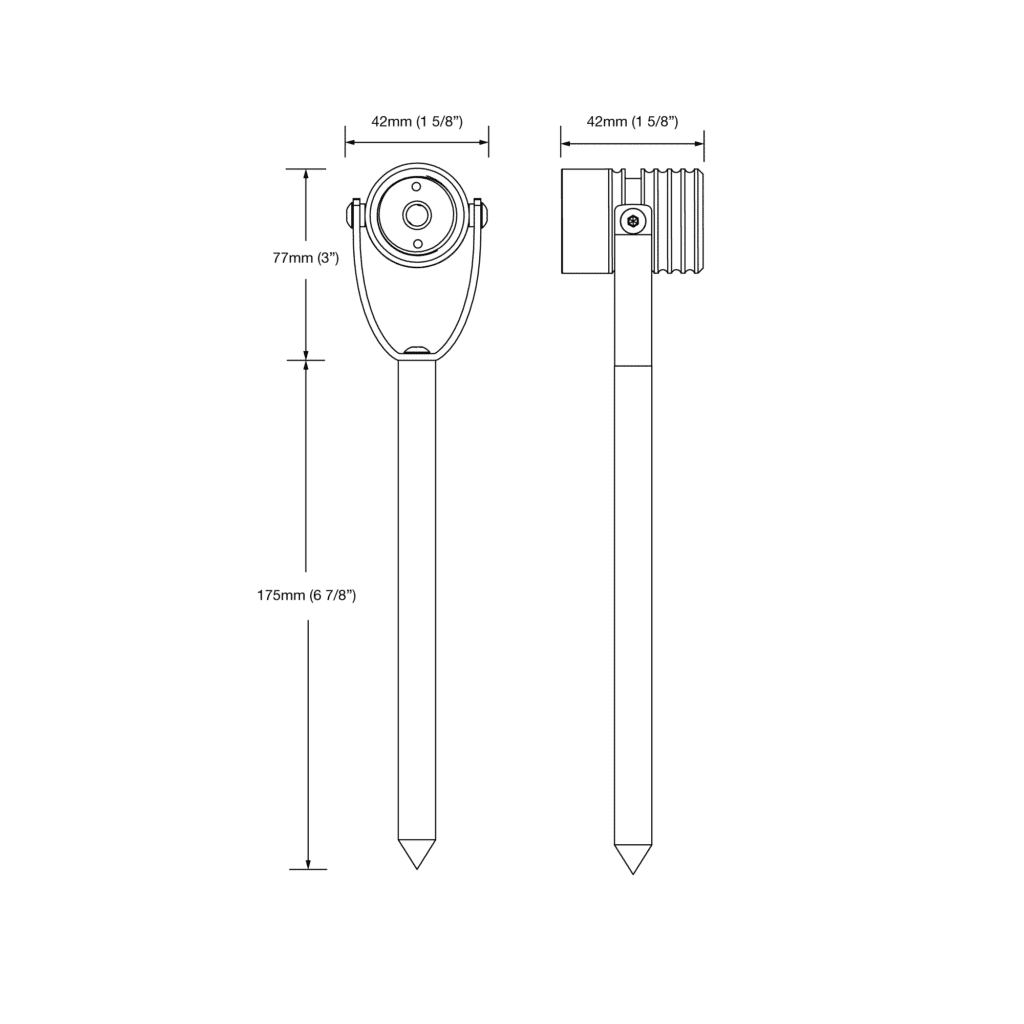

Product Diagrams
Installation Instructions
Photometric Files
