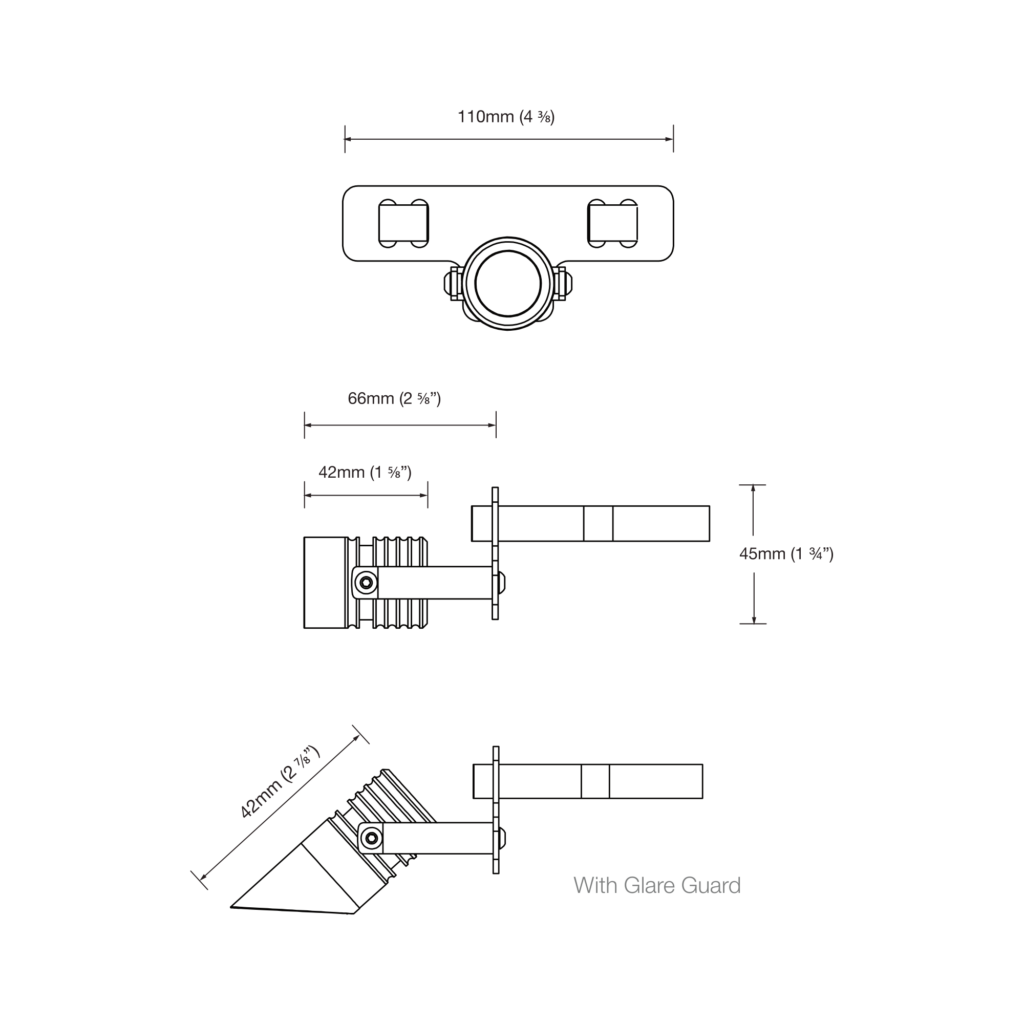

Diagram

Download diagram

Modux One Tree Mount

Tree Mount

SKUM1-SP TM

The Modux One Tree Mount is a low-voltage dimmable outdoor spot light supplied with a strap bracket that fixes to a tree trunk or branch without piercing the bark. The fully adjustable spot light typically produces 80 lumens. Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The pin mounted 1 watt 3Vf Cree XPG-3 LED is field replaceable, and the optic is simple to change if you wish to alter the beam width (see specifications). A glare guard is available. Power supply chart available for download here: https://luxrled.com/product/micro-m1-v1-power-supply-charts

316 Stainless Steel Components - 10 years

Opens every option below so you can see everything at once.

Luminaire Options

Power Options

Material Options

Beam Angle Options

Colour Temperature Options

Lens Options

SKU: M1-SP TM Categories: LuxR, Modux One (M1), Spots and Flood, Tree Mount, Tree Mount

Specifications

LED Chip	Pin mounted 1W 3Vf Cree XPG-3 LED
Luminaire Output*	80 lm @ 350 mA (1 W) Delivered
Lumens Per Watt*	80 lm/W Delivered
LED Life Expectancy	50,000 Hrs @ L70
CRI (3000K)	90+ Standard
Ingress Protection	IP68
Warranty	316 Stainless Steel Components - 10 years Aluminium Components - 5 years Electronics - 5 Years Solid Copper Components - 10 Years Excludes third party lamps and power supplies.
Standards	CE UL 1598 UL 2108 UL 1838 UL 676
