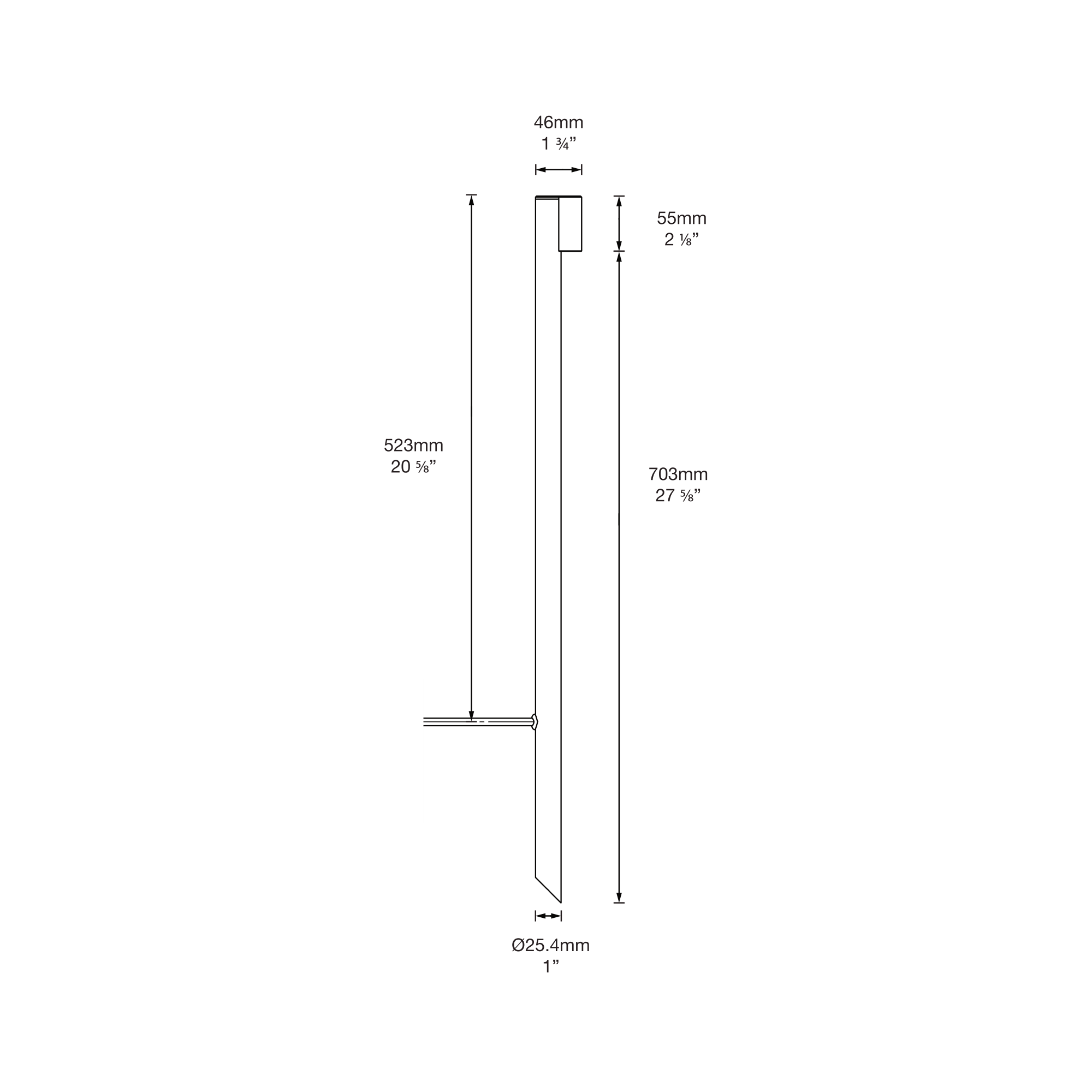

Diagram

Download diagram

LuxR Modux One Vail Pole Mount in black, a slim pole luminaire

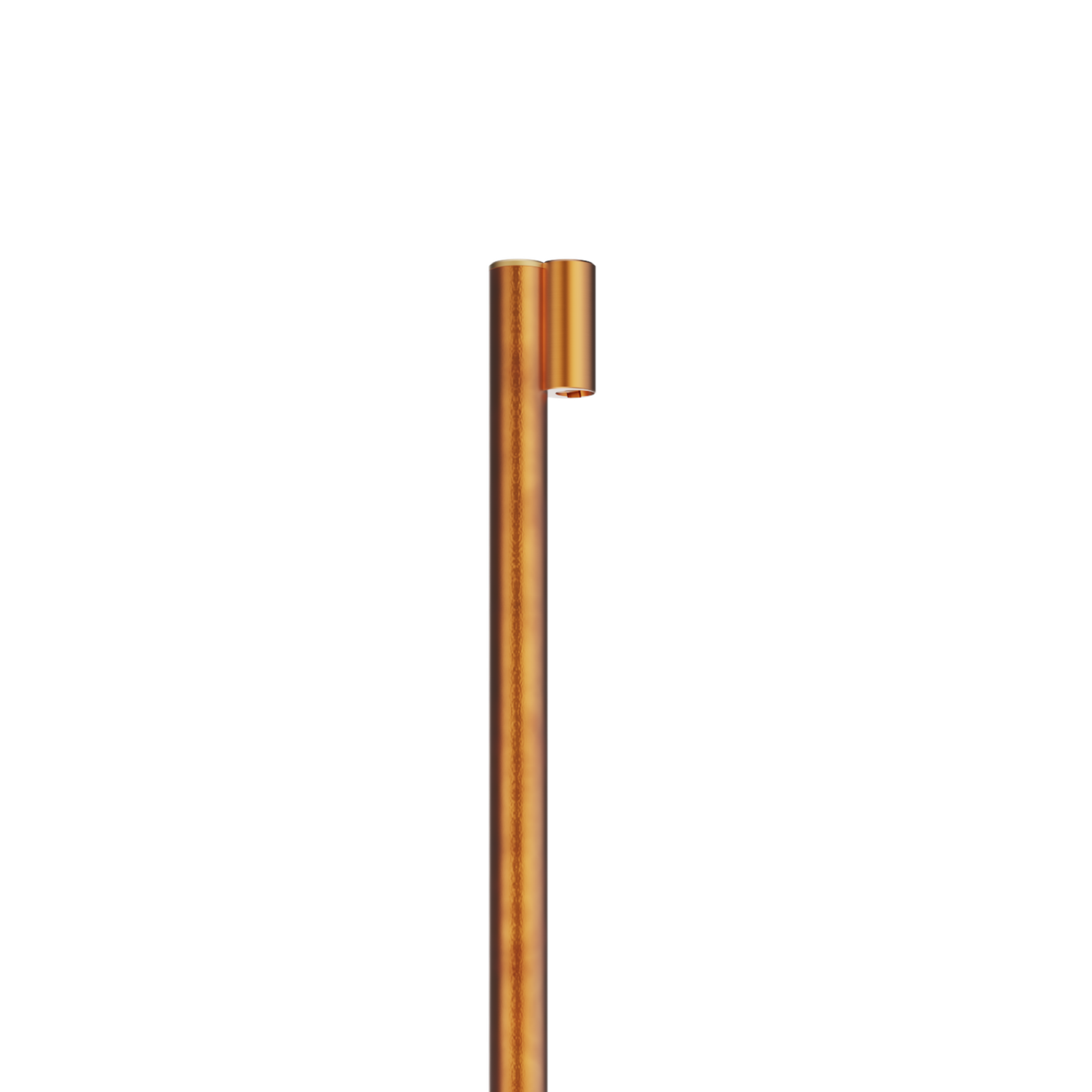

LuxR Modux One Vail Pole Mount in solid copper, a slim pole luminaire

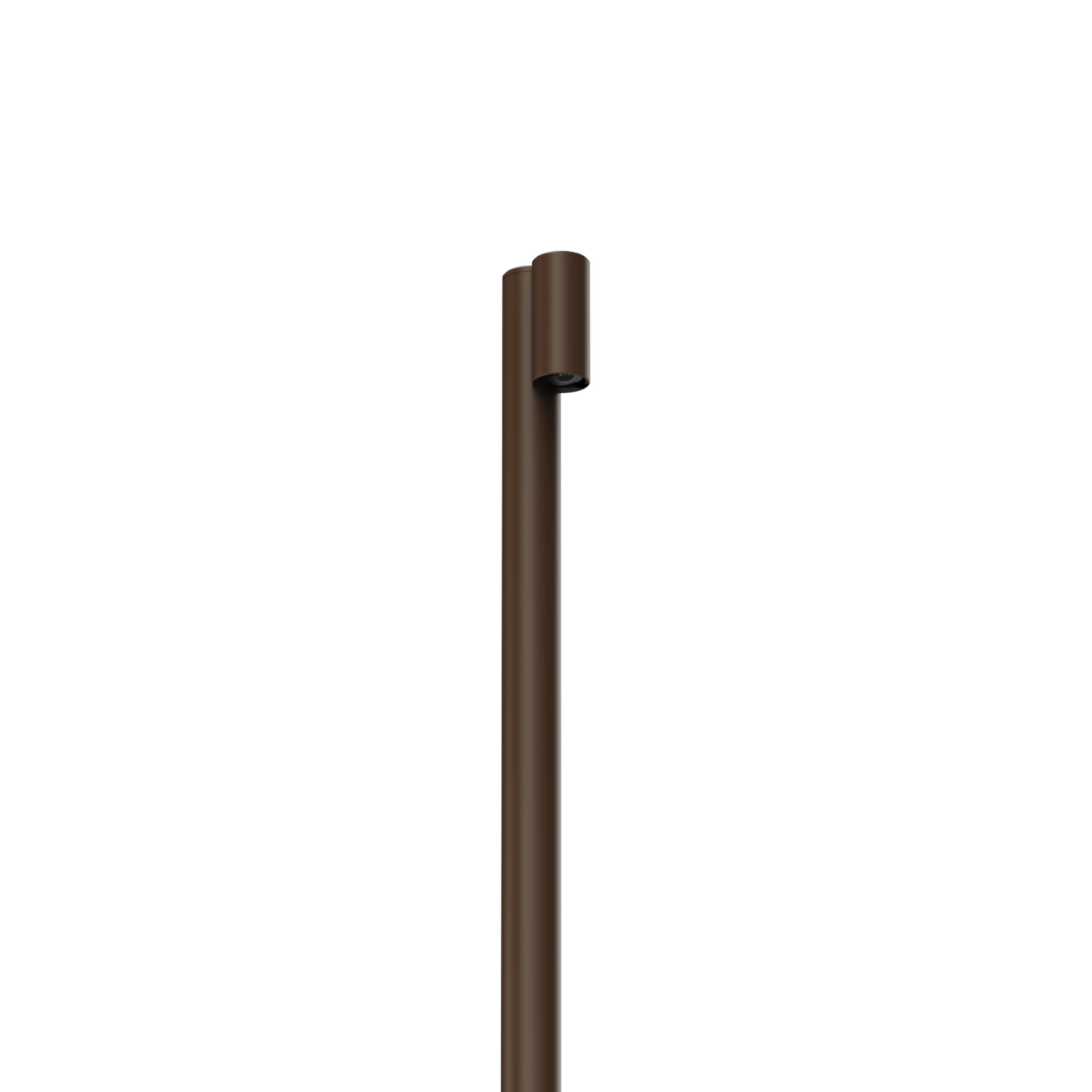

LuxR Modux One Vail Pole Mount in bronze, a slim pole luminaire

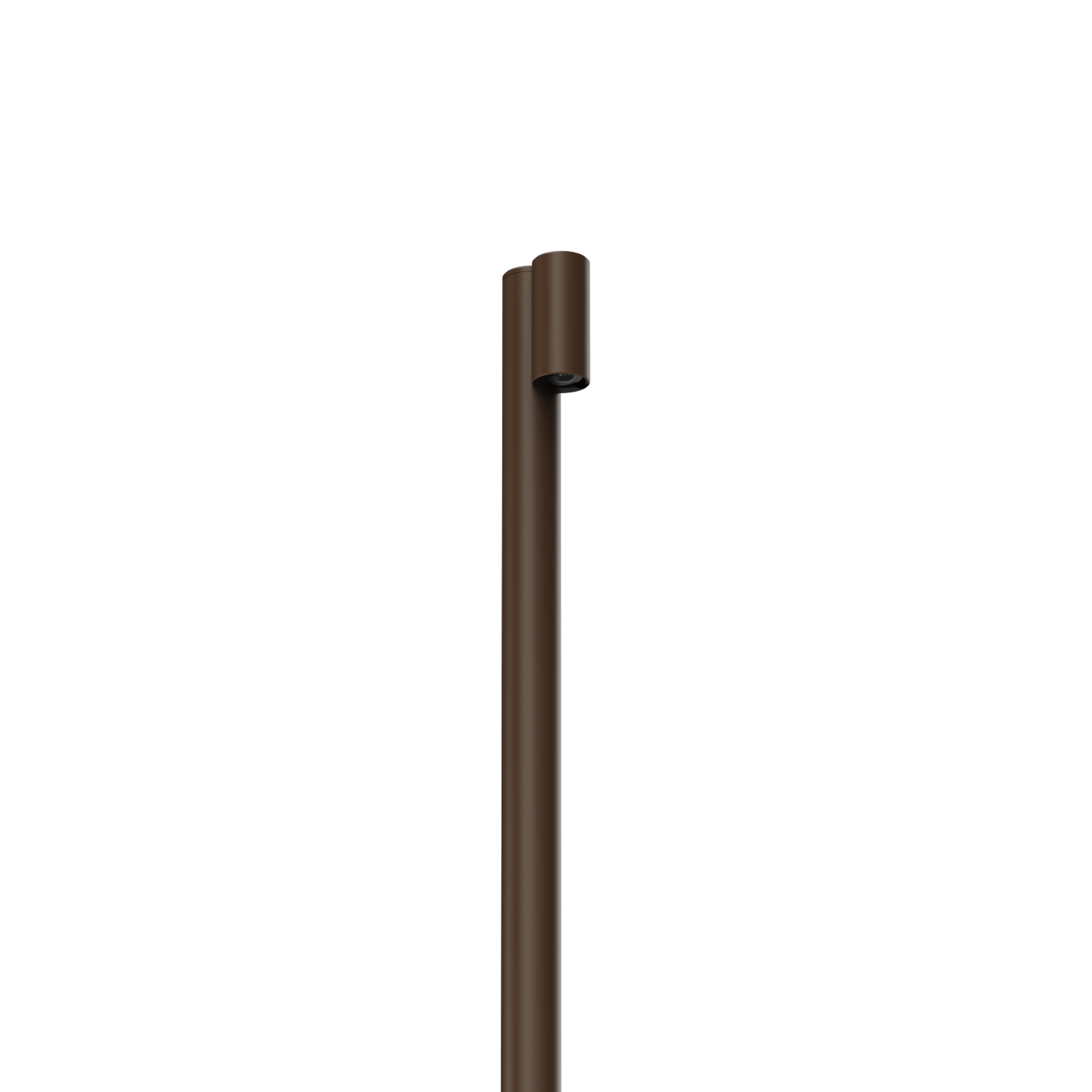

LuxR Modux One Vail Pole Mount in dark bronze, a slim pole luminaire

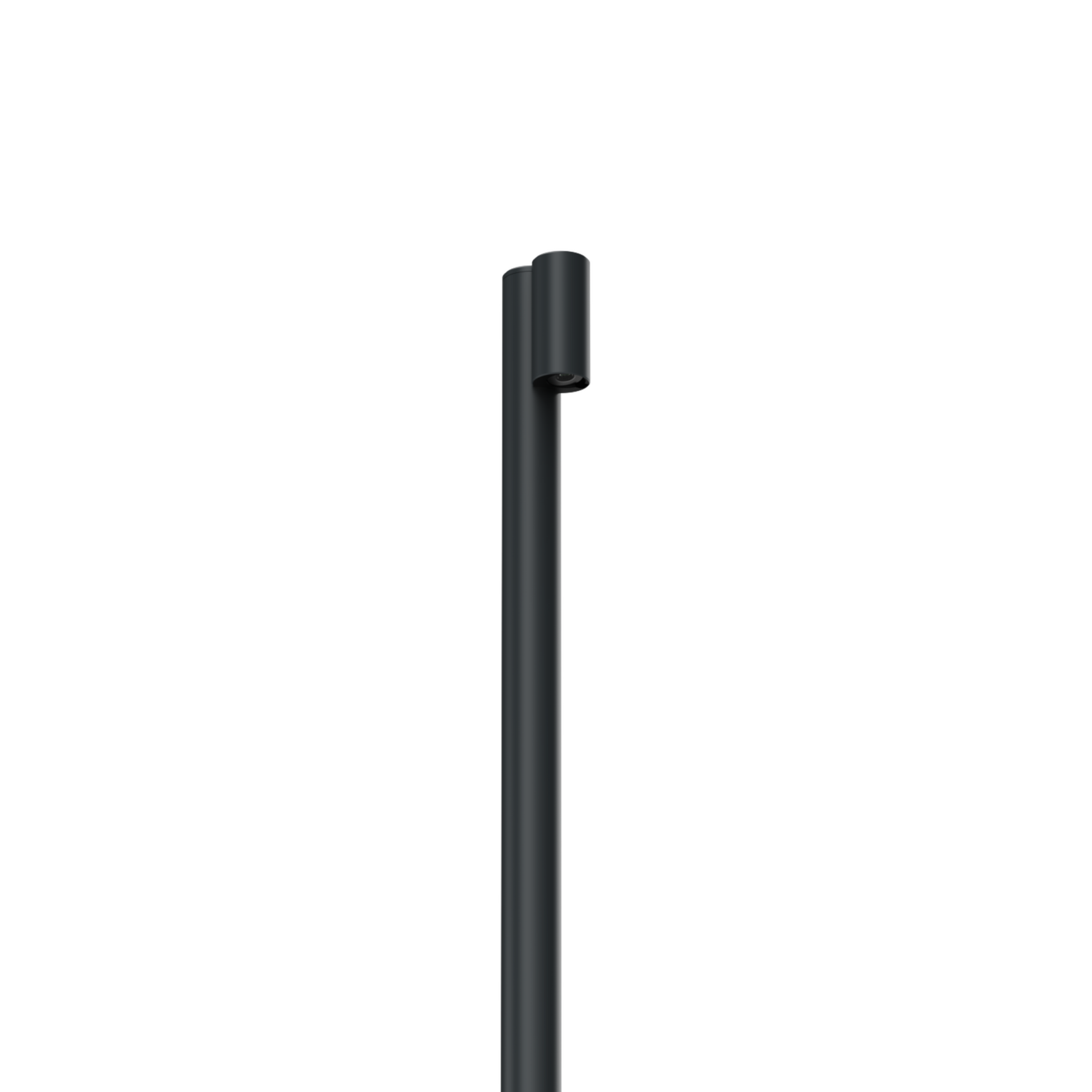

LuxR Modux One Vail Pole Mount in graphite, a slim pole luminaire

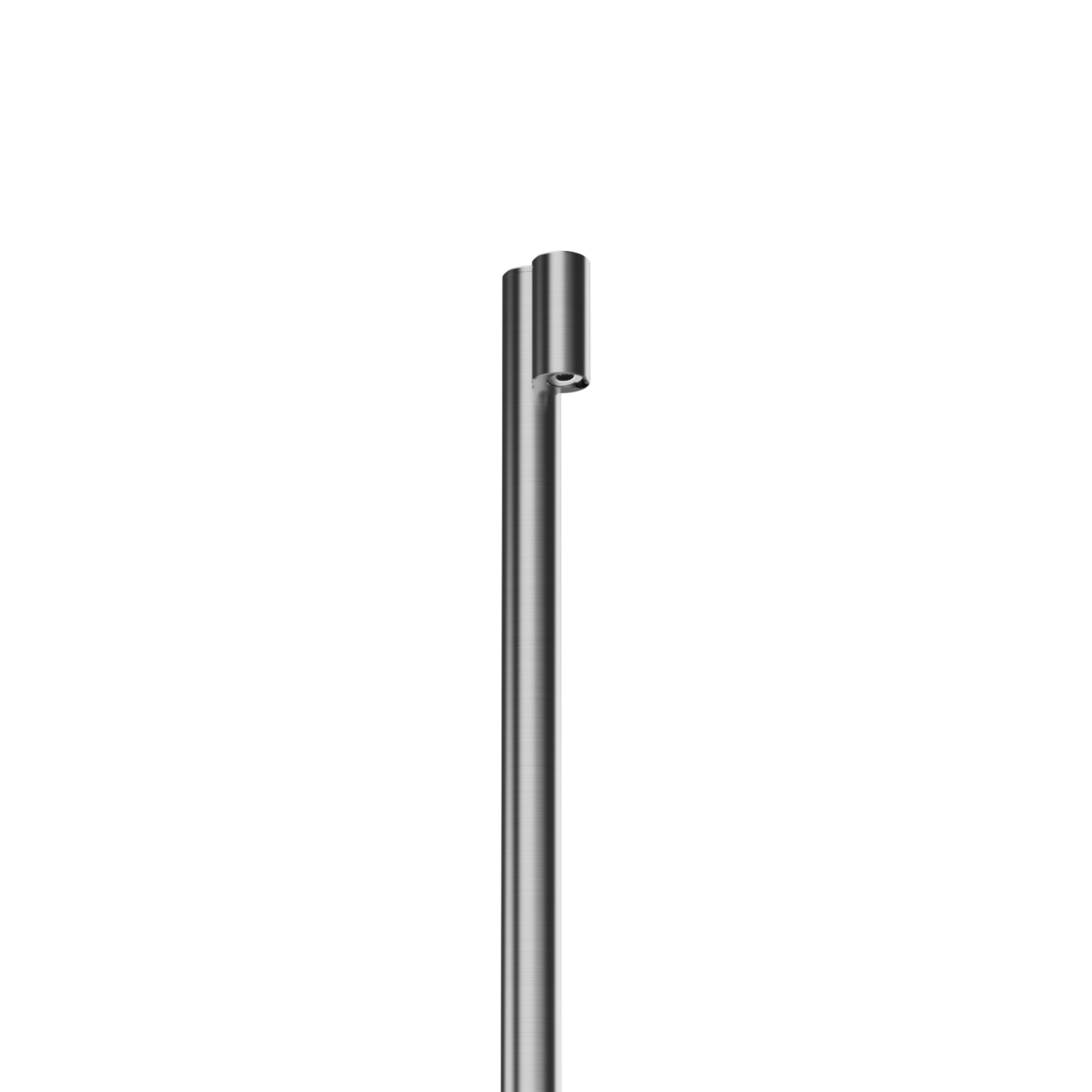

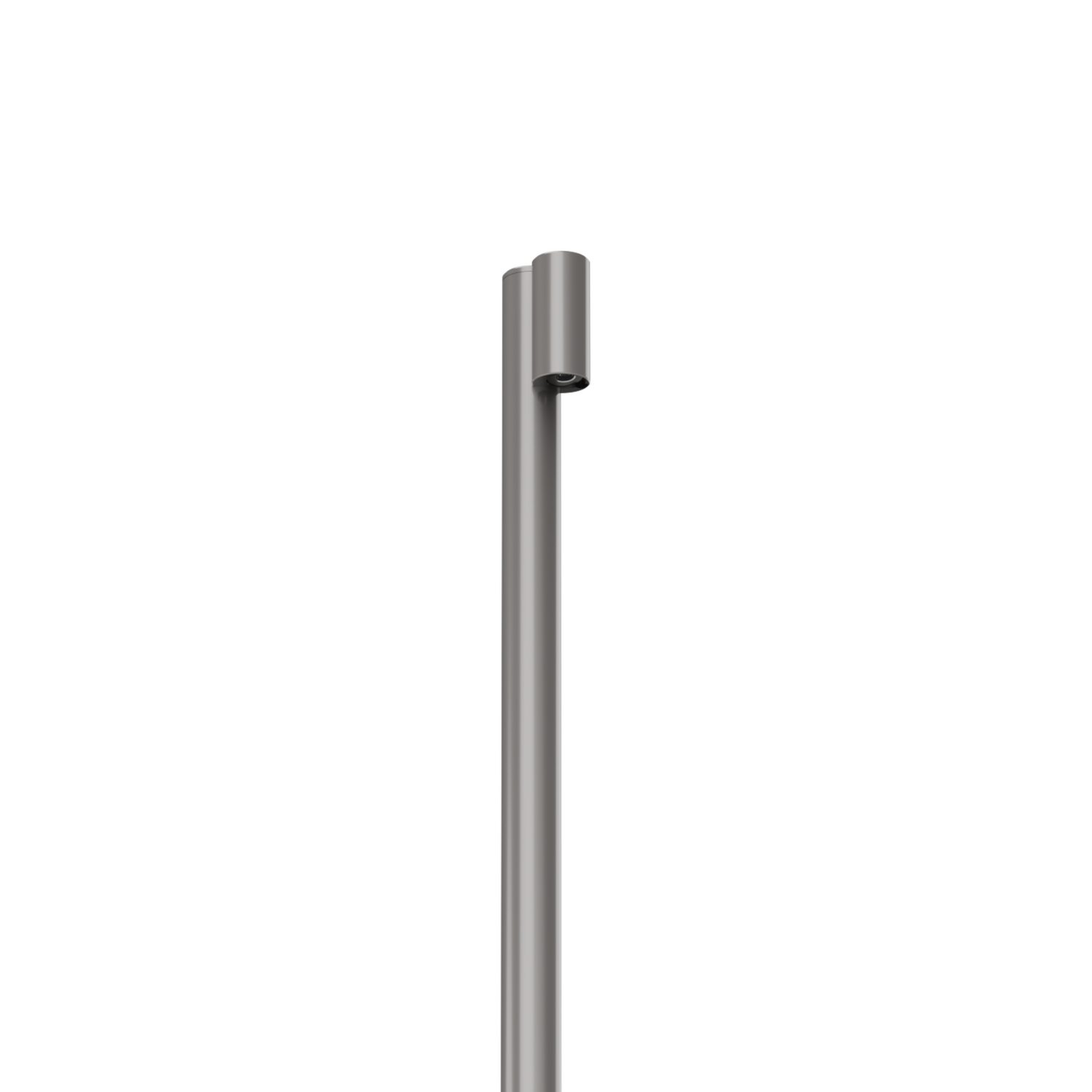

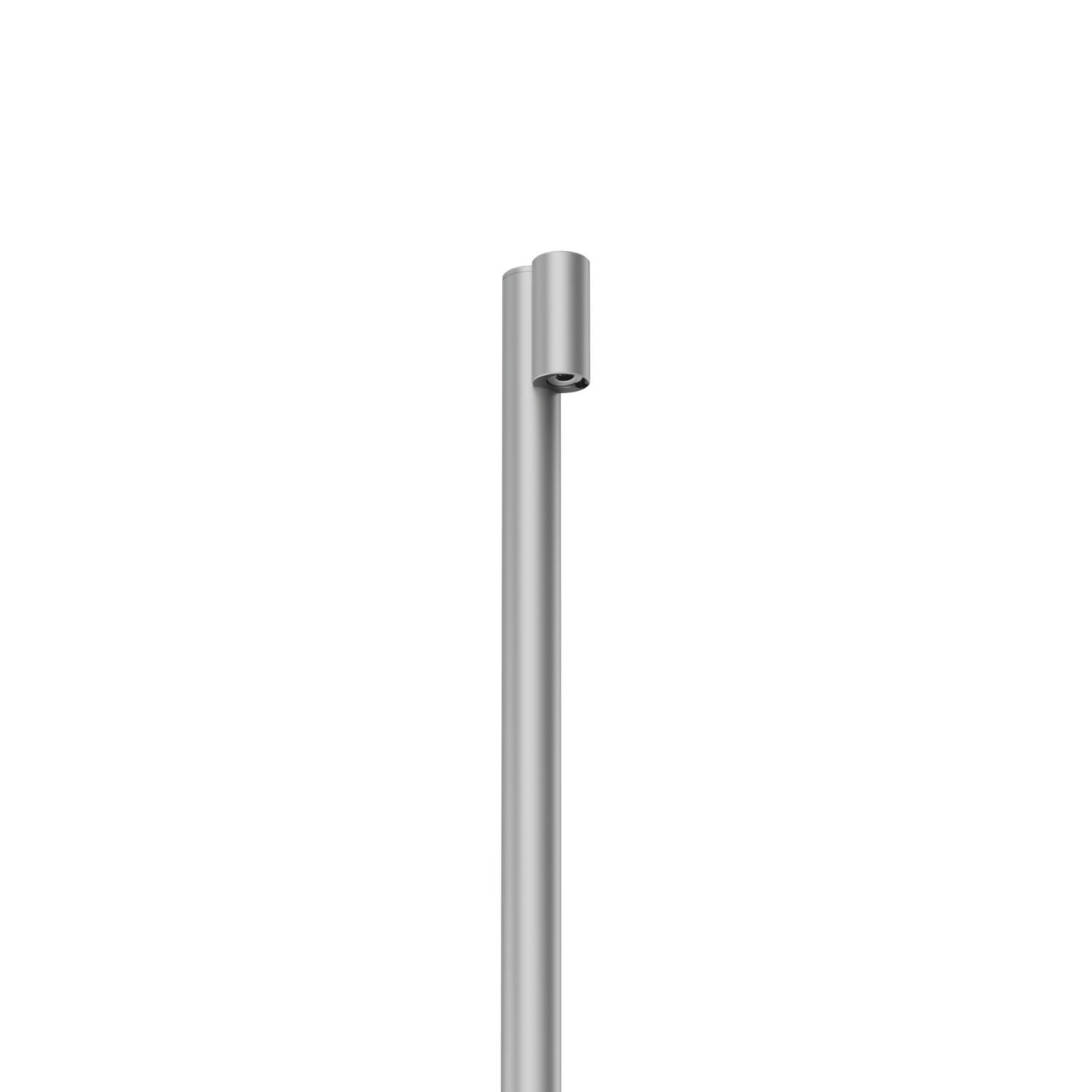

LuxR Modux One Vail Pole Mount in stainless steel, a slim pole luminaire

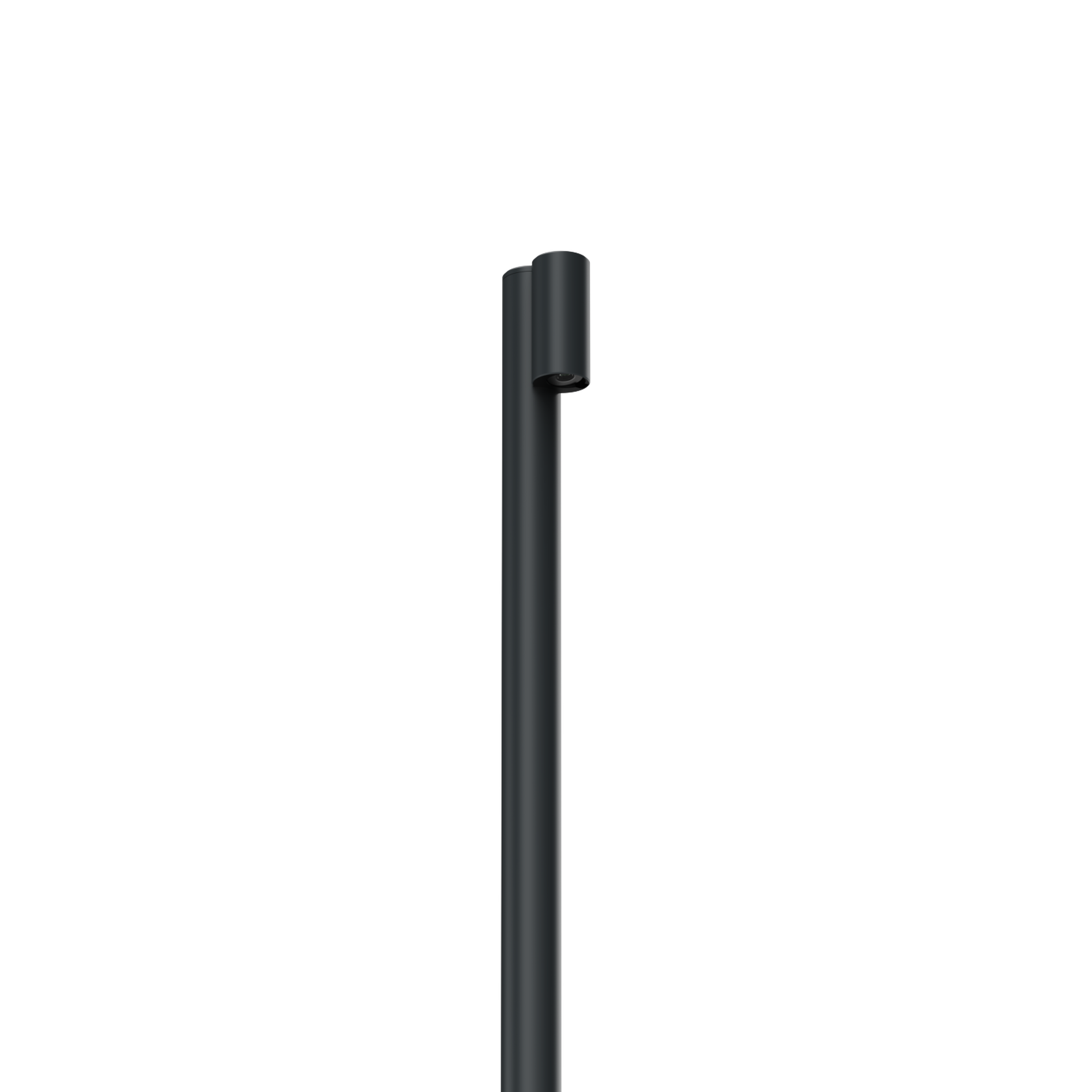

LuxR Modux One Vail Pole Mount in dark grey, a slim pole luminaire

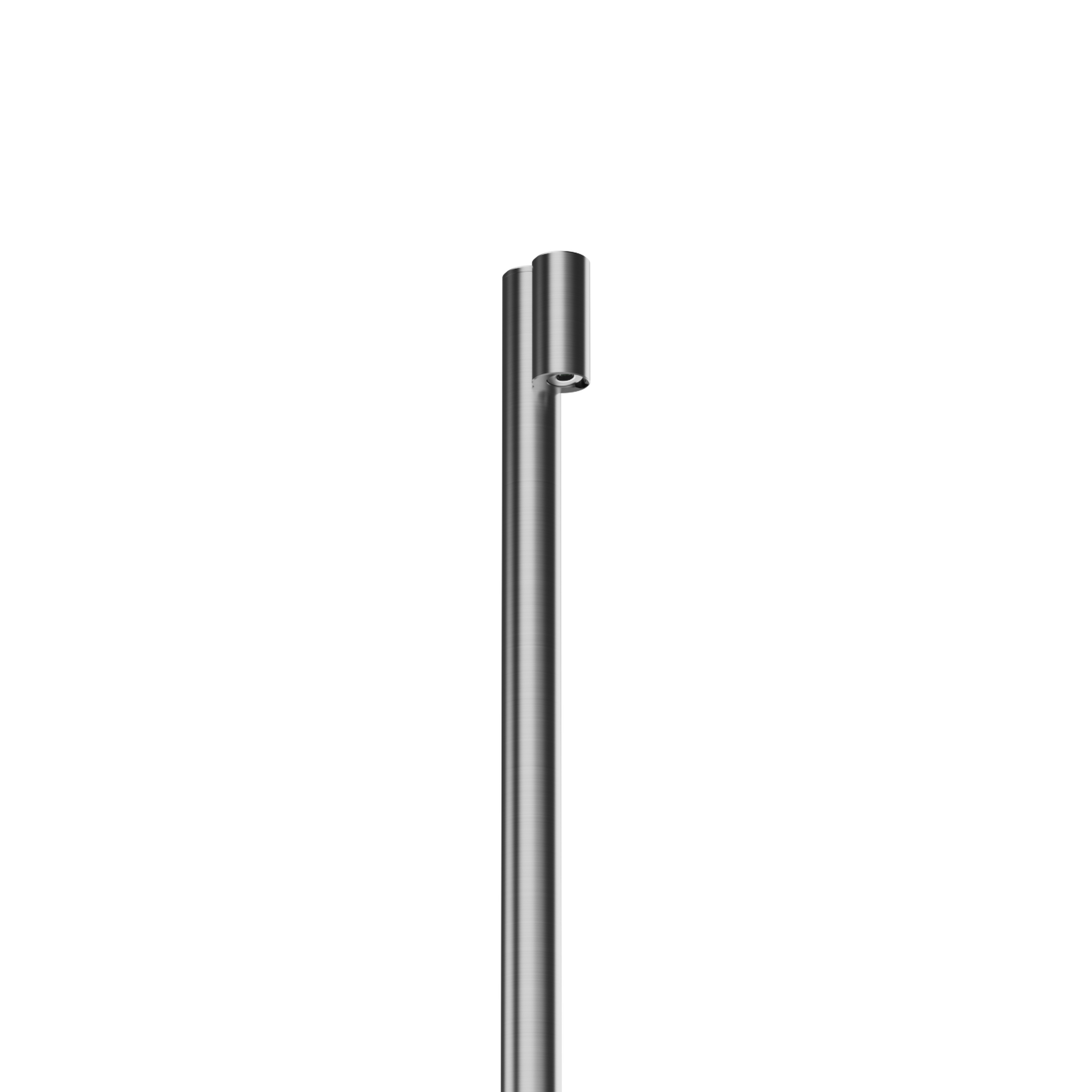

LuxR Modux One Vail Pole Mount in stainless steel shown at full height

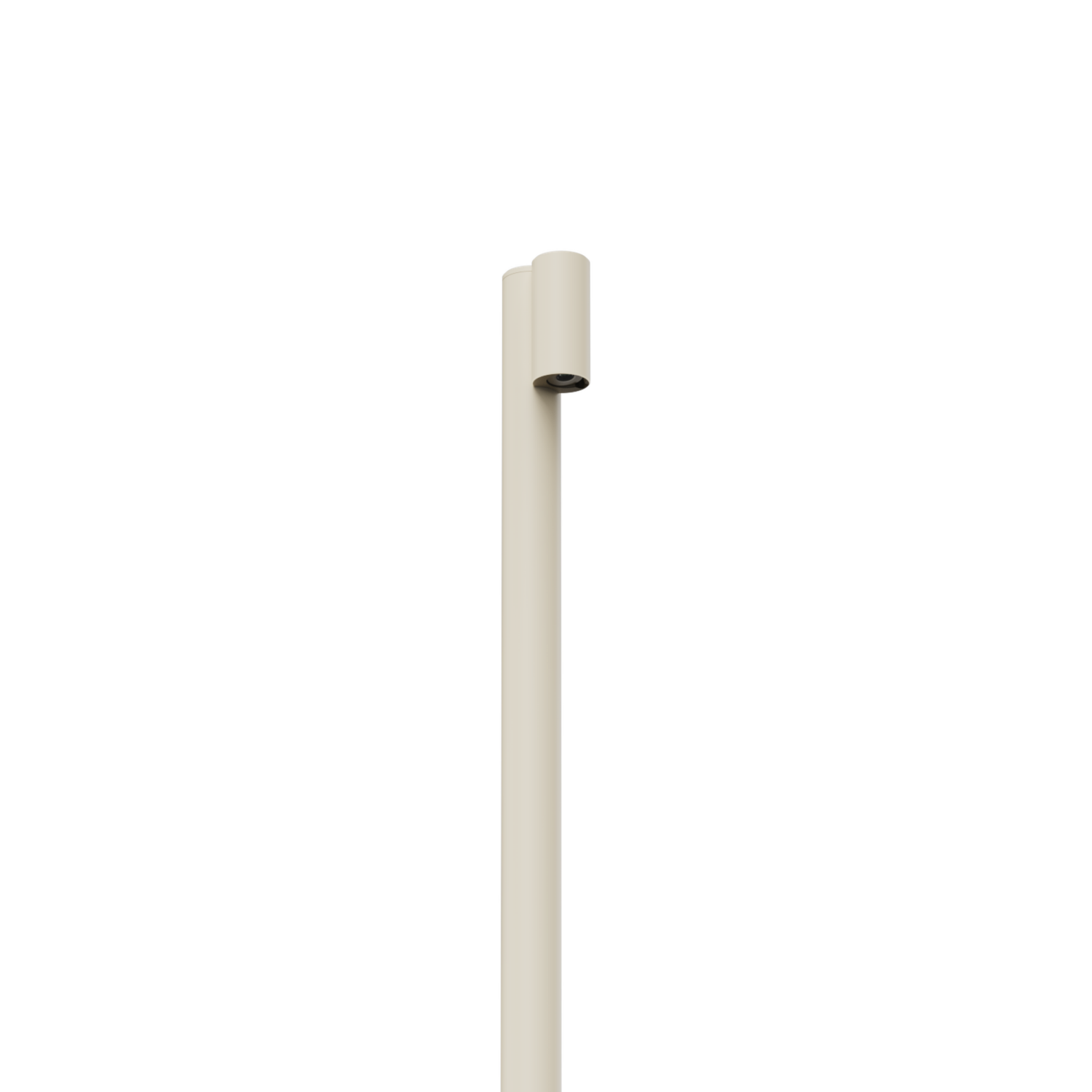

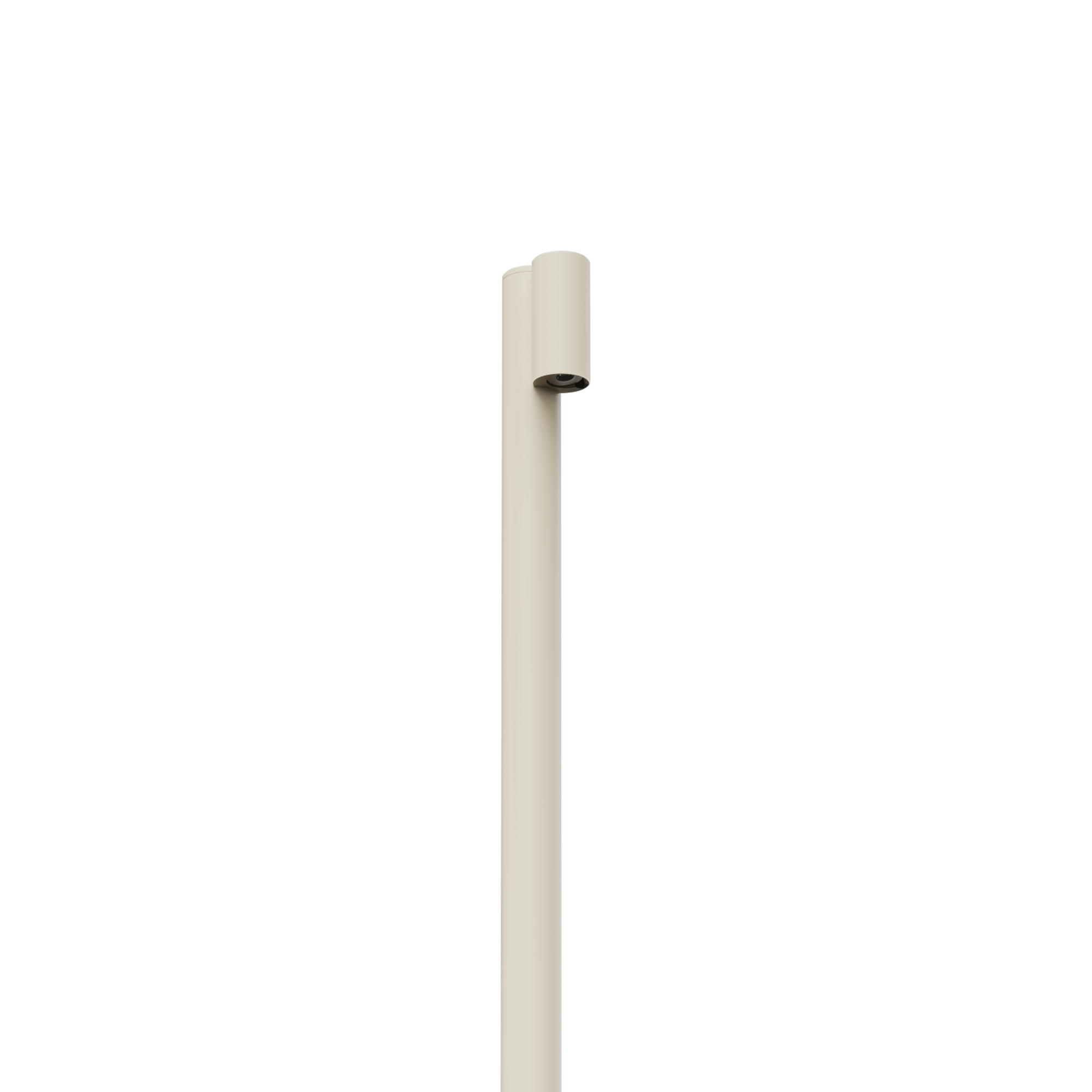

LuxR Modux One Vail Pole Mount in cream, a slim pole luminaire

Modux One Vail – Pole Mount

Pole Mounted

SKUM1-VAIL

The Modux One Vail Pole Mount is a low-voltage dimmable outdoor luminaire on a slim 25.4mm pole. The shielded head throws light downwards and keeps the source out of view, for lighting paths, garden beds and low planting. Typically produces 80 lumens. Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP67 water ingress rating for peace of mind. The pin mounted 1 watt 3Vf Cree XPG-3 LED is field replaceable. Power supply chart available for download here: https://luxrled.com/product/micro-m1-v1-power-supply-charts

316 Stainless Steel Components - 10 years

Opens every option below so you can see everything at once.

Power Options

Material Options

Beam Angle Options

Colour Temperature Options

Lens Options

Mounting Options

SKU: M1-VAIL Categories: LuxR, Modux One (M1), Pole Mount, Pole Mounted Tag: LuxR

Specifications

LED Chip	Pin mounted 1W 3Vf Cree XPG-3 LED
Luminaire Output*	80 lm @ 350 mA (1 W) Delivered
Lumens Per Watt*	80 lm/W Delivered
LED Life Expectancy	50,000 Hrs @ L70
CRI (3000K)	90+
Ingress Protection	IP67
Warranty	316 Stainless Steel Components - 10 years Aluminium Components - 5 years Electronics - 5 Years Solid Copper Components - 10 Years Excludes third party lamps and power supplies.
Standards	-
