Modux Two Stake Spot - Hunza Outdoor Lighting

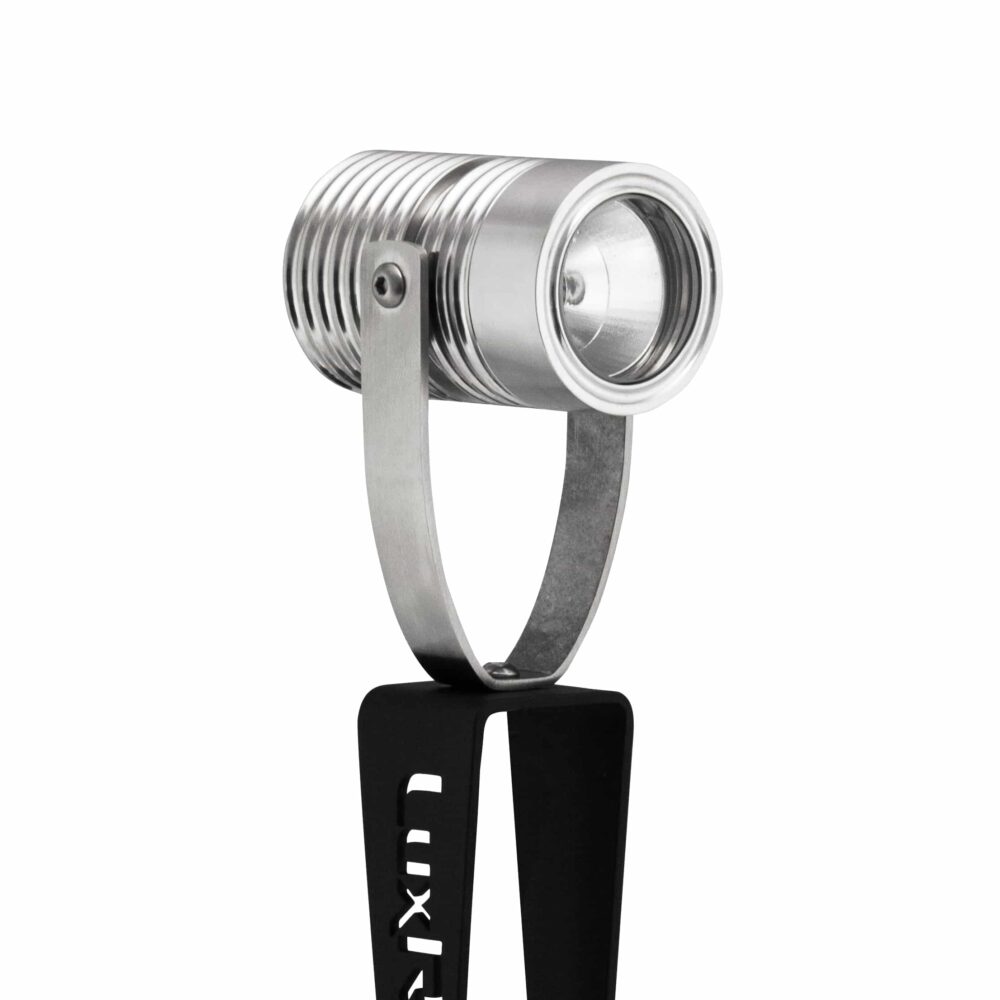

LuxR Modux Four Stake Spot in stainless steel on a twin-prong LuxR stake

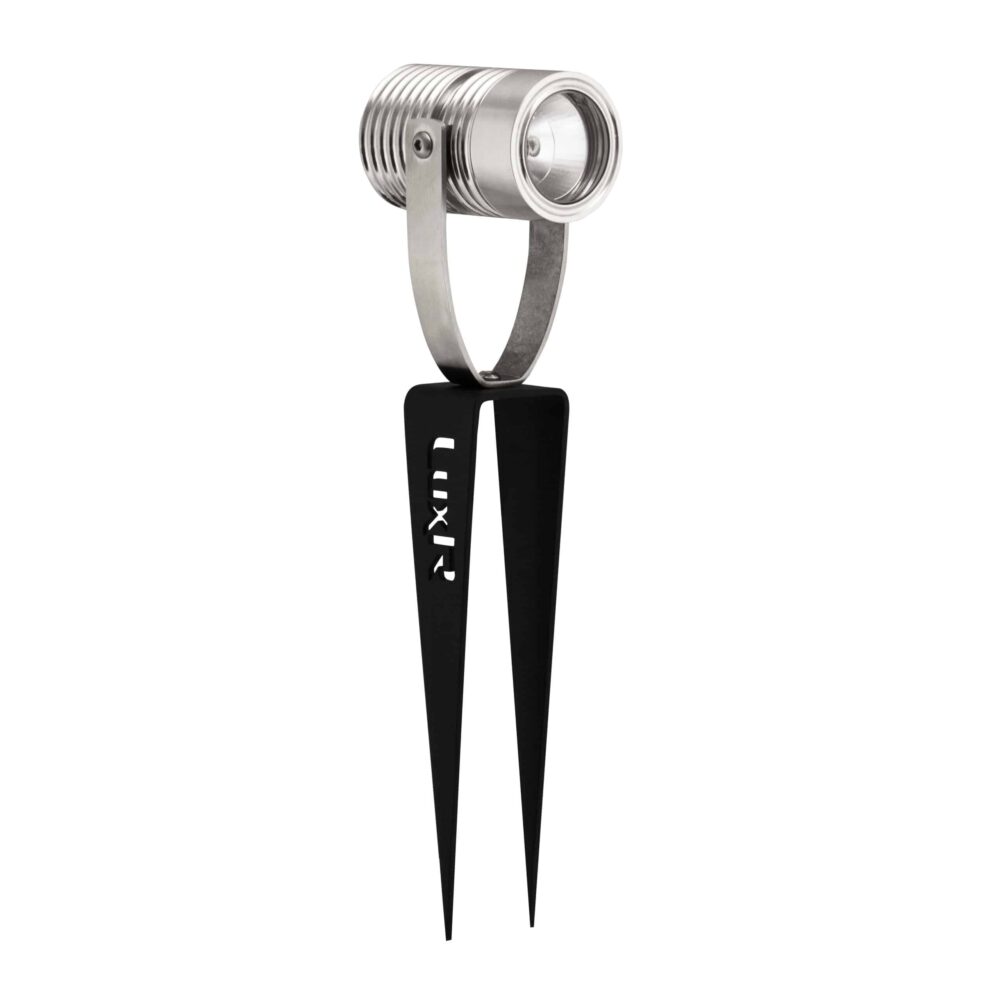

LuxR Modux Four Stake Spot in stainless steel shown full height on its twin-prong stake

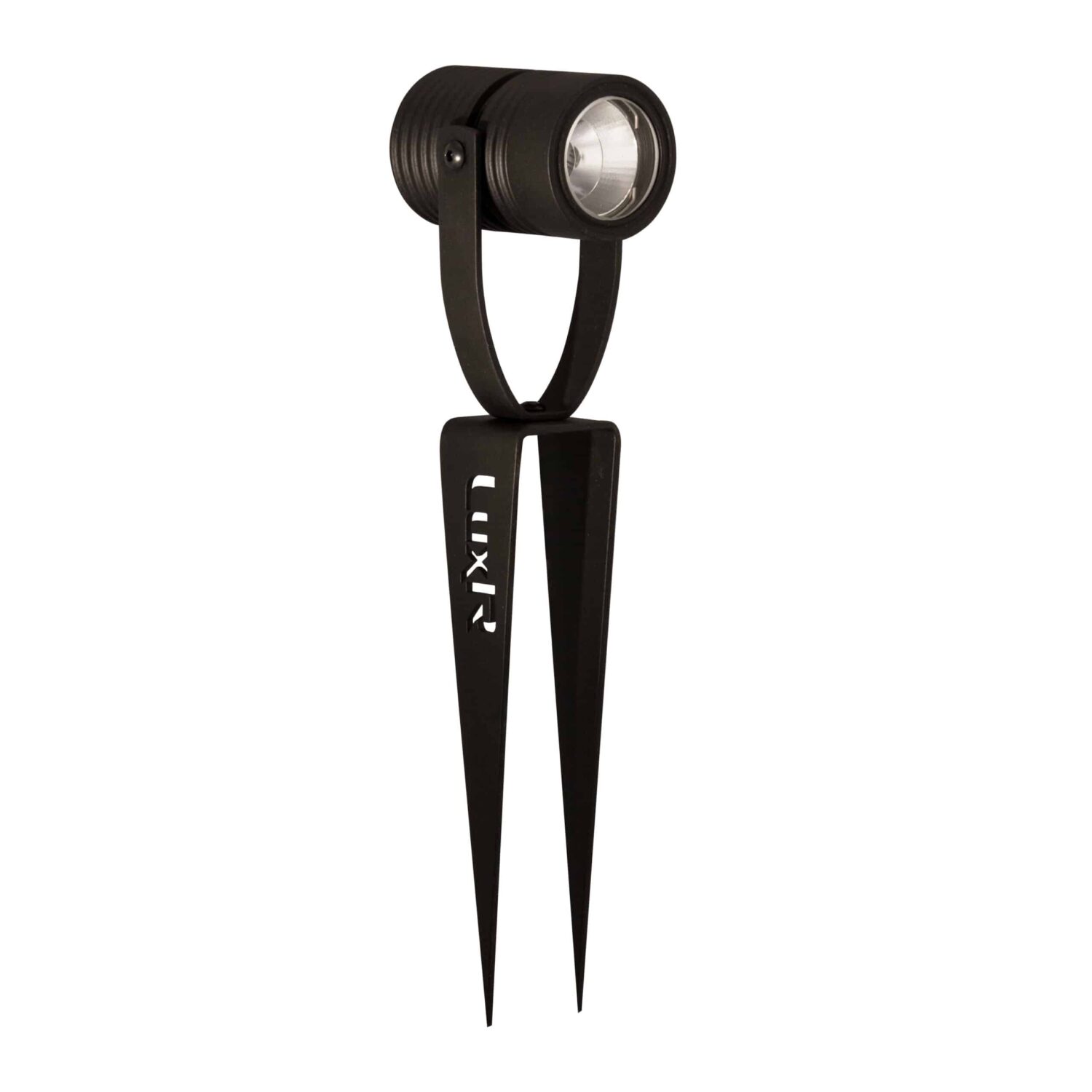

LuxR Modux Four Stake Spot in black shown full height on its twin-prong stake

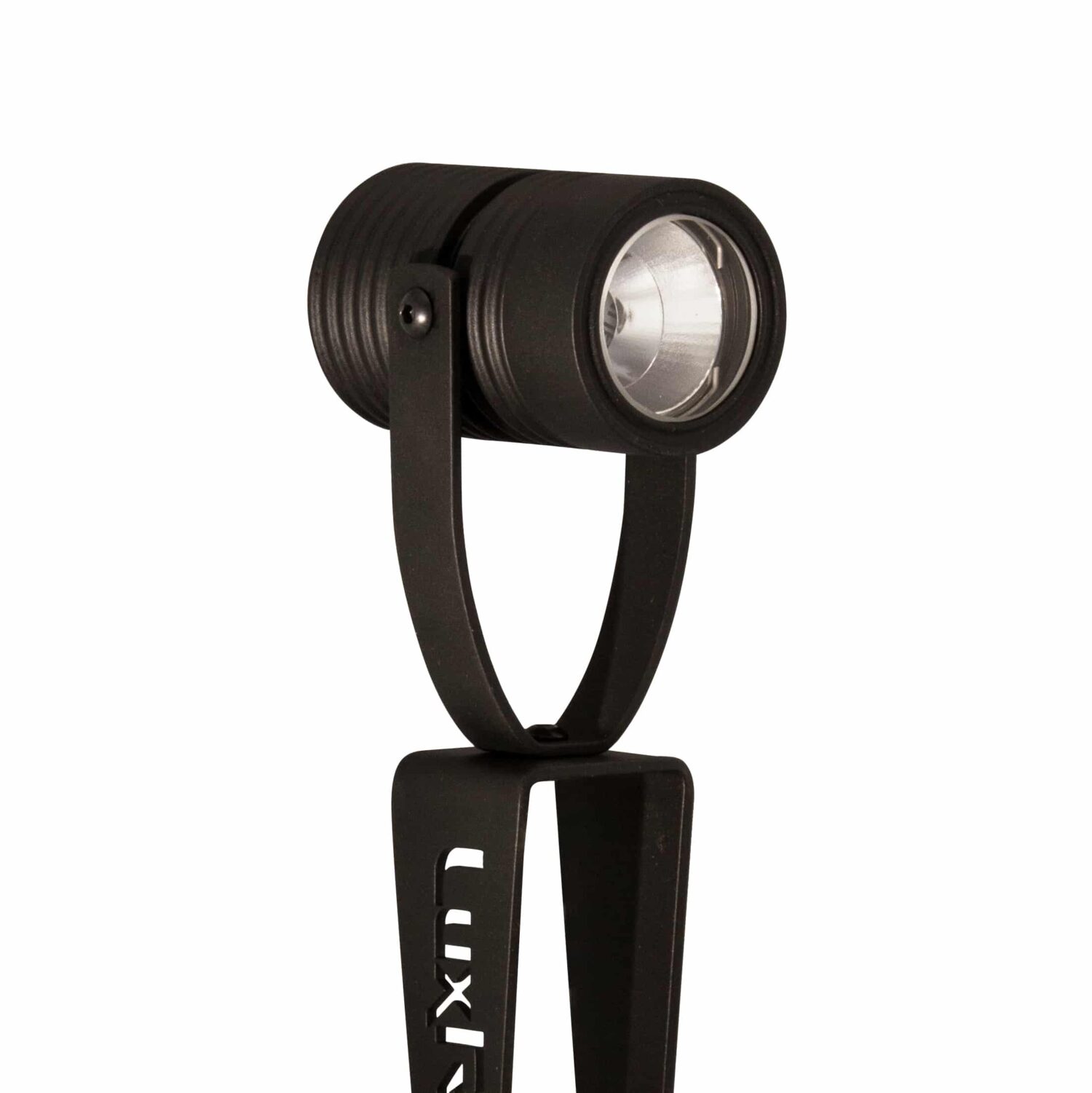

LuxR Modux Four Stake Spot in black on a twin-prong LuxR stake

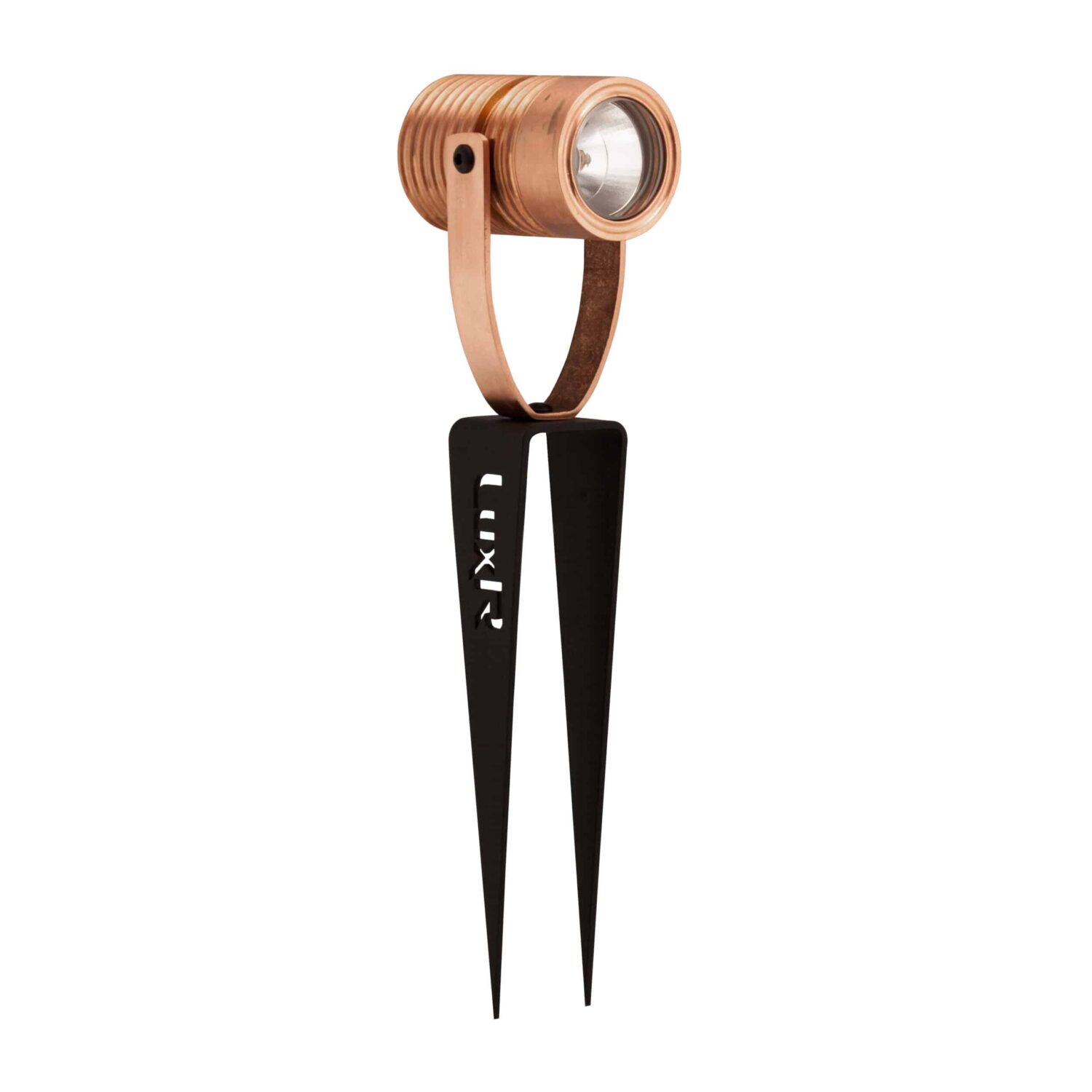

LuxR Modux Four Stake Spot in solid copper shown full height on its twin-prong stake

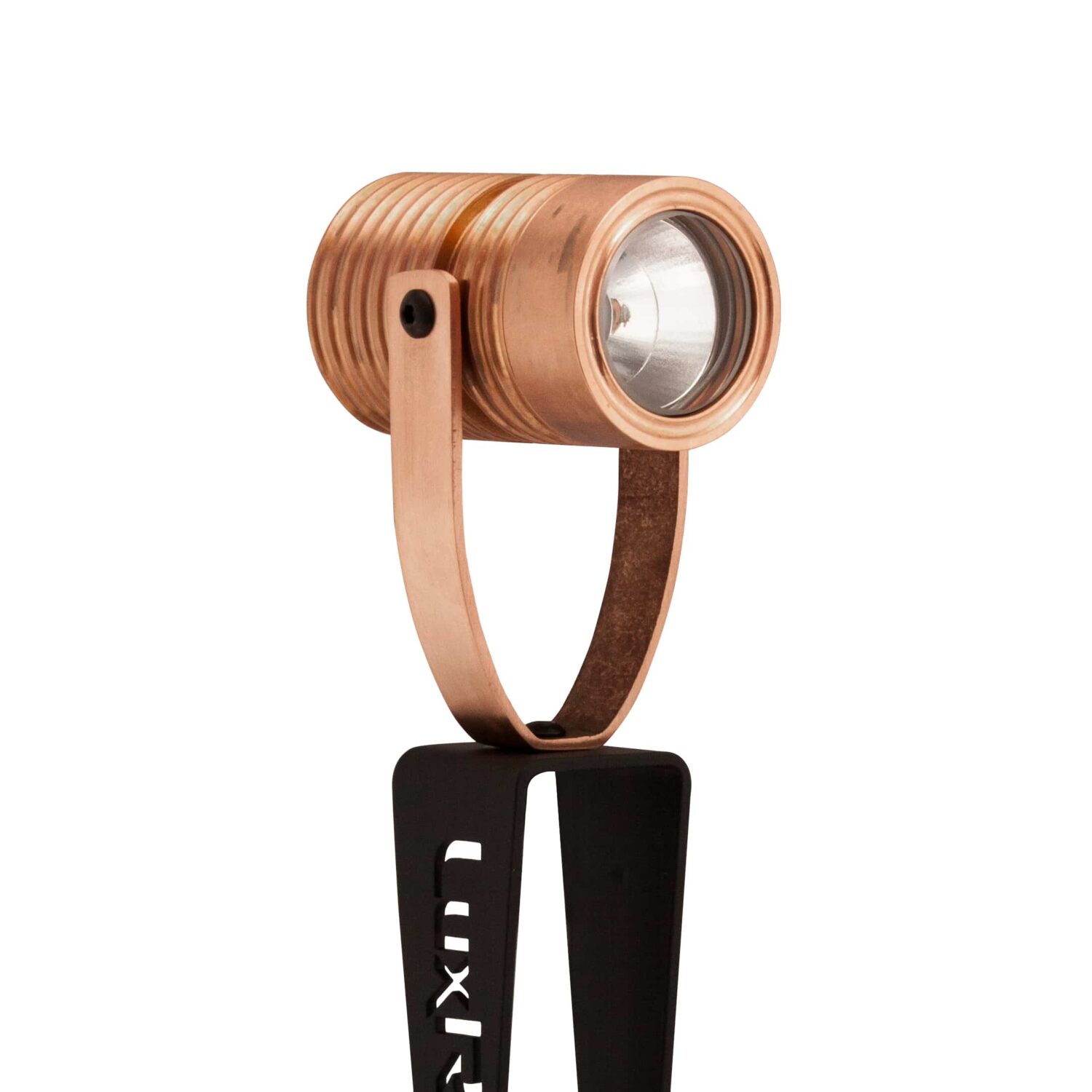

LuxR Modux Four Stake Spot in solid copper on a twin-prong LuxR stake

316 Stainless Steel Components - 10 years

Aluminium Components - 5 years

Electronics - 5 Years

Solid Copper Components - 10 Years

Opens every option below so you can see everything at once.

Power Options

Material Options

Beam Angle Options

Colour Temperature Options

Lens Options

SKU: M2-SP ST Categories: Ground & Deck Mounted, LuxR, Modux Two (M2), Spike & Stake Mounted, Spots and Flood

LED Chip	Cree® XHP-3 Plug and Play field replaceable LED board
Luminaire Output*	180 lm @ 700 mA (2 W) Delivered from the luminaire with an unobstructed beam.
Lumens Per Watt*	90 lm/W Delivered from the luminaire with an unobstructed beam.
LED Life Expectancy	50,000 Hrs @ L70
CRI (3000K)	90+ Standard
Ingress Protection	IP68
Warranty	316 Stainless Steel Components - 10 years Aluminium Components - 5 years Electronics - 5 Years Solid Copper Components - 10 Years Excludes third party lamps and power supplies.
Standards	CE UL 1598 UL 2108 UL 1838 UL 676

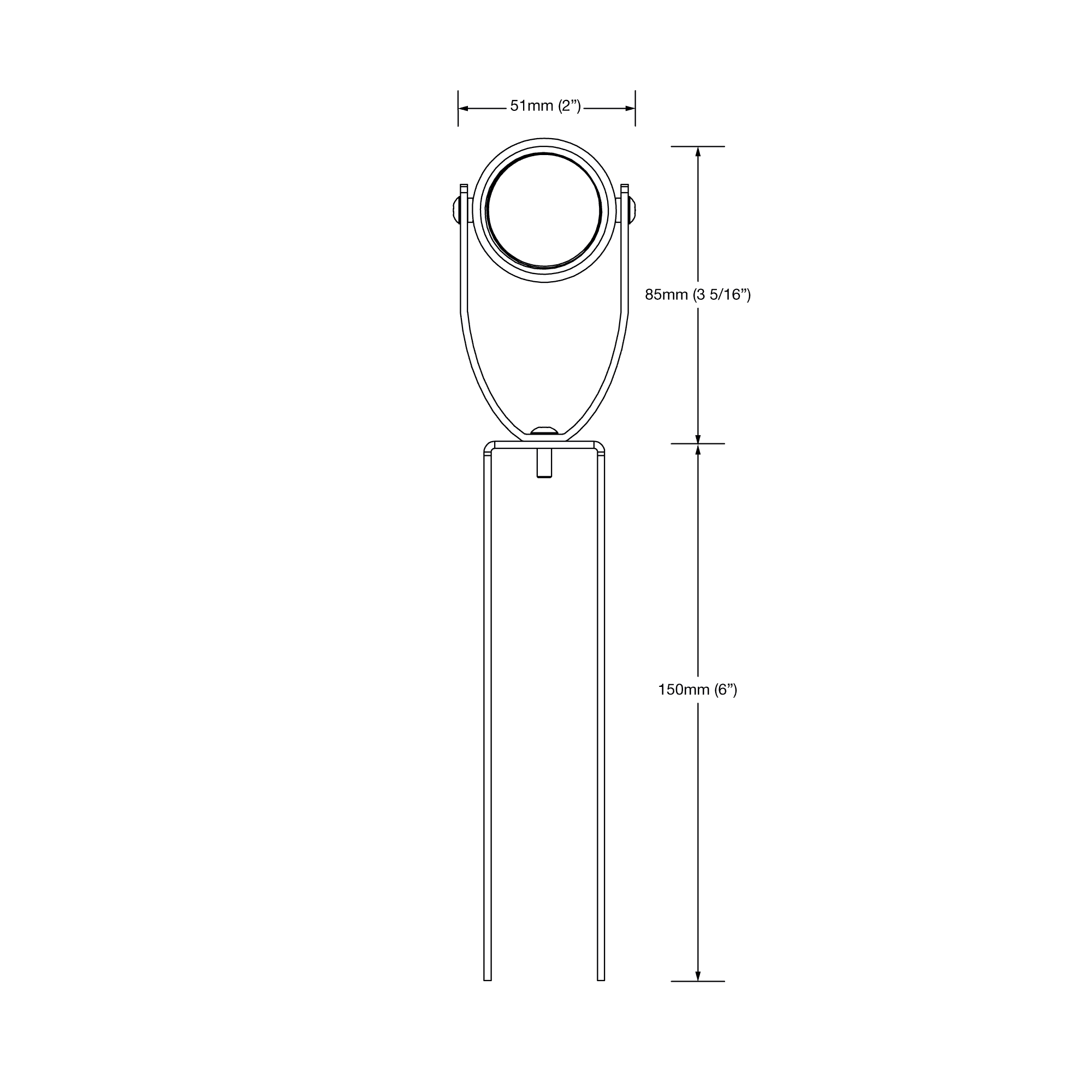

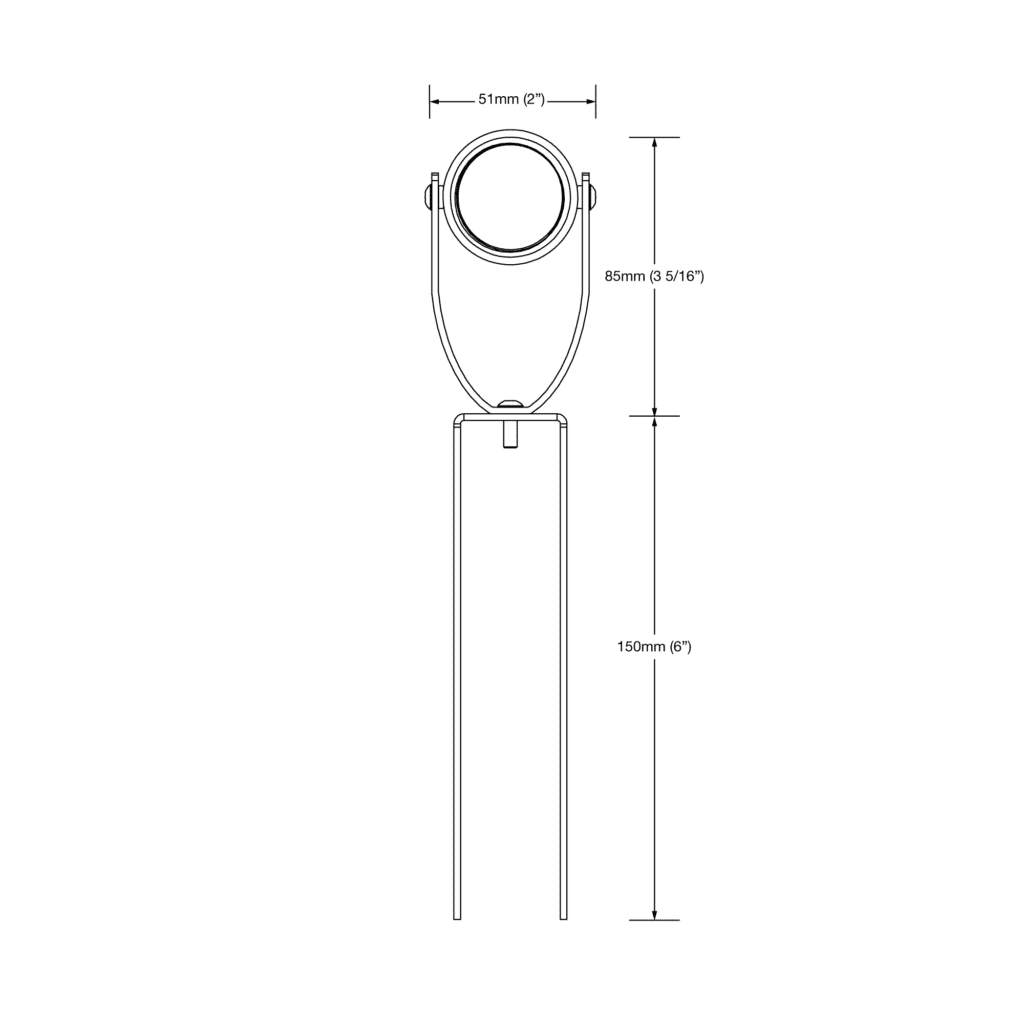

Dimensioned line drawing of the LuxR Modux Four Stake Spot

Specifications / Data Sheets

LuxR Modux Two Stake Spot – M2SPST – Specification Sheet

1 file(s) 650.52 KB

Download

Product Diagrams

LuxR Modux Two and Four Stake Spot - M2-SP-ST - M4-SP-ST - Product Diagram

1 file(s) 528.62 KB

Download

Installation Instructions

LuxR Micro, Modux One, Two and Four Installation Instructions
