Pagoda Light
- Wall Mounted
SKUPGL/L
The Pagoda Light provides non-directional lighting, ideal for the illumination of areas such as porches and entrance ways. The lens reflects light at two angles, horizontally and upwards, to illuminate the surrounding landscape.
Specifications
| LED Chip | Cree® XHP-50-2 Plug and Play field replaceable LED board |
|---|---|
| Luminaire Output* | 510 lm @ 1,050 mA (6 W) 340 lm @ 700 mA (4 W) 160 lm @ 350 mA (2 W) Delivered from the luminaire with an unobstructed beam. |
| Lumens Per Watt* | 85 lm/W 85 lm/W 80 lm/W Delivered from the luminaire with an unobstructed beam. |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) | 90+ Standard |
| Ingress Protection | IP66 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards |
|
Documents
Specifications / Data Sheets

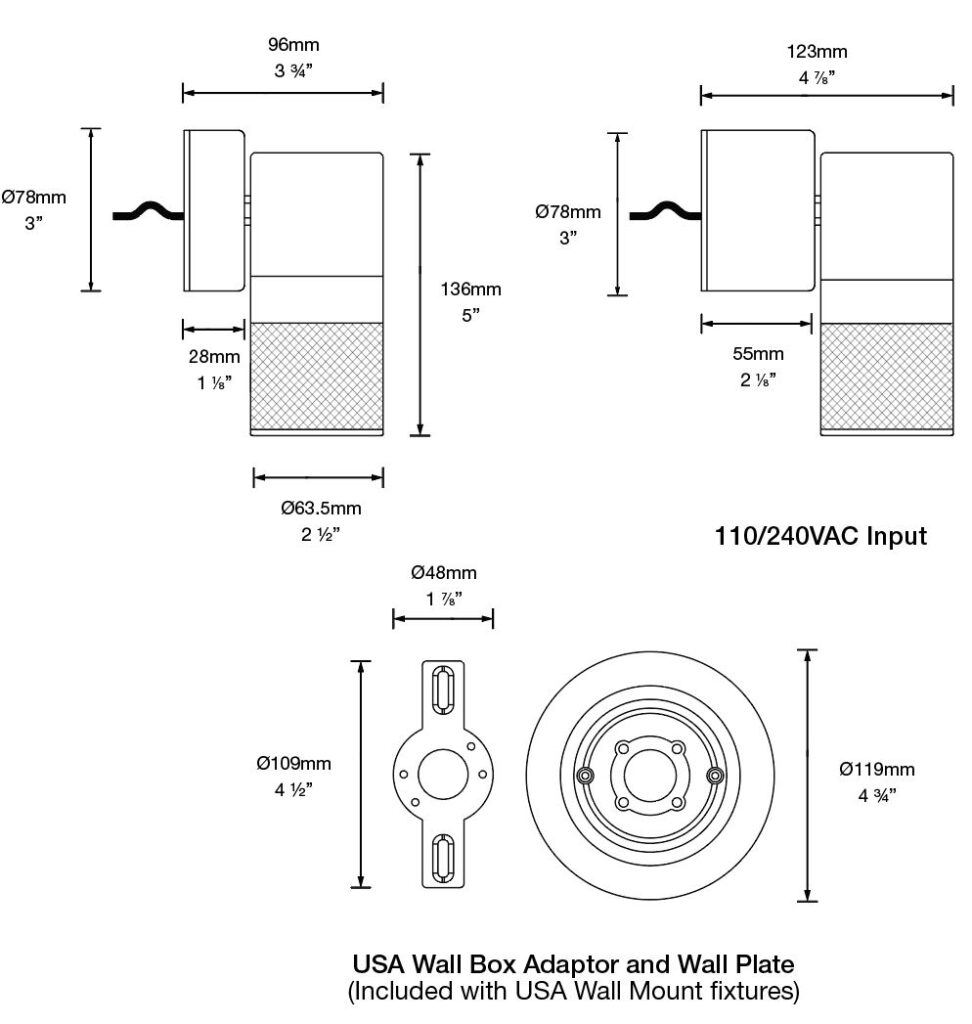

Product Diagrams
Installation Instructions
Photometric Files
