Sign Light
- Wall Mounted
SKUSGNL/L
The Sign Light is designed to illuminate signs, wall displays, building features and is ideal for lighting external barbeques. The fully adjustable head is mounted onto the end of a 500mm arm, allowing 360 degree rotation and 0-90 degree elevation.
Specifications
| LED Chip | Cree® XHP-50-2 Plug and Play field replaceable LED board |
|---|---|
| Luminaire Output* | 620 lm @ 1,050 mA (6 W) 420 lm @ 700 mA (4 W) 240 lm @ 350 mA (2 W) Delivered from the luminaire with an unobstructed beam. |
| Lumens Per Watt* | 103.3 lm/W 105 lm/W 120 lm/W Delivered from the luminaire with an unobstructed beam. |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) |
|
| Ingress Protection | IP66 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards |
|
Documents
Specifications / Data Sheets

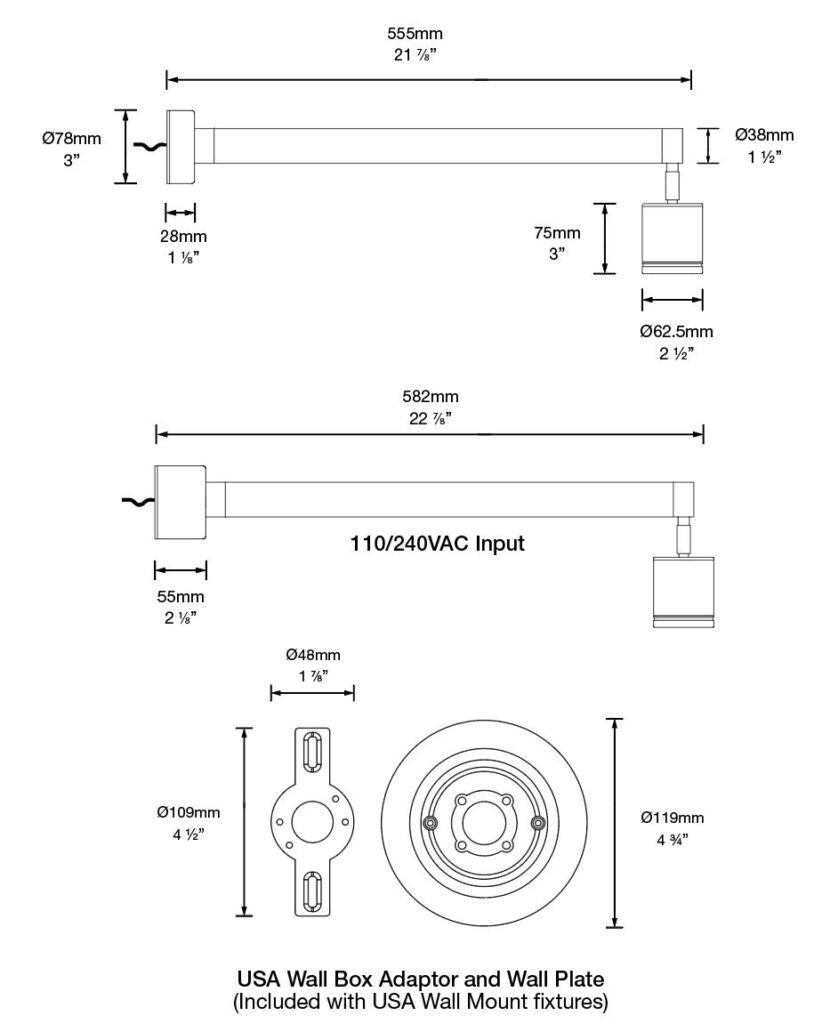

Product Diagrams
Installation Instructions
Photometric Files
