Hunza® Spot Light with Weighted Base

BS/W/L

The Spot Light with Weighted Base has been designed for easy installation on any surface with a solid metal base. It can be used for wall washing, to provide directional light, and to highlight architectural features and structural elements.

Find a Distributor
SKU: BS/W/L Categories: , , , , Tag:
Product Specifications
Lumen Output*
  • 600 lumens @ 1050mA (6 Watts)
  • 420 lumens @ 700mA (4 Watts)
  • 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.		100 lm/W
Power Options
  • 1050mA CC Input – Series Wired 6Vf
  • 12VAC Input 350mA – Parallel Wired 2.1W
  • 12VAC Input 700mA – Parallel Wired 4.2W
  • 12VAC Input 1050mA – Parallel Wired 6.3W
  • 24VDC Input – Parallel Wired 4.2W
Material Options
  • 316 Electropolished Stainless Steel
  • Solid Copper
  • Black
  • Bronze
  • Dark Grey
  • Corten
  • Olive Green
  • Silver Star
  • Arctic White
  • Fine Silver
  • White Birch
Beam Angle Options
  • 15 Degree
  • 25 Degree
  • 38 Degree
  • 60 Degree
Colour Temperature Options
  • 2700K
  • 3000K
  • 4000K
Lens Options
  • with Clear Lens
  • with Frosted Lens
  • with Clear Lens and Hex Cell Louvre
Accessories
  • Glare Guard
  • Snoot
LED
  • Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP66
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
  • Solid Powder Coated Aluminium
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components – 10 years
  • Aluminium Components – 5 years
  • Electronics – 5 Years
  • Solid Copper Components – 10 Years
Standards
  • IEC/BS/AS/NZ 60598
Recommended Power Supplies
  • 24VDC POWER SUPPLY REQUIRED for 24VDC Input ( CV format )
  • TRANSFORMER REQUIRED for 12VAC Parallel Wired ( CV format )

Downloads
Specifications / Data Sheets
Icon

Hunza Spot Light with Weighted Base BS/W/L - Specification Sheet

1 file(s) 456.59 KB
Download

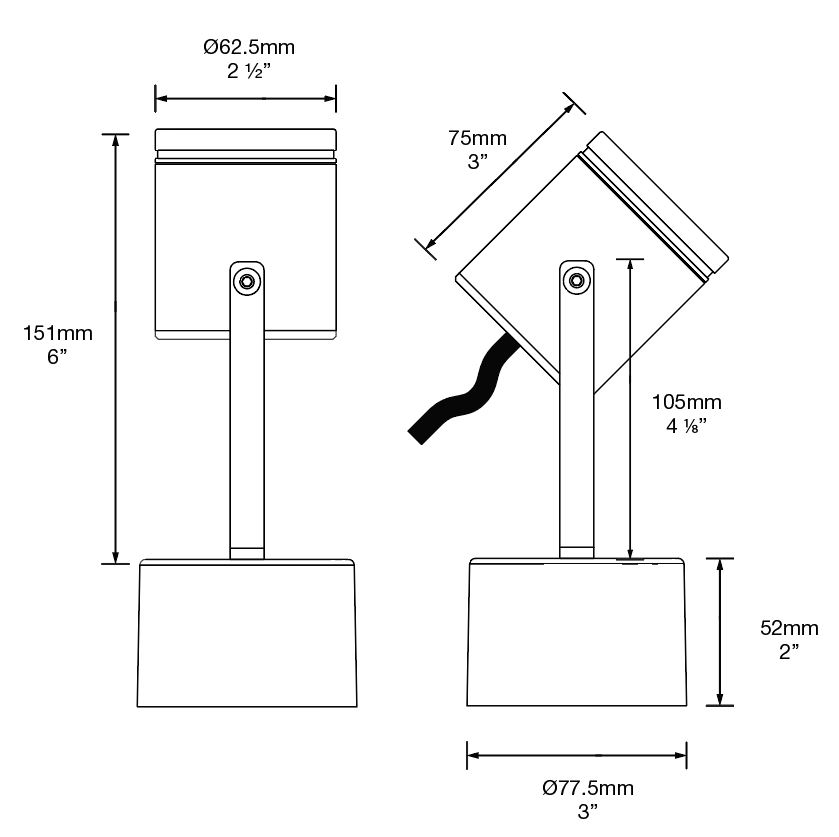

Product Diagrams
Icon

Hunza Spot Light with Weighted Base - BS-W-L - Product Diagram

1 file(s) 78.71 KB
Download
Installation Instructions
Icon

Hunza Bracket and Weighted Base Spot - Installation Instructions International

1 file(s) 341.03 KB
Download
Icon

Hunza Bracket and Weighted Base Spot - Installation Instructions USA

1 file(s) 341.07 KB
Download
Photometric Files
Icon

Hunza Bracket and Weighted Base Spot - Photometric Files

1 file(s) 33.86 KB
Download
CAD Files
Icon

Hunza Spot Light with Weighted Base - BS-W-L - CAD

1 file(s) 297.59 KB
Download
