Step Light Louvre Square
SKUSLLUSQ/L
The Step Light Louvre Square has a flush to the surface look with no protrusions. The 45 degree louvre eliminates all upward light, making this luminaire ideal for providing illumination of steps and low level features such as exterior paved areas.
Fixtures must not be pressure washed (water blasted).
| LED Chip | Cree® XHP-50-2 Plug and Play field replaceable LED board |
|---|---|
| Luminaire Output* | 600 lm @ 420 mA (6 W) 420 lm @ 700 mA (4 W) 240 lm @ 350 mA (2 W) Delivered from the luminaire with an unobstructed beam. |
| Lumens Per Watt* | 100 lm/W 105 lm/W 120 lm/W Delivered from the luminaire with an unobstructed beam. |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) | 90+ Standard |
| Ingress Protection | IP66 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards |
|
Specifications / Data Sheets

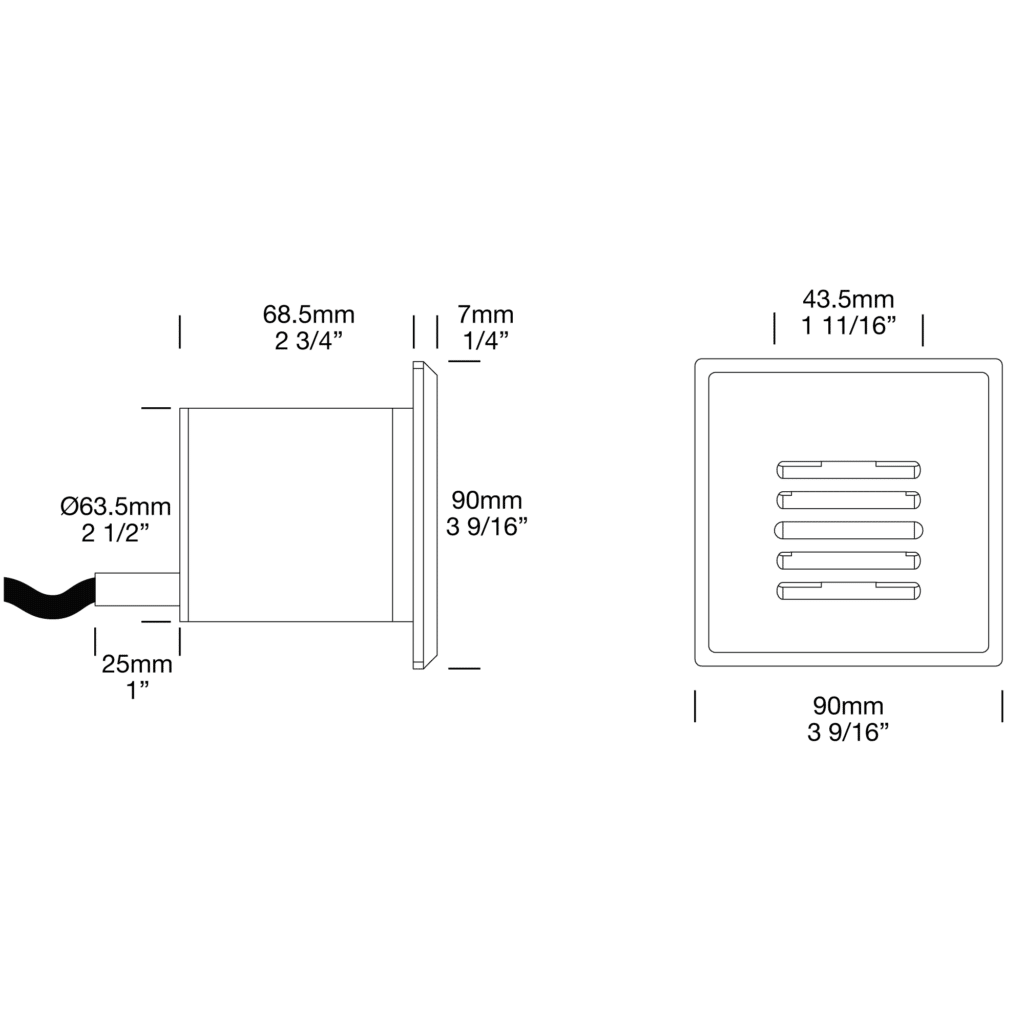

Product Diagrams
Installation Instructions
Photometric Files
