Name: Surface Mount Path Light
SKU: PLSM/L

Lumen Output*	120 lumens @ 700mA (2 Watts) 60 lumens @ 350mA (1 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.	60 lm/W

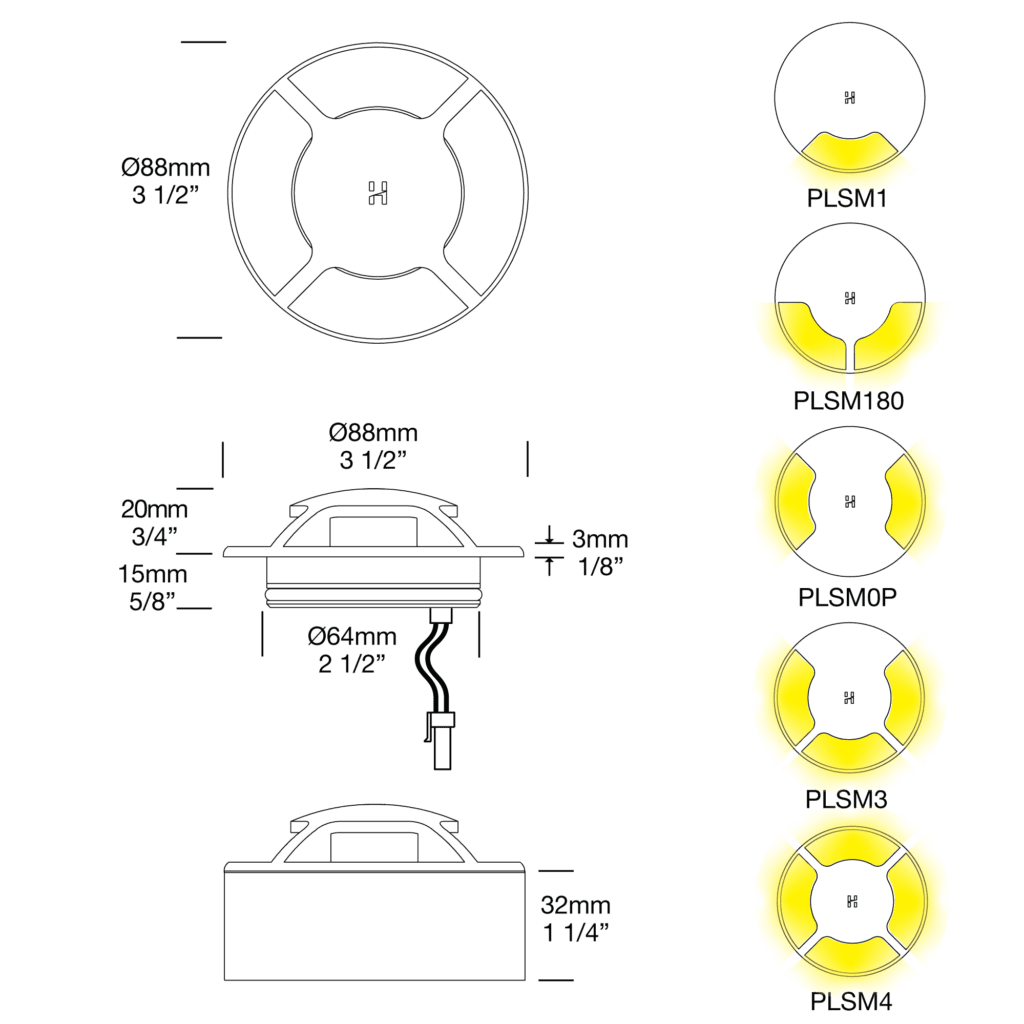

Luminaire Options	Surface Mount Path Light – 1 Facet Surface Mount Path Light – 180° Facet Surface Mount Path Light – 2 Facet (Opposite) Surface Mount Path Light – 3 Facet Surface Mount Path Light – 4 Facet
Power Options	700mA CC Input – Series Wired 3Vf 2.1W 12VAC Input 350mA – Parallel Wired 1.05W 12VAC Input 700mA – Parallel Wired 2.1W 24VDC Input – Parallel Wired 2.1W
Material Options	316 Marine Grade Stainless Steel Solid Copper
Beam Angle Options	90 Degree 90×90 Degree 180 Degree 270 Degree 360 Degree
Colour Temperature Options	2700K 3000K 4000K
Lens Options	with Clear Lens
LED	Cree® XPG-3 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs
CRI	90+ Standard
Ingress Protection	IP66
Materials	316 Marine Grade Stainless Steel Solid Copper
Warranty	Excludes third party lamps and power supplies 316 Stainless Steel Components – 10 years Electronics – 5 Years Solid Copper Components – 10 Years
Standards	CE IEC/BS/AS/NZ 60598 UL 2108 UL 1838
Recommended Power Supplies	Constant Current Driver REQUIRED for Series Wired ( CC format ) 24VDC Power Supply REQUIRED for 24VDC Parallel Wired ( CV format ) TRANSFORMER REQUIRED for 12VAC Parallel Wired ( CV format )

Hunza® Surface Mount Path Light
