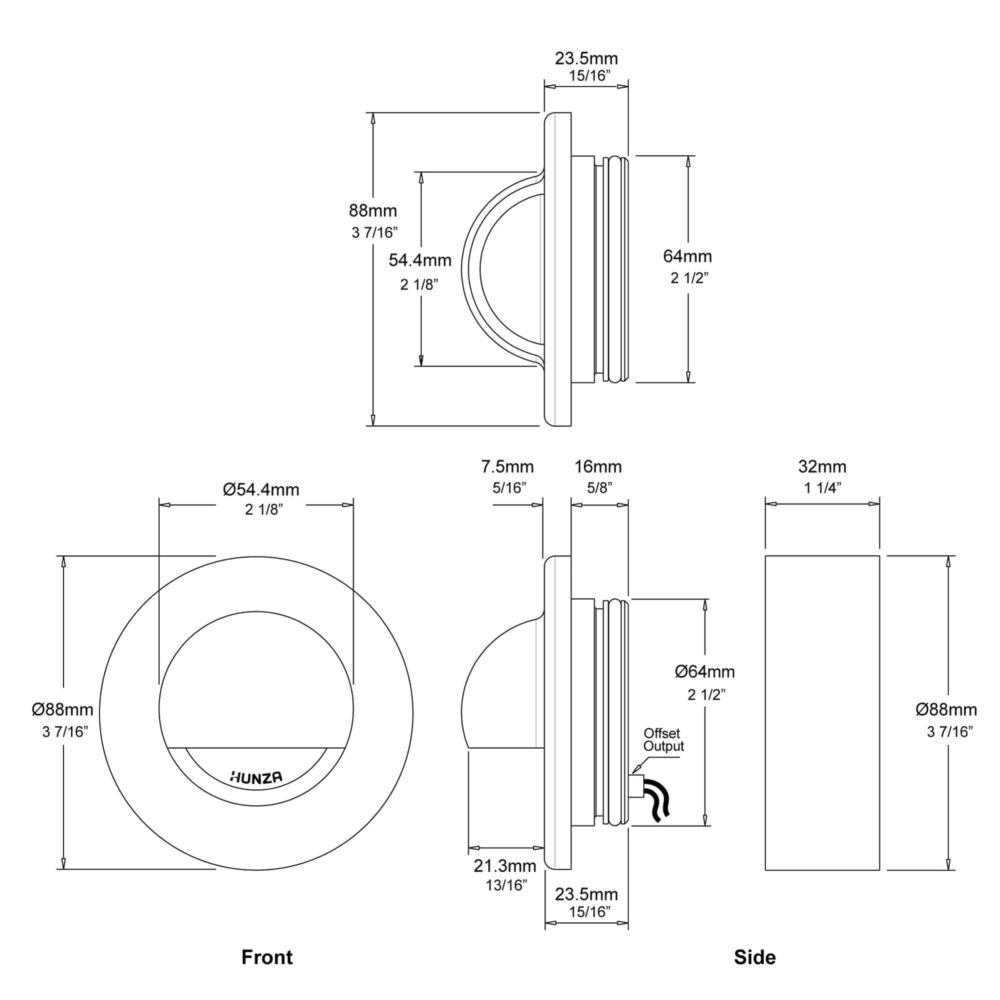

Diagram

Surface Mount Solid Eyelid Light

SKUSMSE/L

The Surface Mount Solid Eyelid Light is an ideal mounting solution for surfaces where a recessed fitting is not suitable.

Perfect for: Step lighting applications where the fixture needs to be unobtrusive or concealed.
Lighting: The eyelid masks two-thirds of the light, which eliminates all upward light and projects light downwards.
Mounting: Surface Mounted
Manufactured in New Zealand.

Note: Fixtures must not be pressure washed (water blasted).

Opens every option below so you can see everything at once.

Power Options

Material Options

Colour Temperature Options

Accessories

LED Chip	Cree® XPG-3 Plug and Play field replaceable LED board
Luminaire Output*	120 lm @ 700 mA (2 W) 60 lm @ 350 mA (1 W) Delivered
Lumens Per Watt*	60 lm/W Delivered
LED Life Expectancy	50,000 Hrs @ L70
CRI (3000K)	90+ Standard
Ingress Protection	IP66
Warranty	316 Stainless Steel Components - 10 years Electronics - 5 Years Solid Copper Components - 10 Years Excludes third party lamps and power supplies.
Standards	CE IEC/BS/AS/NZ 60598
