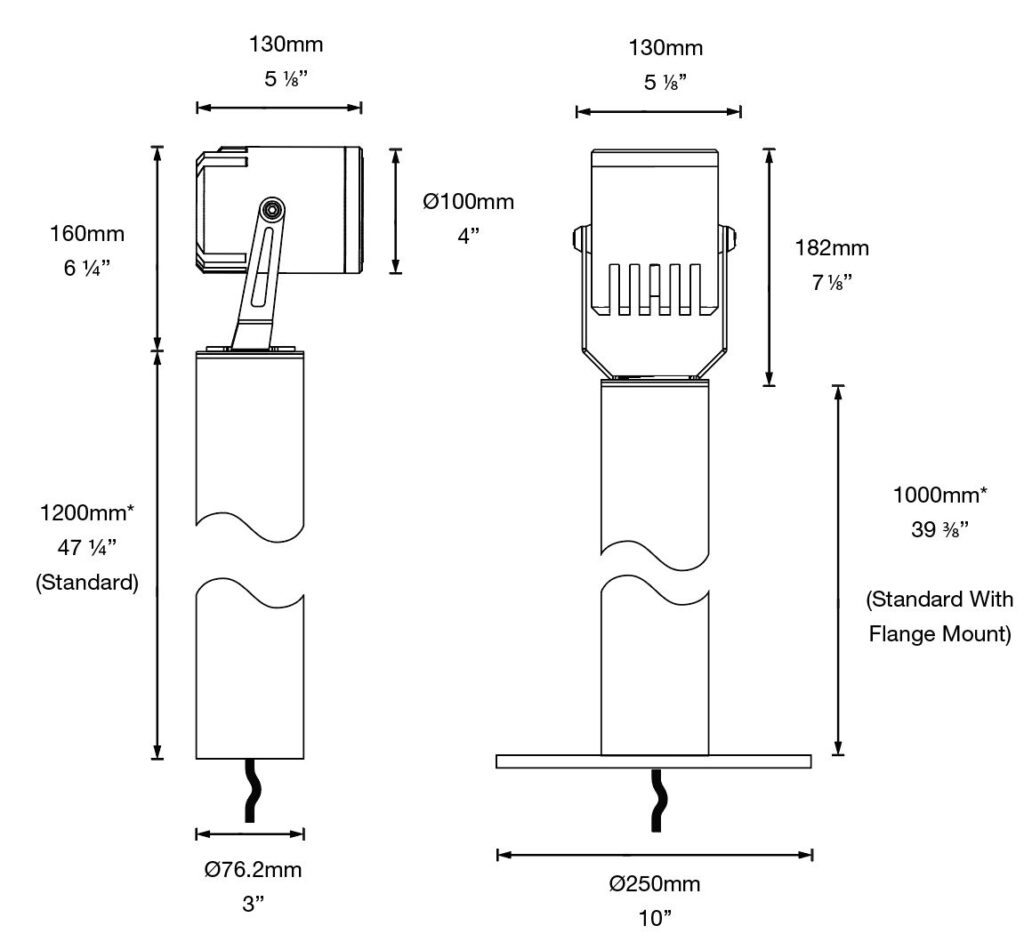

Product Diagram
Product Specifications
| CRI |
|
|---|---|
| Ingress Protection | IP66 |
| Impact Protection | IK10 |
| Warranty |
Excludes third party lamps and power supplies.
|
| Lumen Output | 2700 lumens @ 700 (26 Watts) Delivered from the Luminaire with an unobstructed beam.
|
| Lumens per Watt | 100 lm/W
Delivered from the Luminaire with an unobstructed beam.
|
| Lens Options |
|
| LED | Cree® CXB 1830 Plug and Play field replaceable LED board |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| Standards |
|
| Recommended Power Supplies |
|
Hunza® Ultra 35 Pole Spot
PS/U35
The Ultra 35 Pole Spot has been designed to be mounted on horizontal surfaces. It can be used for wall washing, to provide directional light and to highlight architectural features and structural elements. It has a fully adjustable head allowing 360 degrees rotation and 0-120 degrees elevation and can be fixed in place using the inbuilt locking mechanism. The pole height can be specified, as required, up to 2 metres 6ft 6″.
Downloads
Specifications / Data Sheets
Product Diagrams
Installation Instructions
Photometric Files
