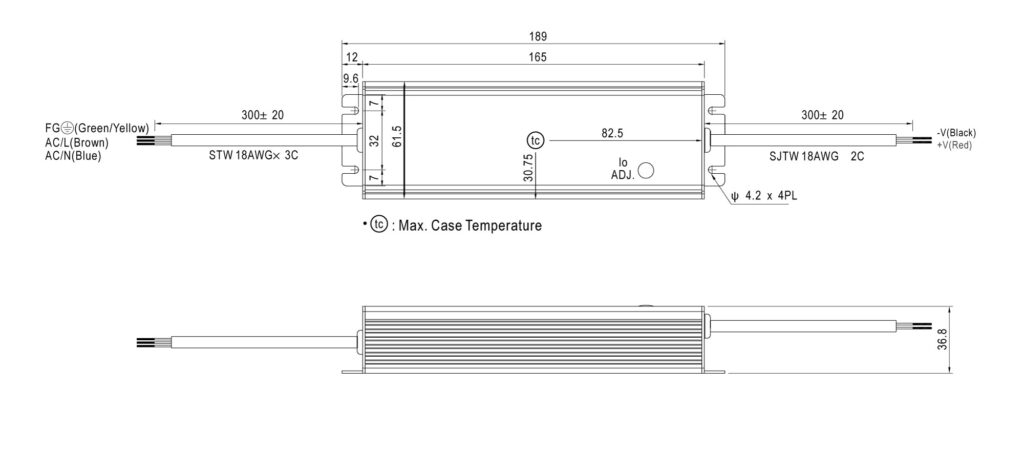

Product Diagram
Product Specifications
| Ingress Protection | IP65 |
|---|---|
| Warranty |
5 Year Third Party Warranty Excludes third party lamps and power supplies.
|
| Driver Type | Constant Current |
| Dimming | Dim-to-off (0-10V or 10V PWN Signal or Resistive) |
| Output Voltage | 9-93V |
| Output Power (W) | 65W |
| Output Current | 700mA |
| Ambient/Operating Temperature (ta) | -40 ...+80°C |
| Input Voltage | 180-528VAC |
| Input Current | 0.39A |
| Frequency | 47/63Hz |
| Standards |
|
| Weight | 0.77 kg ( 1.7 lb ) |
| Dimensions | 18.9 x 6.15 x 3.68 cm ( 7.44" x 2.42" x 1.45" ) |
Mean Well 700mA IP65 Constant Current Power Supply | 65W – Adjustable
DR CC HVGC-65-700A
HVGC-65-700A is a 65W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-65-1050B operates from 180-528VAC and offers models with a rated current of 700mA. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40°C~+80°C case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-65-700A is equipped with output adjustable via potentiometer, so as to provide the optimal design flexibility for LED lighting system.
- Wide input range 180~ 528VAC
- Constant Current mode output
- Metal housing with Class I design
- Built-in active PFC function
- IP65 design for indoor or outdoor installations
- Output adjustable via potentiometer
- Typical lifetime>50000 hours
- 5 years warranty
Downloads
Specifications / Data Sheets
Mean Well Constant Current Power Supply - HVGC-65 - Specification Sheet
1 file(s) 160.18 KB
Product Diagrams
