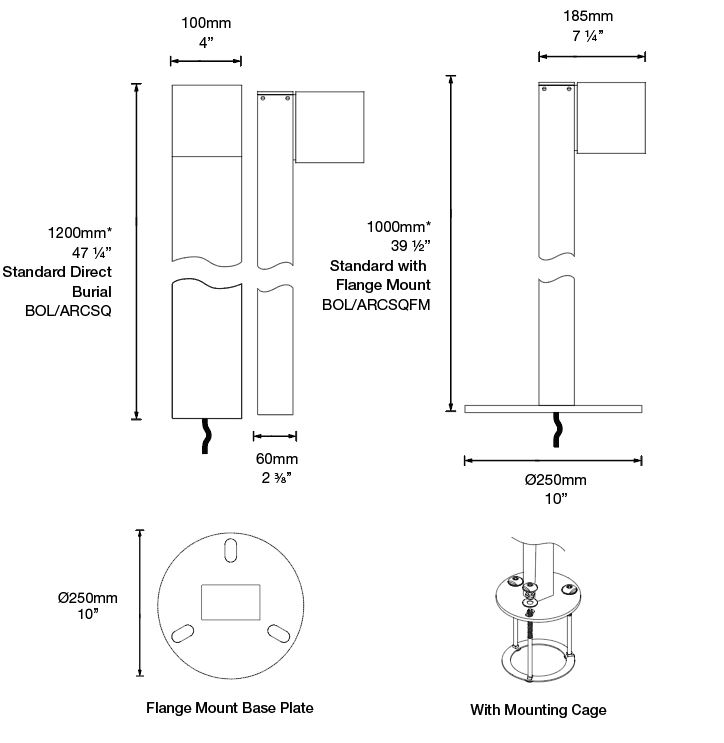

Product Diagram
Product Specifications
| CRI |
|
|---|---|
| Ingress Protection | IP66 |
| Impact Protection | IK10 |
| Warranty |
Excludes third party lamps and power supplies.
|
| Lumen Output | 3000 lumens @ 700mA (26 Watts) Delivered from the Luminaire with an unobstructed beam.
|
| Lumens per Watt | 100 lm/W
Delivered from the Luminaire with an unobstructed beam.
|
| Lens Options | with Clear Lens |
| LED | Cree® CXB 1830 Plug and Play field replaceable LED board |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| Standards |
|
| Recommended Power Supplies |
|
Hunza® Arch Bollard Square
BOL/ARCSQ
The Arch Bollard is ideal for commercial application. Best suited for ground lighting on driveways and pathways. It has a minimal, contemporary aesthetic that will blend into any architectural setting. This luminaire features a Type II optic that casts a very long but narrow downwards illumination, or Type IV optic which gives a forward throw beam pattern. The result is an extremely low glare light fitting with precise light placement.
Downloads
Specifications / Data Sheets
Product Diagrams
Installation Instructions
Photometric Files
