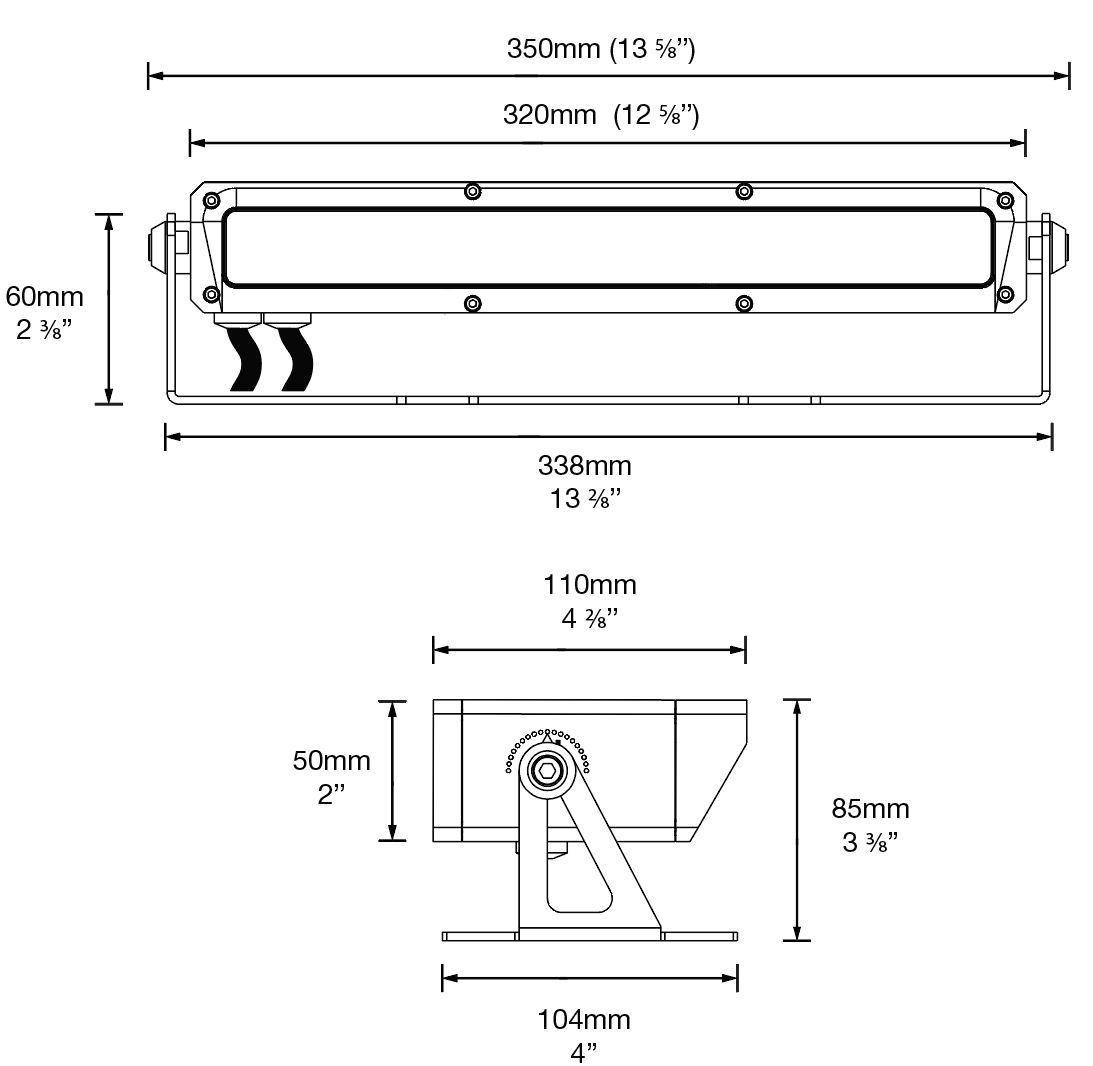

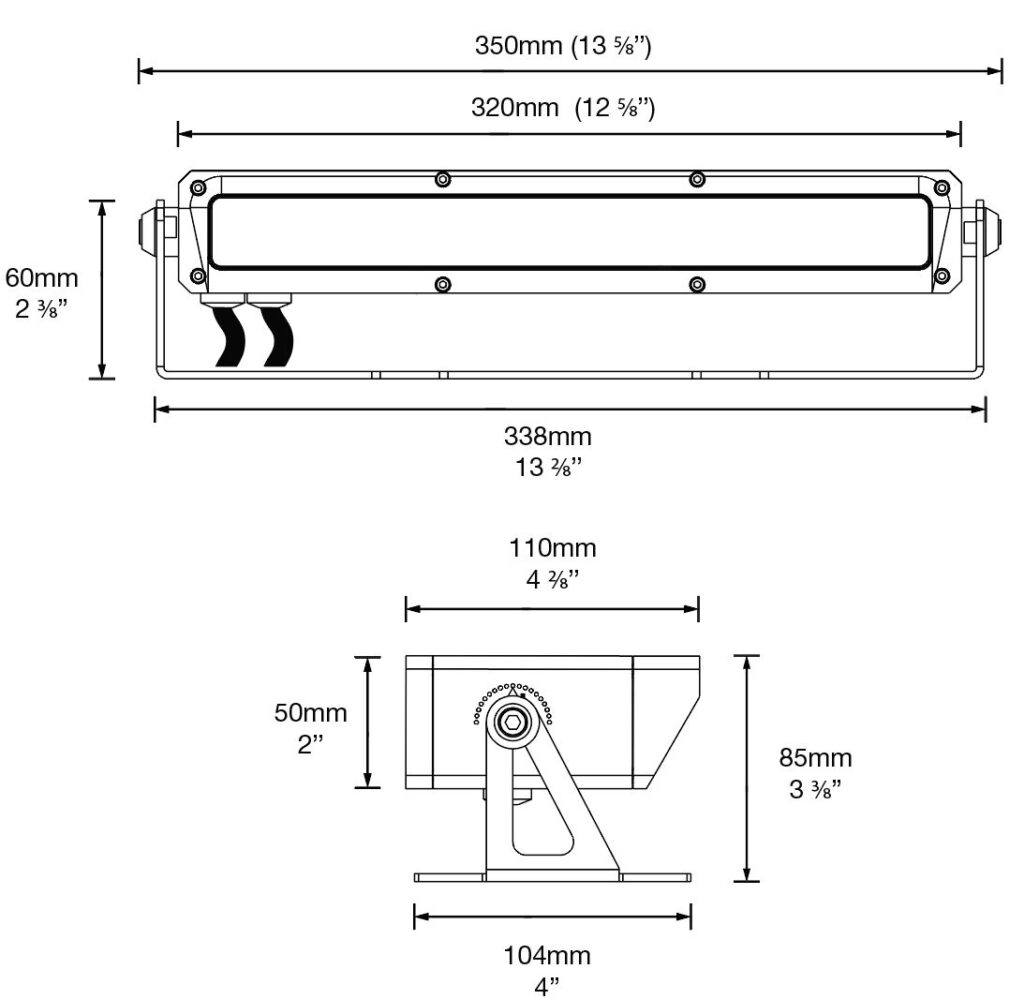

Product Diagram
Product Specifications
| CRI | 90+ Standard |
|---|---|
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Warranty |
Excludes third party lamps and power supplies.
|
| Lumen Output | 2300 lumens @ 700mA (26 Watts) Delivered from the Luminaire with an unobstructed beam.
|
| Lumens per Watt | 85 lm/W
Delivered from the Luminaire with an unobstructed beam.
|
| Lens Options | with Clear Lens |
| LED | 12 x Cree® XPG-3 replaceable linear board |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| Standards |
|
| Recommended Power Supplies |
|
| Weight | 4 kg ( 8.82 lb ) |
| Dimensions | 33.8 x 10.4 x 8.5 cm ( 13.31" x 4.09" x 3.35" ) |
Hunza® Blade
BLD/L
The Blade is a rectangular shaped projector. This makes it ideal to use as a surface grazing light or wall washer. The Blade’s linear design means the projected light has a square edge rather than a scalloped shaped beam. Other features include built in glare reduction, anti-syphon and IP68 water protection.
Note: Fixtures must not be pressure washed (water blasted).
Downloads
Specifications / Data Sheets
Product Diagrams
Installation Instructions
Photometric Files
Other Files
