Name: Catenary Mount
SKU: CAT/L

Lumen Output*	600 lumens @ 1050mA (6 Watts) 420 lumens @ 700mA (4 Watts) 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.	100 lm/W
Power Options	1050mA CC Input – Series Wired 6Vf 12VAC Input 350mA – Parallel Wired 2.1W 12VAC Input 700mA – Parallel Wired 4.2W 24VDC Input – Parallel Wired 4.2W 12VAC Input 1050mA – Parallel Wired 6.3W
Material Options	316 Stainless Steel Solid Copper Black Bronze Dark Grey Corten Olive Green Silver Star Arctic White Fine Silver White Birch
Beam Angle Options	15 Degree 25 Degree 38 Degree 60 Degree
Colour Temperature Options	2700K 3000K 4000K
Lens Options	with Clear Lens with Frosted Lens
Accessories	Glare Guard Snoot
LED	Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs
CRI	90+ Standard
Ingress Protection	IP66
Materials	316 Stainless Steel Solid Copper Solid Powder Coated Aluminium
Warranty	Excludes third party lamps and power supplies 316 Stainless Steel Components – 10 years Aluminium Components – 5 years Electronics – 5 Years Solid Copper Components – 10 Years
Standards	CE IEC/BS/AS/NZ 60598 UL 2108 UL 1838
Recommended Power Supplies	DRIVER SUPPLIED for Series Remote Wired (CC format) 24VDC Power Supply REQUIRED for 24VDC Parallel Wired ( CV format ) TRANSFORMER REQUIRED for 12VAC Parallel Wired ( CV format )

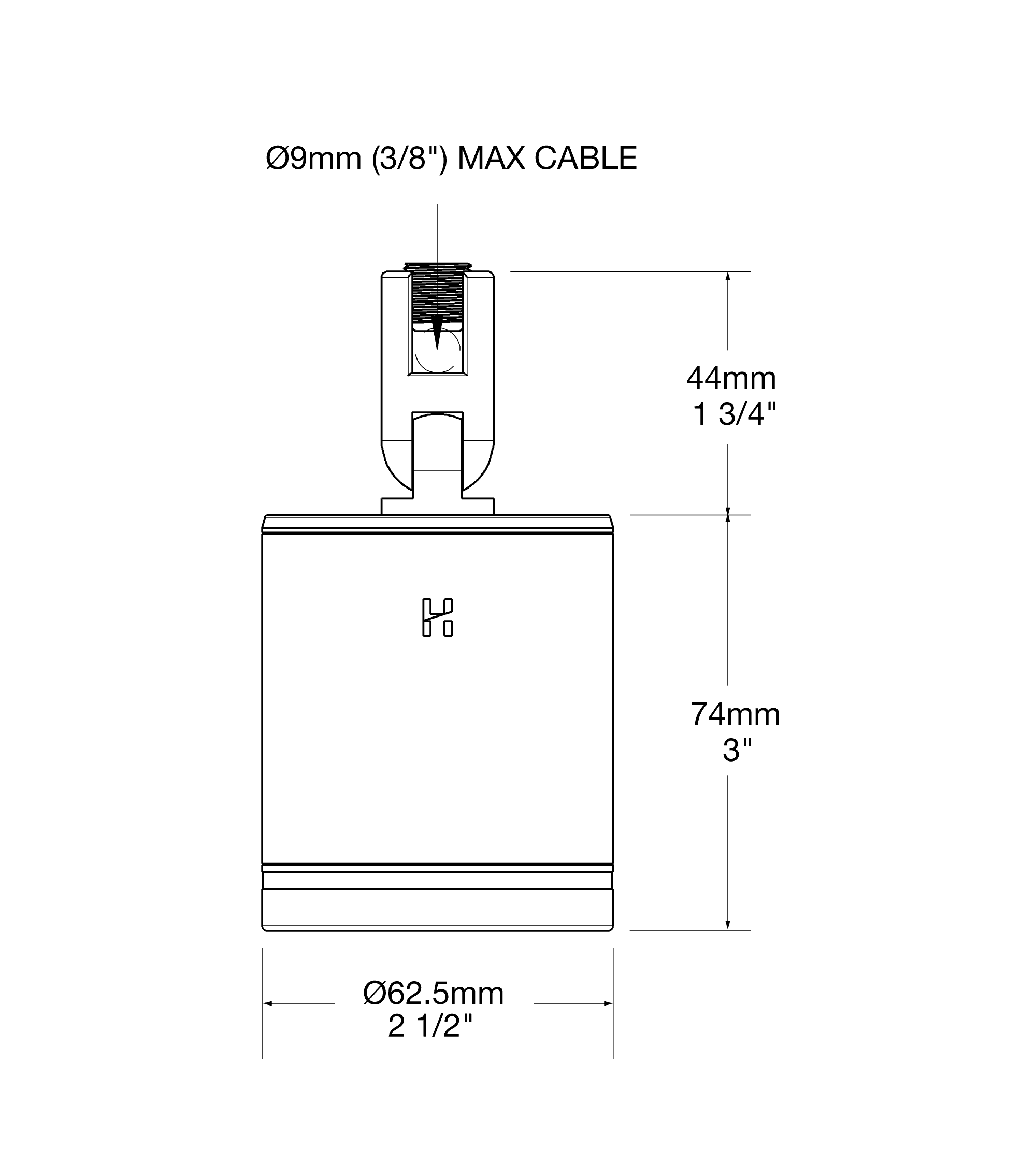

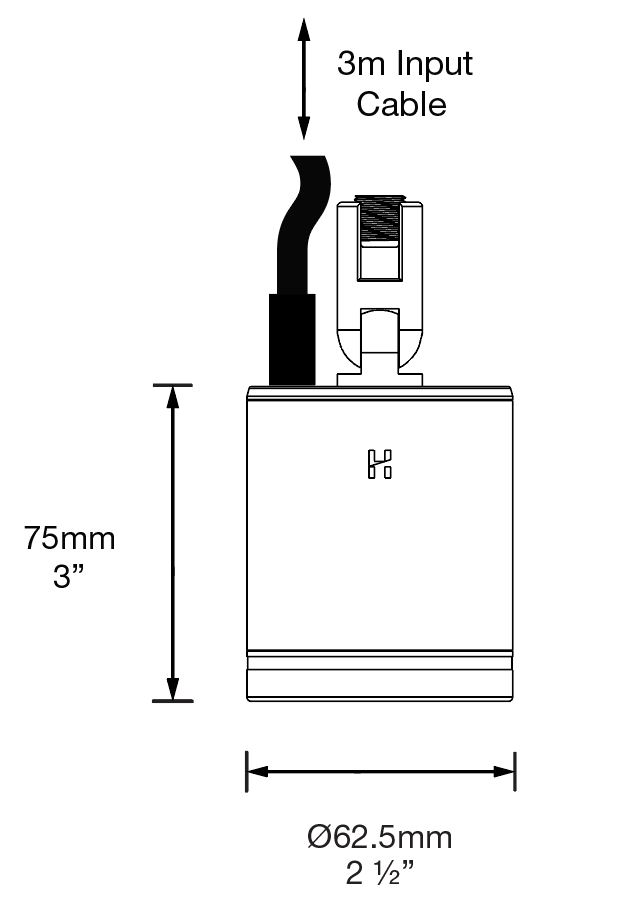

Dimensions	6.2 x 6.2 x 11.9 cm ( 2.44" x 2.44" x 4.69" )
Weight	1.16 kg ( 2.56 lb )

Hunza® Catenary Mount
