Name: Cube Bollard Quartz
SKU: CBOLQZ/L

Lumen Output*	120 lumens @ 700mA (2 Watts) 60 lumens @ 350mA (1 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.	60 lm/W

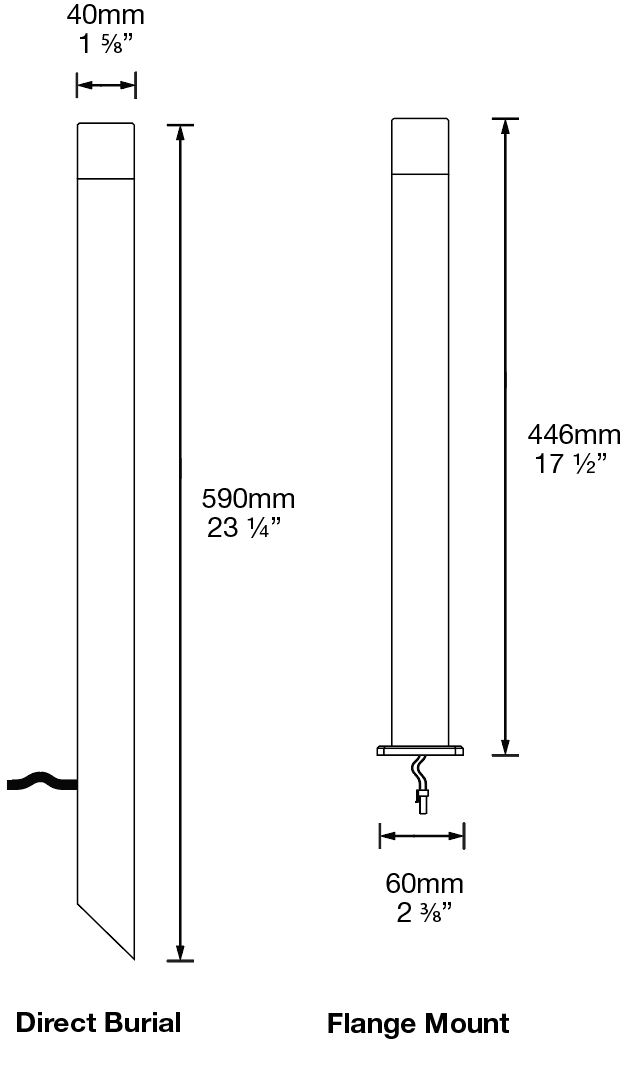

Luminaire Options	Cube Bollard Quartz – Direct Burial
Warranty	Excludes third party lamps and power supplies Aluminium Components – 5 years Electronics – 5 Years
Power Options	700mA CC Input – Series Wired 3Vf 2.1W 12VAC Input 350mA – Parallel Wired 1.05W 12VAC Input 700mA – Parallel Wired 2.1W 24VDC Input – Parallel Wired 2.1W
Material Options	Black Bronze Dark Grey Corten Olive Green Silver Star Arctic White Fine Silver White Birch
Beam Angle Options	360 Degree
Colour Temperature Options	2700K 3000K 4000K Amber Blue Red Green
Lens Options	with Clear Lens
Mounting Options	Flange Mount
LED	Cree® XPG-3 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs
CRI	90+ Standard
Ingress Protection	IP66
Materials	Solid Powder Coated Aluminium
Standards	CE IEC/BS/AS/NZ 60598 UL 2108 UL 1838
Recommended Power Supplies	Constant Current Driver REQUIRED for Series Wired ( CC format ) 24VDC Power Supply REQUIRED for 24VDC Parallel Wired ( CV format ) TRANSFORMER REQUIRED for 12VAC Parallel Wired ( CV format )

Hunza® Cube Bollard Quartz
