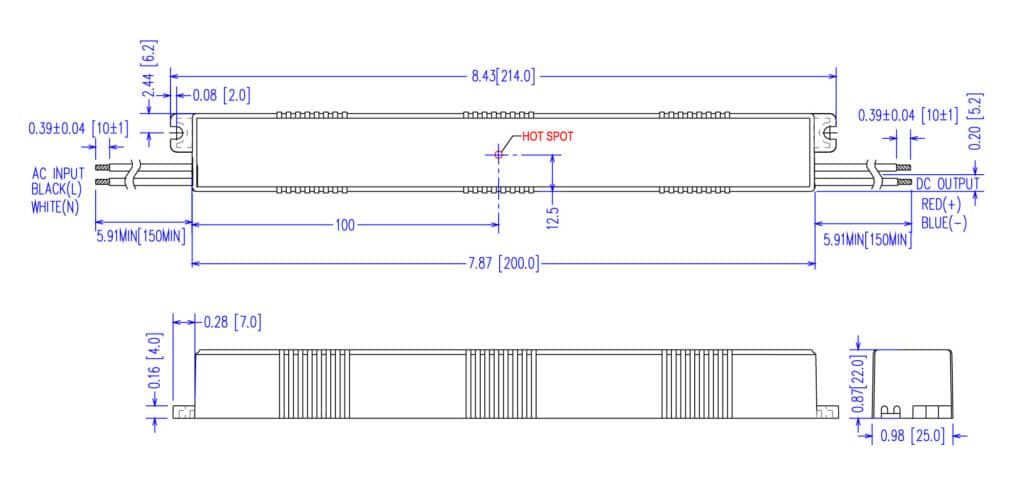

Product Diagram
Product Specifications
| Ingress Protection | IP66 |
|---|---|
| Warranty |
Third Party Warranty* Excludes third party lamps and power supplies.
|
| Driver Type | Constant Voltage |
| Input Voltage | 110-277VAC |
| Input Current | 0.3A (MAX) |
| Frequency | 50/60Hz |
| Power Factor | >0.94 |
| Output Voltage | 6-12V |
| Output Current | 700mA |
| Output Power (W) | 17W |
| Weight | 0.196 kg ( 0.43 lb ) |
| Dimensions | 21.4 x 2.5 x 2.2 cm ( 8.43" x 0.98" x 0.87" ) |
EPtronics 17W 24VDC Constant Voltage Driver
LD17W-24
The EPTronics LD17W-24 is a 17Watt electronic, constant voltage with 24VDC output.
Used in the 24VDC powered Linear Light
