EPtronics 700mA 18-54V Constant Current Driver - Dim-to-off
EPtronics 700mA 18-54V Constant Current Driver - Dim-to-off - Image 2

EPtronics 700mA 18-54V Constant Current Driver – Dim-to-off

LD35W-54-C0700-RD

Used in the Blade Product

Find a Distributor
SKU: LD35W-54-C0700-RD Categories: , , , , Tag:
Product Specifications
    Driver Type
    • Constant Current
    Dimming
    • 0-10V Dimming
    Output Voltage
    • 18-54V
    Output Current
    • 700mA
    Output Power (W)
    • 35W
    Input Voltage
    • 110-277VAC
    Input Current
    • 0.5A Max
    Frequency
    • 50/60Hz
    Ingress Protection
    • IP66
    Warranty
    • Third Party Warranty*
    Dimensions
    • 23.1 x 2.68 x 2.6 cm ( 9.09" x 1.06" x 1.02" )
    Weight
    • 0.25 kg ( 0.55 lb )

    Downloads
    Specifications / Data Sheets
    Icon

    EPtronics 700mA 18-54V Constant Current Driver LD35W-54-C0700-RD – Specification Sheet

    1 file(s) 789.23 KB
    Download

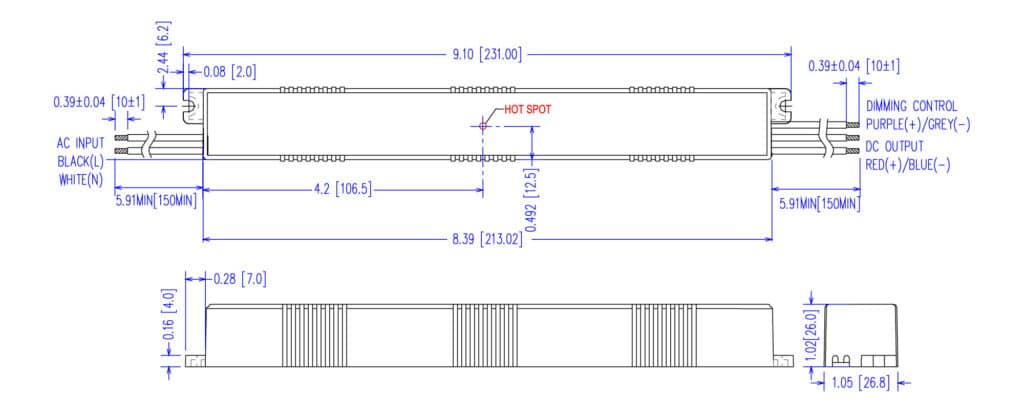

    Product Diagrams
    Icon

    EPtronics 700mA 18-54V Constant Current Driver LD35W-54-C0700-RD – Product Diagram

    1 file(s) 278.36 KB
    Download
