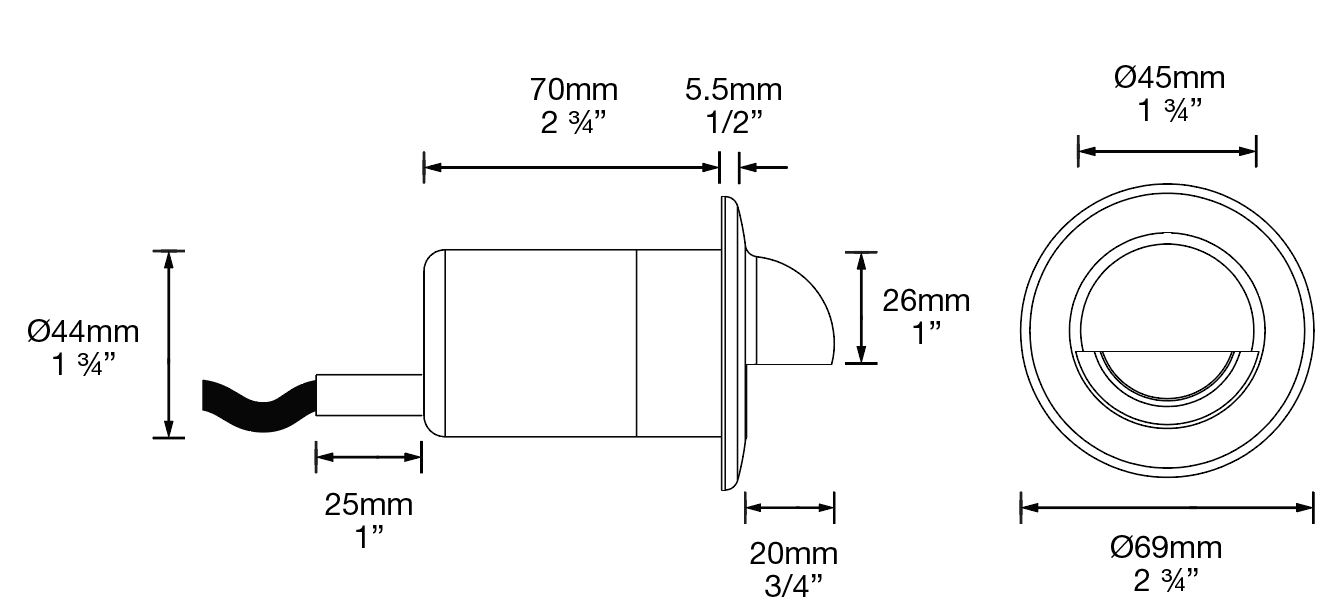

Product Diagram

Product Specifications

CRI	90+ Standard
Ingress Protection	IP67
Warranty	316 Stainless Steel Components - 10 years Electronics - 5 Years Solid Copper Components - 10 Years Excludes third party lamps and power supplies.
Lumen Output	420 lumens @ 700 (4 Watts) 240 lumens @ 350 (2 Watts) Delivered from the Luminaire with an unobstructed beam.
Lumens per Watt	105 lm/W Delivered from the Luminaire with an unobstructed beam.
Lens Options	with Clear Lens and Hex Cell Louvre (Standard) with Frosted Lens
LED	Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
Standards	CE IEC/BS/AS/NZ 60598 UL 2108 UL 1838
Recommended Power Supplies	Constant Current Driver REQUIRED for Series Wired ( CC format ) 24VDC Power Supply REQUIRED for 24VDC Parallel Wired ( CV format ) TRANSFORMER REQUIRED for 12VAC Parallel Wired ( CV format )

Hunza® Euro Step Light Solid Eyelid

Name: Euro Step Light Solid Eyelid
SKU: ESLS/L

ESLS/L

The Euro Step Light Solid Eyelid is an extra compact luminaire, designed for step lighting applications where the fixture needs to be unobtrusive or concealed. The eyelid masks two thirds of the light, which eliminates all upward light.
