Name: Floor Light Square
SKU: FLSQ/L

Lumen Output*	1050 lumens @ 600mA (6 Watts) 420 lumens @ 700mA (4 Watts) 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.	100 lm/W
Power Options	1050mA CC Input – Series Wired 6Vf 12VAC Input 350mA – Parallel Wired 2.1W 12VAC Input 700mA – Parallel Wired 4.2W 24VDC Input – Parallel Wired 4.2W 12VAC Input 1050mA – Parallel Wired 6.3W
Material Options	316 Marine Grade Stainless Steel Solid Copper
Beam Angle Options	15 Degree 25 Degree 38 Degree 60 Degree
Colour Temperature Options	2700K 3000K 4000K
Lens Options	with Clear Lens with Frosted Lens

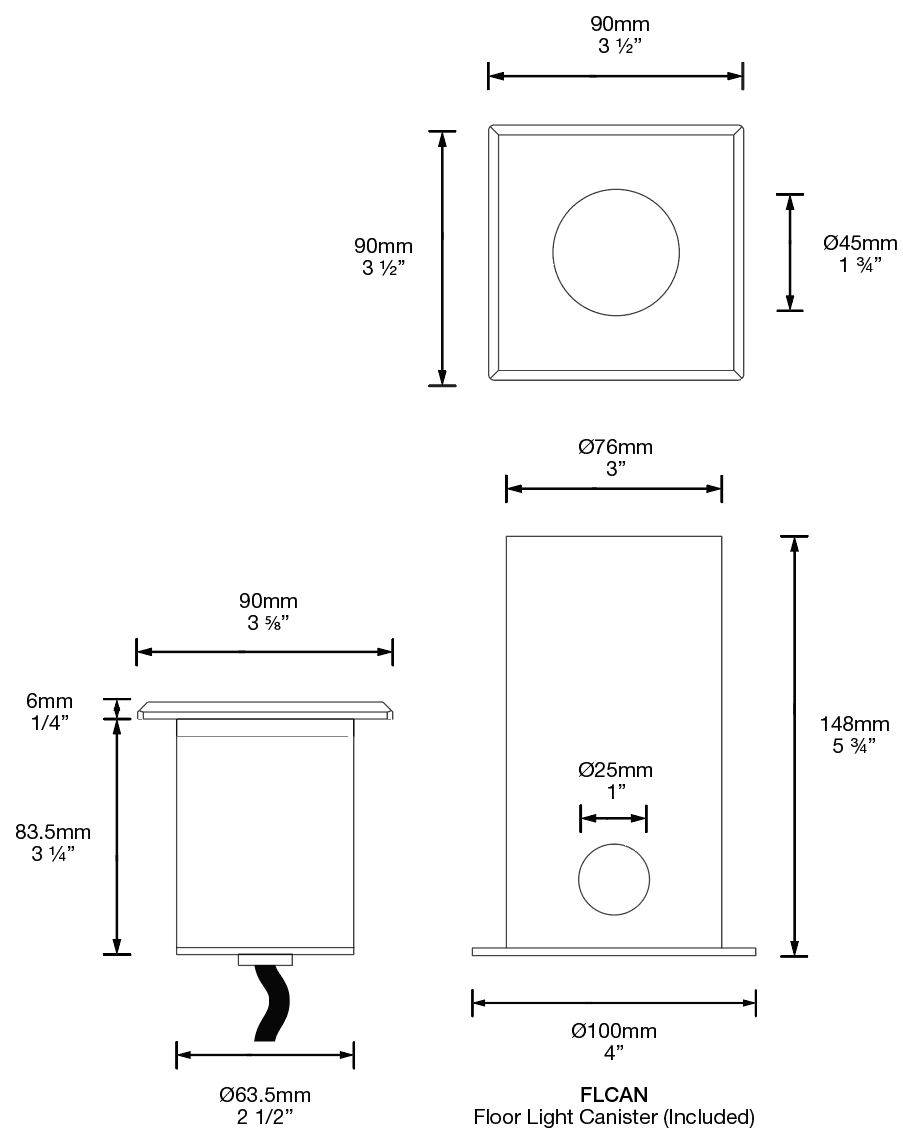

Mounting Options	Deck Mount Canister – Aluminium Floor Light Canister Floor Light Canister 200mm Stainless Steel Canister
Accessories
LED	Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs
CRI	90+ Standard
Ingress Protection	IP67
Materials	316 Marine Grade Stainless Steel Solid Copper
Warranty	Excludes third party lamps and power supplies 316 Stainless Steel Components – 10 years Electronics – 5 Years Solid Copper Components – 10 Years
Standards	IEC/BS/AS/NZ 60598 UL 2108 UL 1838 CE
Recommended Power Supplies	Constant Current Driver REQUIRED for Series Wired ( CC format ) 24VDC Power Supply REQUIRED for 24VDC Parallel Wired ( CV format ) TRANSFORMER REQUIRED for 12VAC Parallel Wired ( CV format )

Hunza® Floor Light Square
