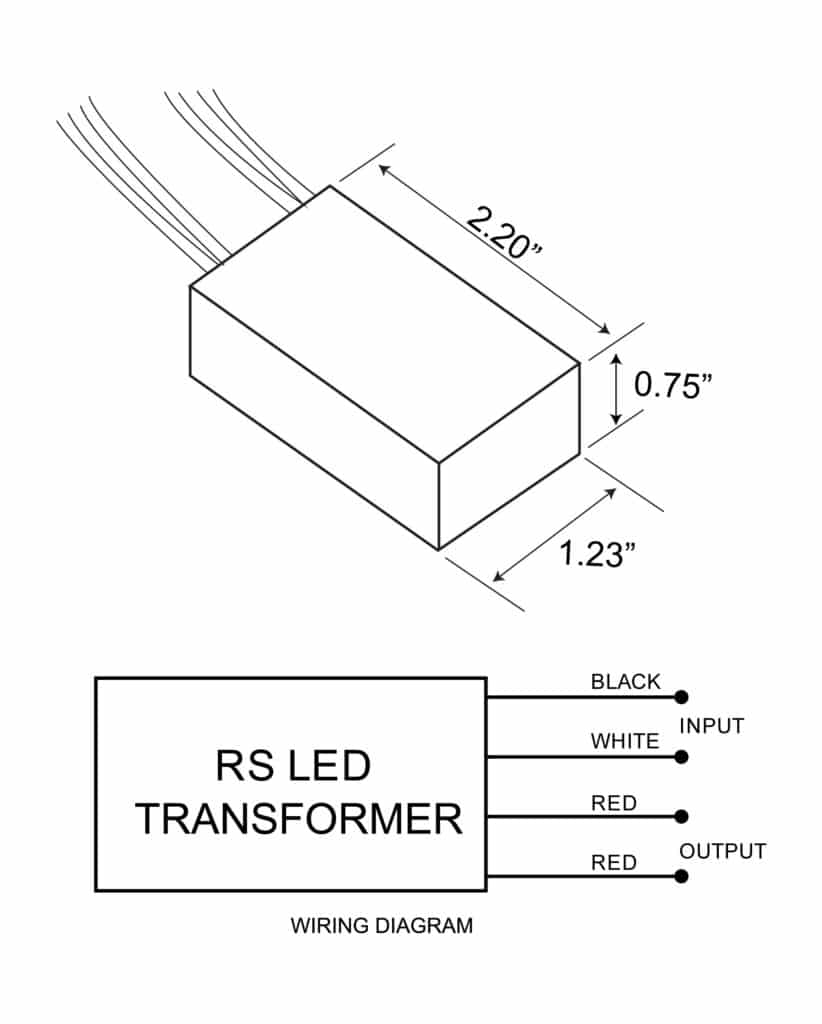

Product Diagram
Product Specifications
| Warranty |
Third Party Warranty* Excludes third party lamps and power supplies.
|
|---|---|
| Driver Type | 12VAC |
| Dimming | ELV |
| Output Voltage | 12VAC |
| Output Power (W) | 60W |
| Input Voltage | 120VAC |
| Input Current | 0.6A |
| Frequency | 50/60Hz |
| Ambient/Operating Temperature (ta) | -20 …+90°C |
| Standards |
|
| Weight | 0.08 kg ( 0.18 lb ) |
| Dimensions | 5.588 x 3.1242 x 1.905 cm ( 2.2" x 1.23" x 0.75" ) |
Hunza® HATCH 120V to 12VAC Retro Driver | 60W
RS12-60 LED
The Hatch RS12-60M-LED is a 60 Watt electronic transformer supplied with Hunza 120 Volt Retro fixtures with Promus drop-in LED lamps. It includes overload protection, short-circuit protection, full range dimming, waterproof potting and aluminium casing.
- No Minimum Load
- Short circuit protection
- Suitable for dry and damp locations
- Withstanding voltage: I/P – O/P 2kVAC
- Surge Rating: NEMA SSL1-2010 Non-roadway 2.5kV
- Operating temperature range: -20°C to 90°C (measured at Tcase)
- Wide Dimming Range
- Recommended ELV Dimming
- Suitable for AC LED or Halogen Loads
