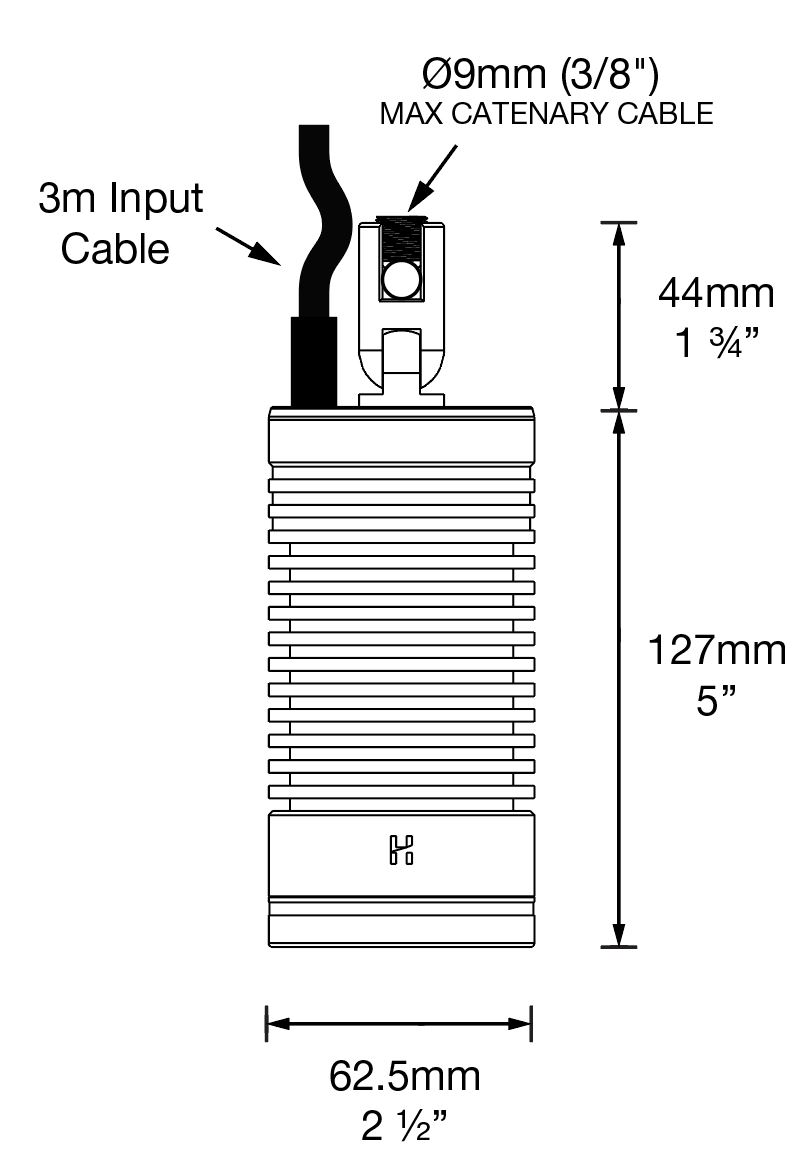

Diagram

Download diagram

Hunza Catenary Mount High Power in black suspended from a catenary wire
Wynyard Quarter in Auckland at dusk with festoon lighting and the Sky Tower
Catenary-mounted luminaires strung between buildings at dusk

Catenary Mount High Power

  • Hanging & Catenary Mount
SKUCAT/HP
The Catenary Mount High Power is a single spotlight that has been specially designed for transverse suspension lighting systems. This provides a dynamic moonlighting effect and can be used for illuminating pathways, streets and walkways. All Hunza High Power products have an extra powder coat layer to ensure maximum corrosion protection. Note: Fixtures must not be pressure washed (water blasted).

Aluminium Components - 5 years
Electronics - 5 Years

Opens every option below so you can see everything at once.

SKU: CAT/HP Categories: , , , , , Tags: ,

Specifications

LED ChipCree® CXB 1512 field replaceable LED board
Luminaire Output*1,200 lm @ 700 mA (12 W)
Delivered from the luminaire with an unobstructed beam.
Lumens Per Watt*100 lm/W
Delivered from the luminaire with an unobstructed beam.
LED Life Expectancy50,000 Hrs @ L70
CRI (3000K)
  • 85+ Optional
  • 90+ Standard
Ingress ProtectionIP66
Warranty
  • Aluminium Components - 5 years
  • Electronics - 5 Years
Excludes third party lamps and power supplies.
Standards
  • CE
  • IEC/BS/AS/NZ 60598
  • Ul 2108*
  • UL 1598*

Documents
