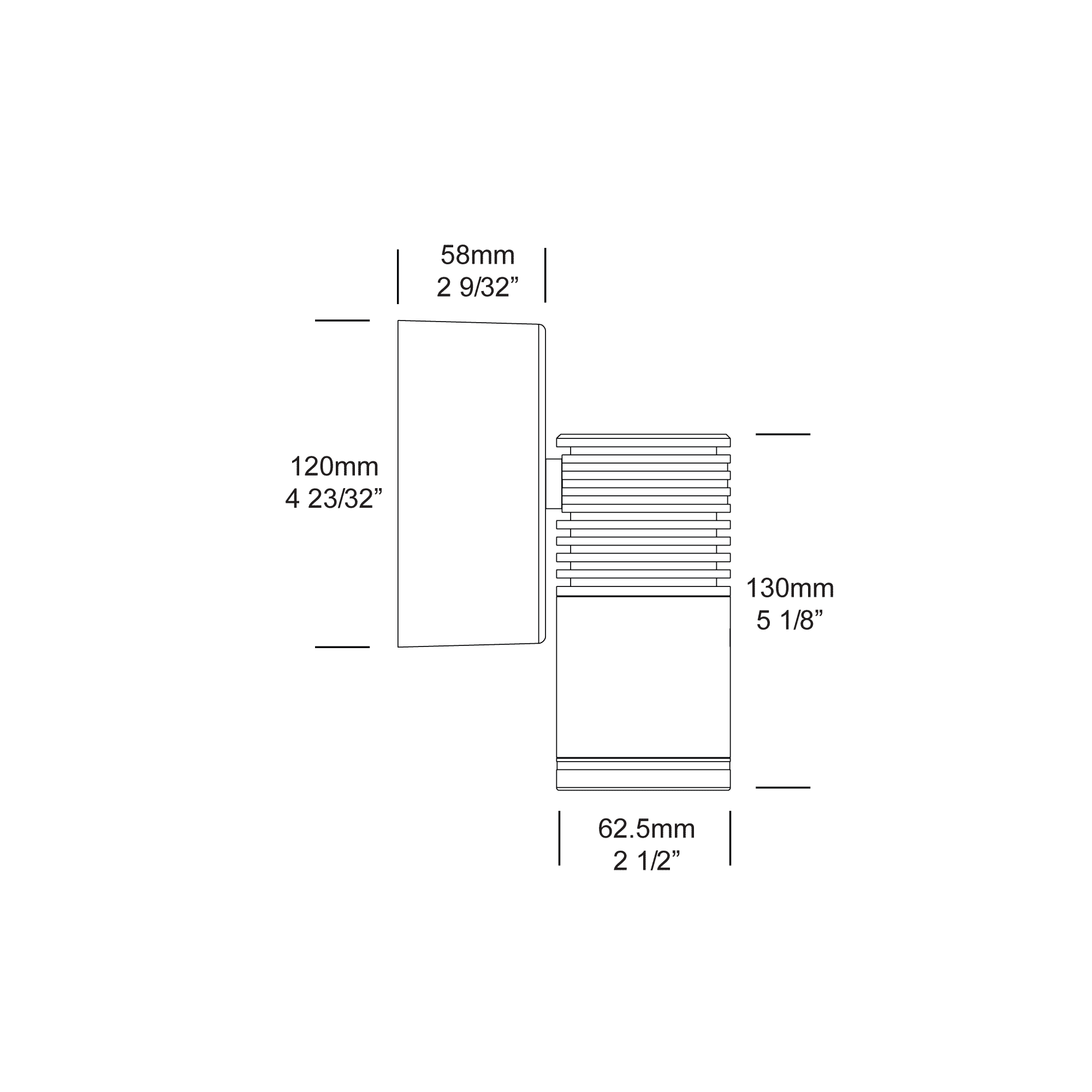

Product Diagram

Product Specifications

CRI	85+ Optional 90+ Standard
Ingress Protection	IP66
Warranty	Aluminium Components - 5 years Electronics - 5 Years Excludes third party lamps and power supplies.
Lumen Output	1200 lumens @ 700 (12 Watts) Delivered from the Luminaire with an unobstructed beam.
Lumens per Watt	100 lm/W Delivered from the Luminaire with an unobstructed beam.
Lens Options	with Clear Lens with Frosted Lens with Hex Cell Louvre Kit
LED	Cree® CXB 1512 field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
Standards	CE IEC/BS/AS/NZ 60598 UL 1598
Recommended Power Supplies	DRIVER SUPPLIED for Series Remote Wired (CC format) 24VDC Power Supply REQUIRED for 24VDC Parallel Wired ( CV format ) NO DRIVER REQUIRED for Retro™ ‘R’ ( 120/240V Input )

Hunza® Wall Down Light High Power

Name: Wall Down Light High Power
SKU: WDL/HP

WDL/HP

The Wall Down Light High Power luminaire has a fixed head to give a dramatic one way, wash-lighting effect on walls. It can be mounted with the lamp directed upwards or downwards and is suitable for mounting onto timber, masonry or stone. This luminaire is water resistant, complete with a mounting base and stainless steel screws. All Hunza High Power products have an extra powder coat layer to ensure maximum corrosion protection.

Note: Fixtures must not be pressure washed (water blasted).
