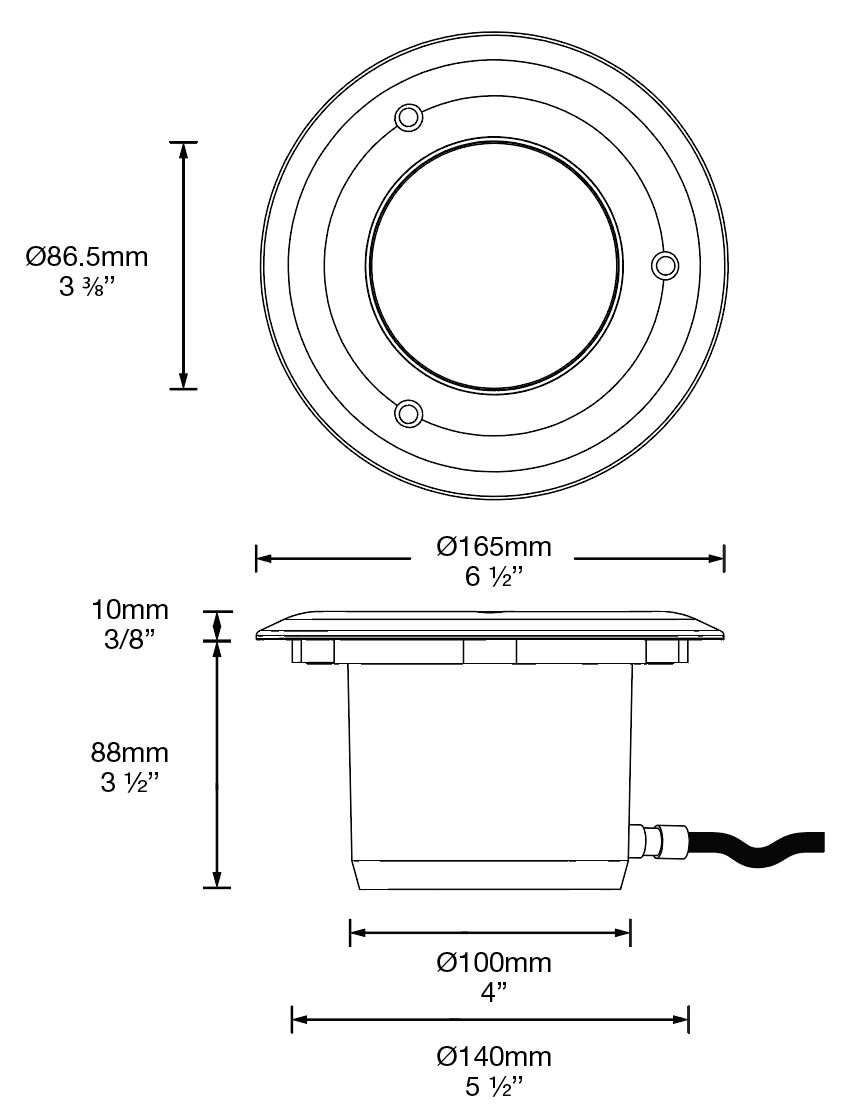

Product Diagram

Product Specifications

CRI	90+ Standard
Ingress Protection	IP68 *not for use in pool or ponds
Warranty	316 Stainless Steel Components - 10 years Aluminium Components - 5 years Electronics - 5 Years Solid Bronze Components - 10 Years Excludes third party lamps and power supplies.
Lumen Output	600 lumens @ 1050 (6 Watts) 420 lumens @ 700 (4 Watts) 240 lumens @ 350 (2 Watts) Delivered from the Luminaire with an unobstructed beam.
Lumens per Watt	100 lm/W Delivered from the Luminaire with an unobstructed beam.
Lens Options	with Clear Lens with Frosted Lens
LED	Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
Standards	CE IEC/BS/AS/NZ 60598 UL 2108 UL 1838
Recommended Power Supplies	Constant Current Driver REQUIRED for Series Wired ( CC format ) TRANSFORMER REQUIRED for 12VAC Parallel Wired ( CV format )

Hunza® Lawn Light Deck Mount

Name: Lawn Light Deck Mount
SKU: LLDMV/L

LLDMV/L

The Lawn Light Deck Mount has been designed to be mounted into timber decks. The luminaire can be walked upon without risk of damage. The lamp can be directed up to 20 degrees at a bush, tree, or the outside of a building etc. The luminaire is fitted with a flush fit lens to stop water pooling and depositing dirt on the lens.

Attention: Hunza strongly suggests, before selecting this in-ground fixture, that consideration is given to ground conditions. i.e. whether fertilizer is being used, or there is high soil acidity, salt content, etc. If there is the possibility that these conditions exist, then please specify Hunza Cast Solid Bronze Lawn Light.

Note: Fixtures must not be pressure washed (water blasted).
