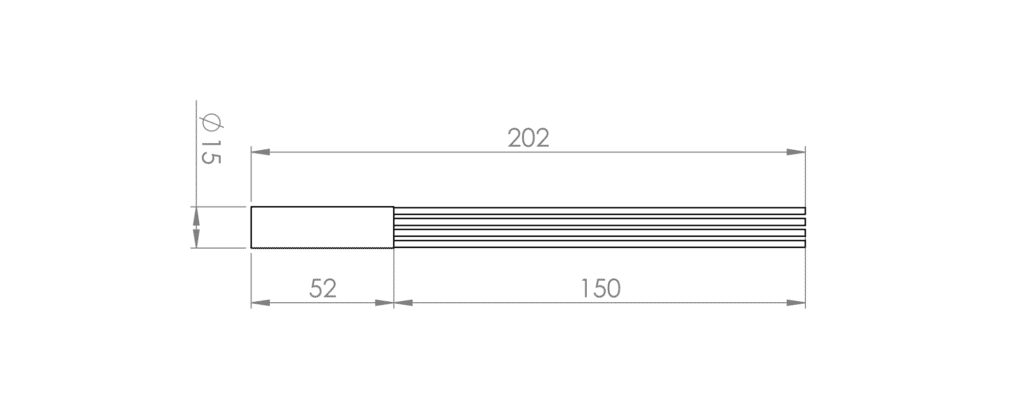

Product Diagram
Product Specifications
| Ingress Protection | IP66 |
|---|---|
| Warranty |
Electronics - 5 Years Excludes third party lamps and power supplies.
|
| Driver Type | 12VAC |
| Input Voltage | 9-15 VAC |
| Output Voltage | 3-12V |
| Frequency | 50/60Hz |
| Output Current |
|
| Dimming | TRIAC or Phase Dimmable |
| Ambient/Operating Temperature (ta) | -20 …+ 50°C |
| Case Temperature (tc) | -20 ...+80ºC Ambient |
| Weight | 0.1 kg ( 0.22 lb ) |
| Dimensions | 1.5 x 1.5 x 5.2 cm ( 0.59" x 0.59" x 2.05" ) |
LuxR® LuxR 12V Buck Driver
LBDXXX
The LuxR Buck Driver is a constant current device that operates from a 9-15 vac input. The LuxR Buck Driver has a forward voltage output range of 3-12 vdc. One of the main features of this product is that it is Triac/Phase dimmable. The second feature is it is available in a 1050mA variant. With a water resistant rating of IP66, the LuxR Buck Driver is suited for use in both landscape lighting and interior lighting applications. This product should only be used with a magnetic transformer for best performance and results.
TYPICAL APPLICATIONS:
– Landscape and Garden Lighting
– General Lighting
– Architectural Lighting
– Sign Lighting
