Name: Path Light
SKU: PL/L

Lumen Output*	600 lumens @ 1050mA (6 Watts) 420 lumens @ 700mA (4 Watts) 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.	100 lm/W

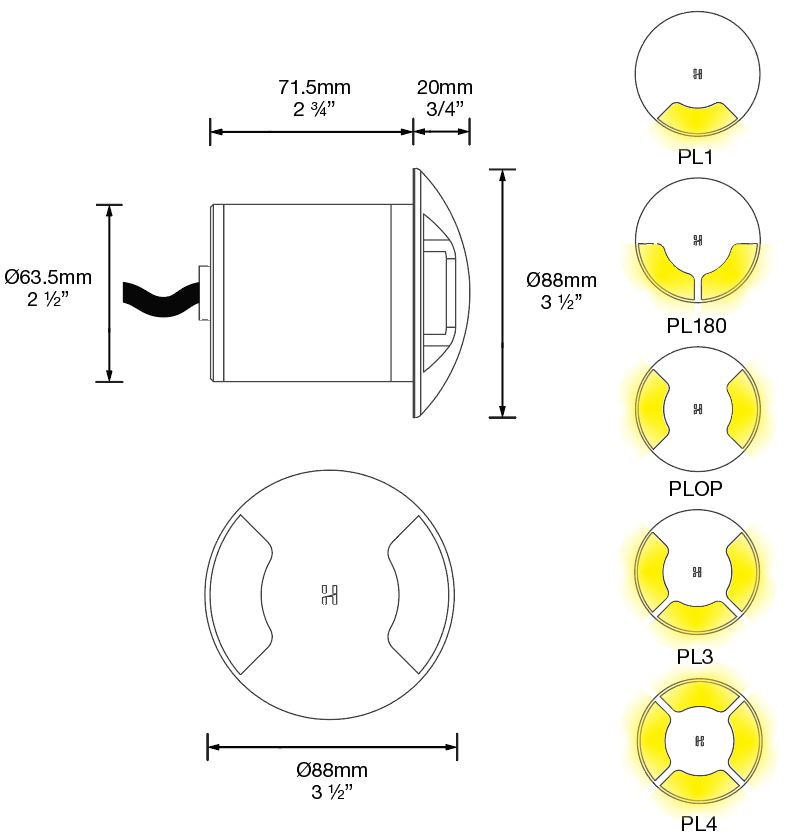

Luminaire Options	Path Light 1 Facet Path Light 180° Facet Path Light 2 Facet – Opposite Path Light 3 Facet Path Light 4 Facet
Warranty	Excludes third party lamps and power supplies 316 Stainless Steel Components – 10 years Electronics – 5 Years Solid Copper Components – 10 Years
Power Options	1050mA CC Input – Series Wired 6Vf 12VAC Input 350mA – Parallel Wired 2.1W 12VAC Input 700mA – Parallel Wired 4.2W 24VDC Input – Parallel Wired 4.2W 12VAC Input 1050mA – Parallel Wired 6.3W
Material Options	316 Marine Grade Stainless Steel Solid Copper
Beam Angle Options	90 Degree 90×90 Degree 180 Degree 270 Degree 360 Degree
Colour Temperature Options	2700K 3000K 4000K
Mounting Options	Deck Mount Canister – Aluminium Stainless Steel Canister Step Light Canister
LED	Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs
CRI	90+ Standard
Ingress Protection	IP67
Materials	316 Marine Grade Stainless Steel Solid Copper
Standards	IEC/BS/AS/NZ 60598 UL 2108 UL 1838 CE
Recommended Power Supplies	Constant Current Driver REQUIRED for Series Wired ( CC format ) TRANSFORMER REQUIRED for 12VAC Parallel Wired ( CV format )

Hunza® Path Light
