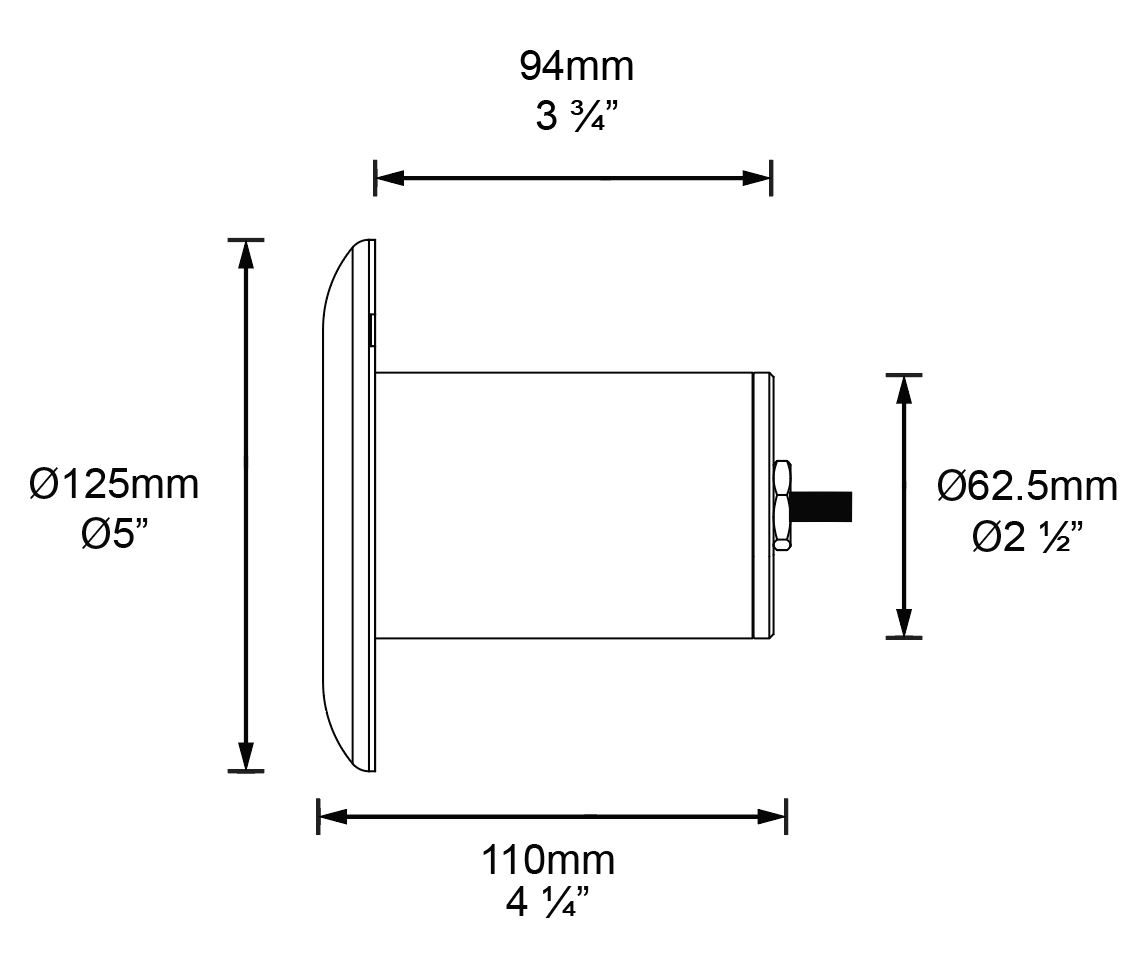

Product Diagram

Product Specifications

CRI	85+ Optional 90+ Standard
Ingress Protection	IP68
Warranty	316 Stainless Steel 316 Stainless Steel Components - 5 years Electronics - 5 Years Excludes third party lamps and power supplies.
Lumen Output	1200 lumens @ 700 (12 Watts) Delivered from the Luminaire with an unobstructed beam.
Lumens per Watt	100 lm/W Delivered from the Luminaire with an unobstructed beam.
Lens Options	with Clear Lens with Frosted Lens
LED	Cree® CXB 1512 field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
Recommended Power Supplies	24VDC Power Supply REQUIRED for 24VDC Parallel Wired ( CV format )

Hunza® Pool Light High Power

Name: Pool Light High Power
SKU: POOL/HP

POOL/HP

The Pool Light High Power is an underwater luminaire designed for recessed installation in swimming pools. It is fully submersible, tested to an IP68 water protection rating and features an electropolish finish for additional corrosion resistance. The luminaire is held in the PVC canister by two “O” rings. There are no mounting screws in the flange to spoil the aesthetics of this luminaire. Up to 600mm (2 ft) of cable can be coiled up inside the mounting canister enabling the luminaire to be removed for lamp changing above the water line. All Hunza High Power products have an extra powder coat layer to ensure maximum corrosion protection.

Note: Hunza™ underwater fixtures are not covered by warranty in situations where there are chemical imbalances in the water.
