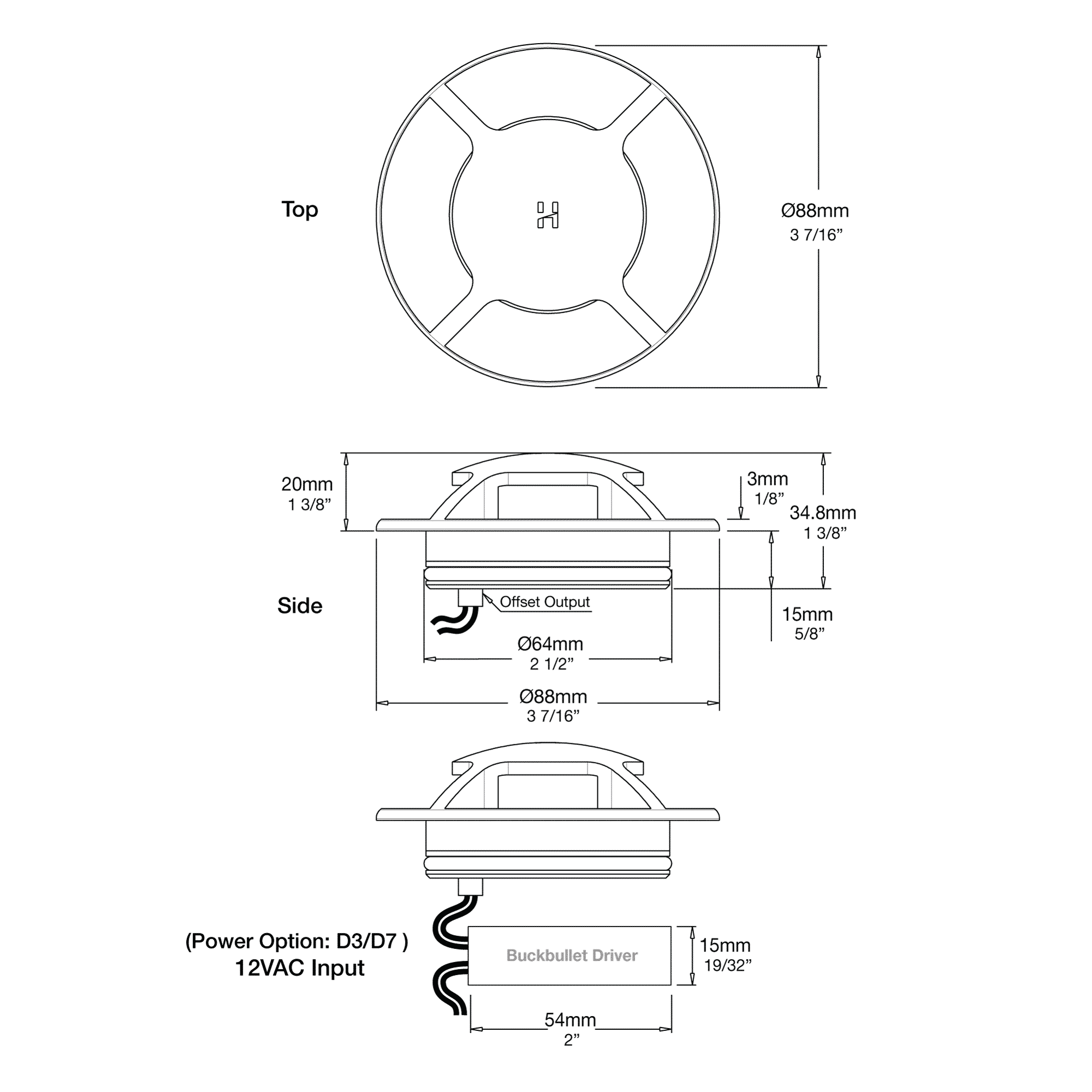

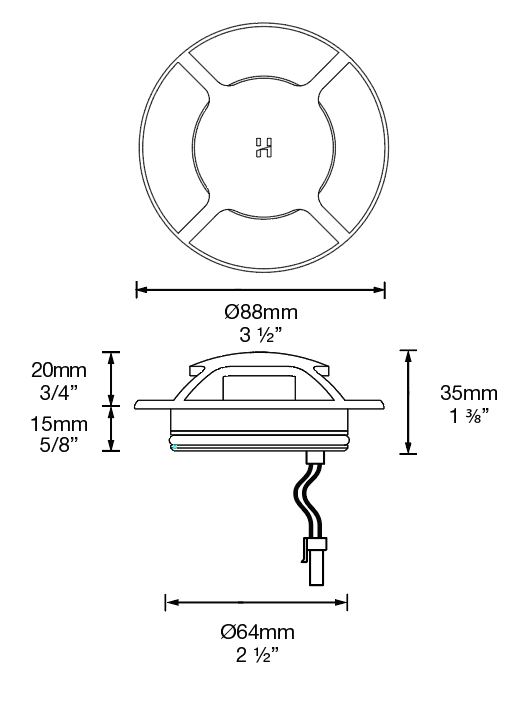

Product Diagram
Product Specifications
| CRI | 90+ Standard |
|---|---|
| Ingress Protection | IP66 |
| Warranty |
Excludes third party lamps and power supplies.
|
| Lumen Output | 120 lumens @ 700 (2 Watts) 60 lumens @ 350 (1 Watts) Delivered from the Luminaire with an unobstructed beam.
|
| Lumens per Watt | 60 lm/W
Delivered from the Luminaire with an unobstructed beam.
|
| Lens Options | with Frosted Lens |
| LED | Cree® XPG-3 Plug and Play field replaceable LED board |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| Standards | IEC/BS/AS/NZ 60598 |
| Recommended Power Supplies |
|
Hunza® Slim Recessed Path Light
SLIMPL/L
The SLIM Recessed Path Light is an ideal solution where mounting surfaces have a limited depth.
- SLIM-FIT Install: Easy 2cm deep recess installation, simply drill and snug fit the fixture into a 64mm wide by 20mm deep recess. Perfect for deck mounting and exterior mounting.
- Perfect for: Decks, paved courtyards and edge lighting paths.
- Lighting: Throws light downwards and across the horizontal surface.
- Mounting: Recessed ( Includes: Ø64x50mm aluminium canister ).
- TIR Borosilicate glass lens has been developed to prevent dirt, mud, grass clippings or water from entering the optics area, keeping with its IP66 rating.
- Manufactured in New Zealand.
Note: Fixtures must not be pressure washed (water blasted).
Downloads
Specifications / Data Sheets
Product Diagrams
Installation Instructions
Photometric Files
