Slim Recessed Solid Eyelid Light
- Deck Mount
SKUSLIMSE/L
The SLIM Recessed Solid Eyelid Light is an ideal solution where mounting surfaces have a limited depth.
- SLIM-FIT Install: Easy 2cm deep recess installation, simply drill and snug fit the fixture into a 64mm wide by 20mm deep recess. Perfect for deck mounting and exterior mounting.
- Perfect for: Step lighting applications where the fixture needs to be unobtrusive or concealed.
- Lighting: The eyelid masks two-thirds of the light, which eliminates all upward light and projects light downwards.
- Mounting Options: Recessed ( Ø64x50mm canister included).
- Manufactured in New Zealand.
Specifications
| LED Chip | Cree® XPG-3 Plug and Play field replaceable LED board |
|---|---|
| Luminaire Output* | 120 lm @ 700 mA (2 W) 60 lm @ 350 mA (3 W) Delivered |
| Lumens Per Watt* | 60 lm/W 20 lm/W Delivered |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| CRI (3000K) | 90+ Standard |
| Ingress Protection | IP66 |
| Warranty |
Excludes third party lamps and power supplies. |
| Standards |
|
Documents
Specifications / Data Sheets
Hunza Slim Recessed Solid Eyelid Light - SLIMSE-L - Specification Sheet
1 file(s) 323.61 KB

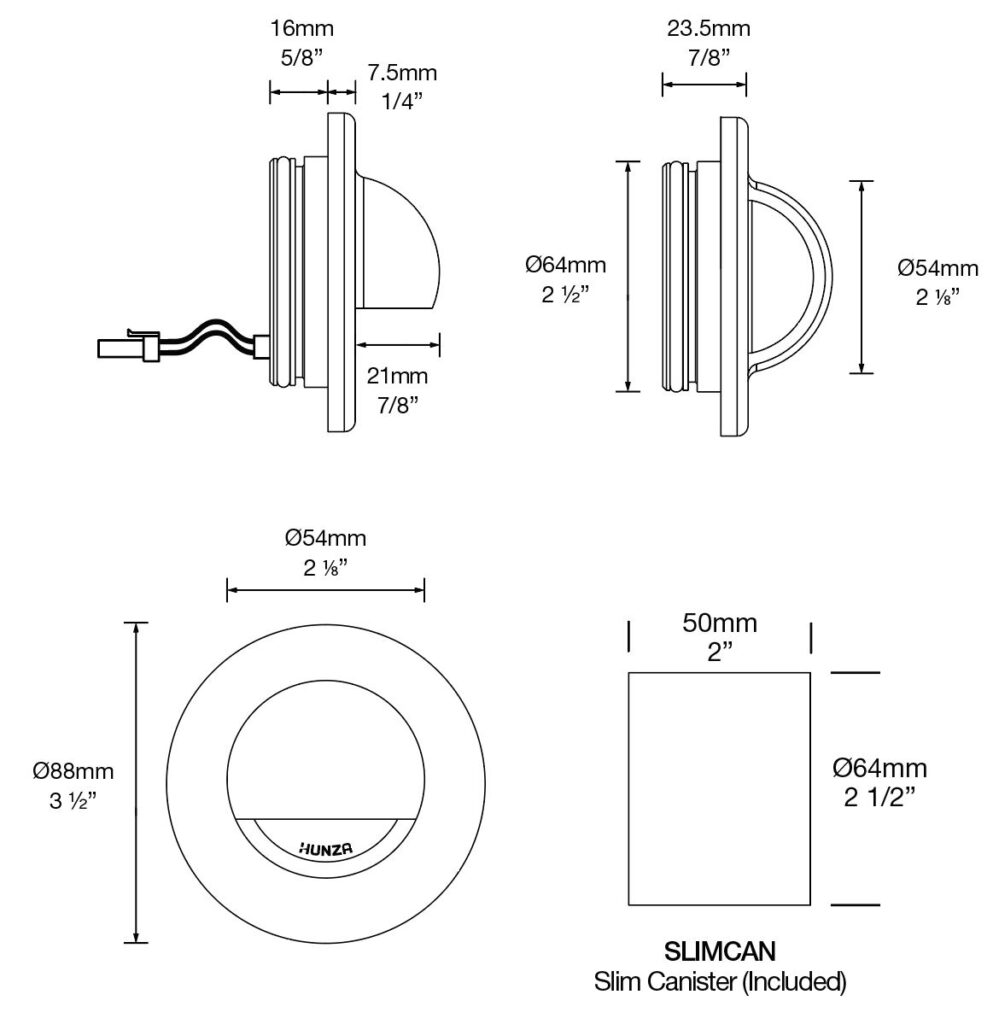

Product Diagrams
Installation Instructions
Photometric Files
