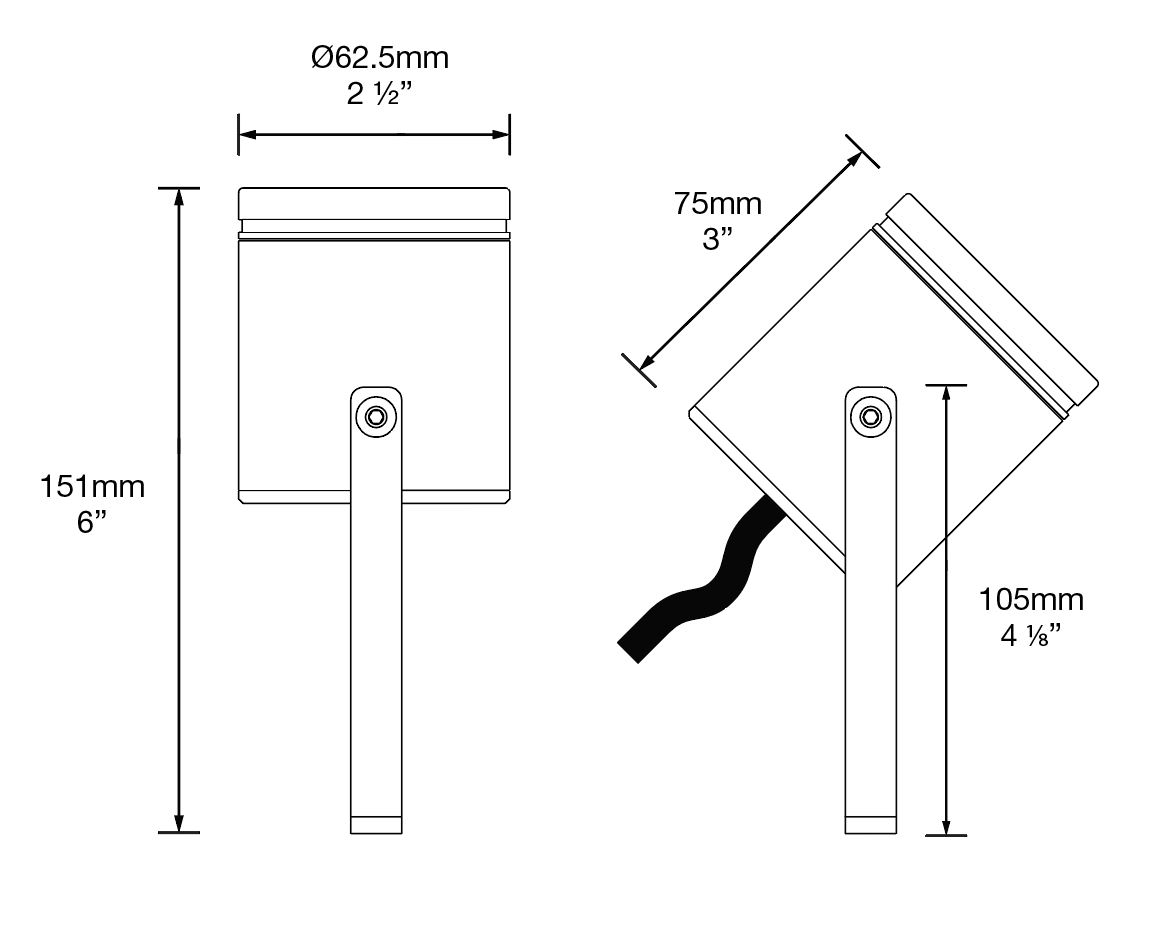

Product Diagram
Product Specifications
| CRI | 90+ Standard |
|---|---|
| Ingress Protection | IP66 |
| Warranty |
Excludes third party lamps and power supplies.
|
| Lumen Output | 600 lumens @ 1050 (6 Watts) 420 lumens @ 700 (4 Watts) 240 lumens @ 350 (2 Watts) Delivered from the Luminaire with an unobstructed beam.
|
| Lumens per Watt | 100 lm/W
Delivered from the Luminaire with an unobstructed beam.
|
| Lens Options |
|
| LED | Cree® XHP-50-2 Plug and Play field replaceable LED board |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| Standards | IEC/BS/AS/NZ 60598 |
| Recommended Power Supplies |
|
Hunza® Bracket Spot Light
BS/L
The Bracket Spot Light has been designed to be mounted on either horizontal or vertical surfaces. It can be used for wall washing, to provide directional light, and to highlight architectural features and structural elements.
Note: Fixtures must not be pressure washed (water blasted).
Downloads
Specifications / Data Sheets
Product Diagrams
Installation Instructions
Photometric Files
