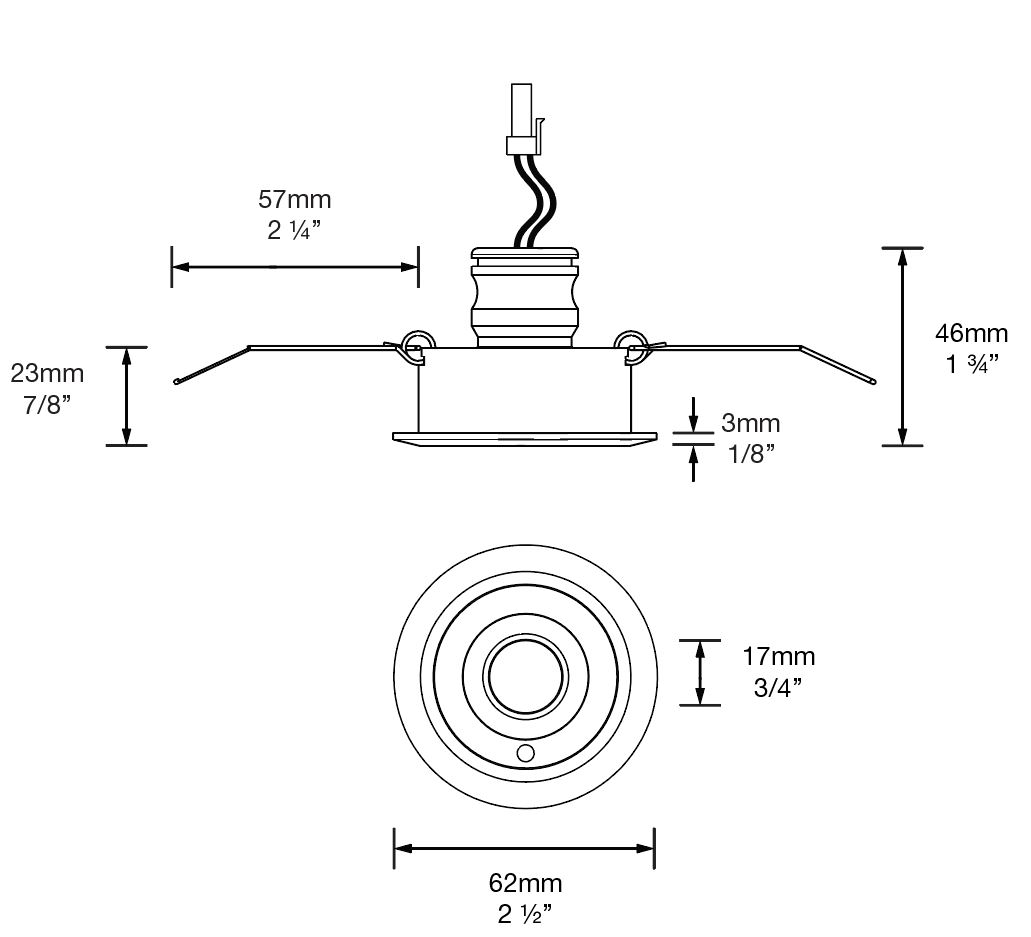

Product Diagram

Product Specifications

CRI	90+ Standard
Ingress Protection	IP66
Warranty	316 Stainless Steel Components - 10 years Aluminium Components - 5 years Electronics - 5 Years Solid Copper Components - 10 Years Excludes third party lamps and power supplies.
Lumen Output	70 lumens @ 350 (1 Watts) 120 lumens @ 700 (2 Watts) 200 lumens @ 1050 (3 Watts) Delivered from the Luminaire with an unobstructed beam.
Lumens per Watt	70 lm/W Delivered from the Luminaire with an unobstructed beam.
LED	Cree® XPG-3 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
Standards	IEC/BS/AS/NZ 60598 UL 2108
Recommended Power Supplies	Constant Current Driver REQUIRED for Series Wired ( CC format ) 24VDC Power Supply REQUIRED for 24VDC Parallel Wired ( CV format ) TRANSFORMER REQUIRED for 12VAC Parallel Wired ( CV format )

Hunza® Tilting Eave 3W

EAVE/T3/L

The Tilting Eave Light 3 watt is a recessed downlight ideal for installation in eaves, soffits, entrance ways, verandahs, carports or covered decks. It can also be used in bathrooms, kitchens or where moisture transfer or decibel rating is a minimum requirement. The “Eyeball” allows 360-degree rotation and 30-degree tilt from the centre.
