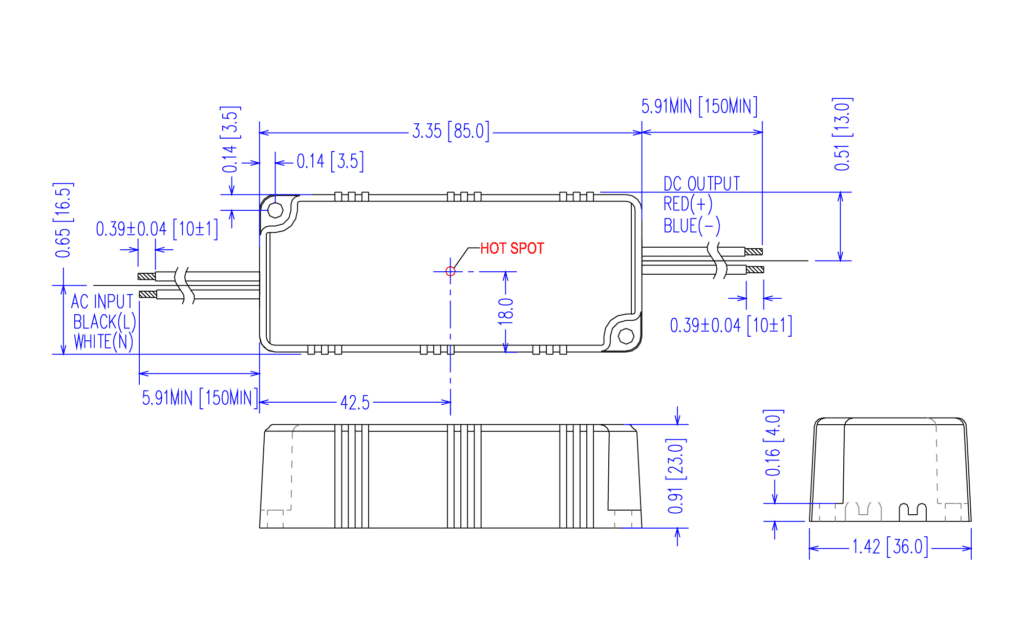

Product Diagram
Product Specifications
| Ingress Protection | IP66 |
|---|---|
| Warranty |
Third Party Warranty* Excludes third party lamps and power supplies.
|
| Driver Type | Constant Current |
| Input Voltage | 110-277VAC |
| Input Current | 0.15A |
| Inrush current | <10A |
| Frequency | 47/63Hz |
| Input Power (MAX) | 12W |
| Power Factor | >0.94 |
| Output Voltage | 6-12V |
| Output Current | 1000mA |
| Output Power (W) | 12W |
| Case Temperature (tc) | 80°C MAX |
| Ambient/Operating Temperature (ta) | -30 ...+60°C |
| Weight | 0.128 kg ( 0.28 lb ) |
| Dimensions | 8.5 x 3.6 x 2.3 cm ( 3.35" x 1.42" x 0.91" ) |
EPtronics 1000mA 12W 6-12VDC Constant Current Driver (Retro)
LD12W-12-C1000
The EPTronics LD12W-12-C1000 is a 12 Watt electronic, constant current, Retro driver supplied with Hunza pole-mount Retro PureLED fixtures equipped with Cree XHP LED chips. It is non-dimmable.
