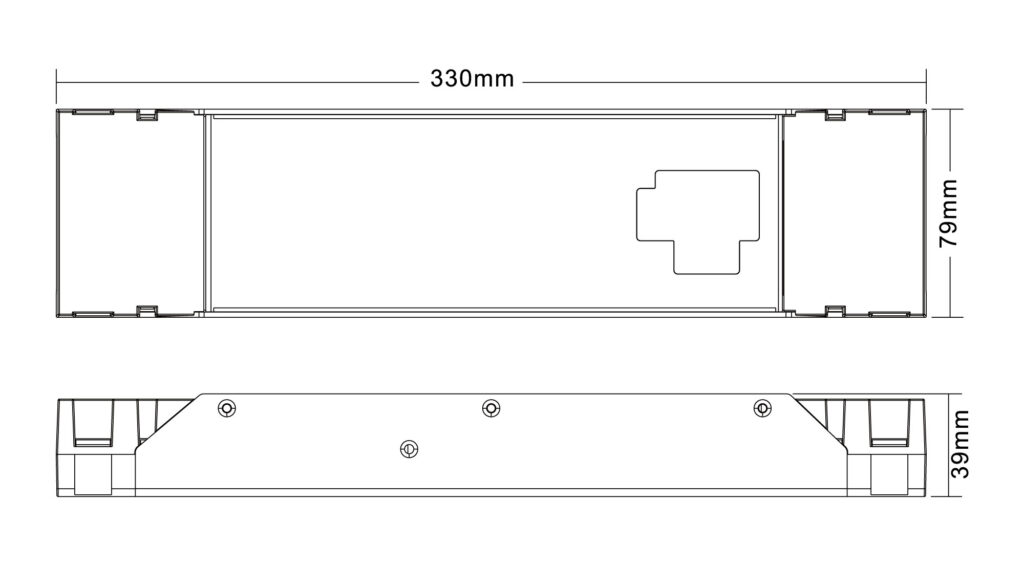

Product Diagram
Product Specifications
| Ingress Protection | IP20 |
|---|---|
| Warranty |
Third Party Warranty* Excludes third party lamps and power supplies.
|
| Driver Type | Constant Current RGBW |
| Dimming | DMX/RDM |
| Output Voltage | 8-52V |
| Output Current | 250-1400mA |
| Output Power (W) | Max. 77W/CH, CH1+CH2+CH3+CH4 ≤ 150W |
| Input Voltage | 100-277VAC |
| Input Current | 1.82A |
| Frequency | 50/60Hz |
| Standards |
|
| Ambient/Operating Temperature (ta) | -25 ...+45°C |
| Dimensions | 33 x 7.9 x 2 cm ( 12.99" x 3.11" x 0.79" ) |
SUNRICHER DMX/RDM Full Colour (RGBW) 4 Channel – Constant Current Driver – 150W
SRPC-2108-150CCF
The Hunza SRPC-2108-150CCF is a 150W DMX and RDM constant current LED Driver. It has four LED outputs, which can be used for a wide range of full-colour (RGBW), dynamic LED lighting applications.
Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.
| Output | LED Channel | 4 | ||||||||||||||||||||
| Selectable Current | 250mA | 300mA | 350mA | 400mA | 450mA | 500mA | 600mA | 700mA | ||||||||||||||
| DC Voltage Range | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | ||||||||||||||
| Selectable Current | 800mA | 900mA | 1000mA | 1100mA | 1200mA | 1300mA | 1400mA | 1500mA | ||||||||||||||
| DC Voltage Range | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | ||||||||||||||
