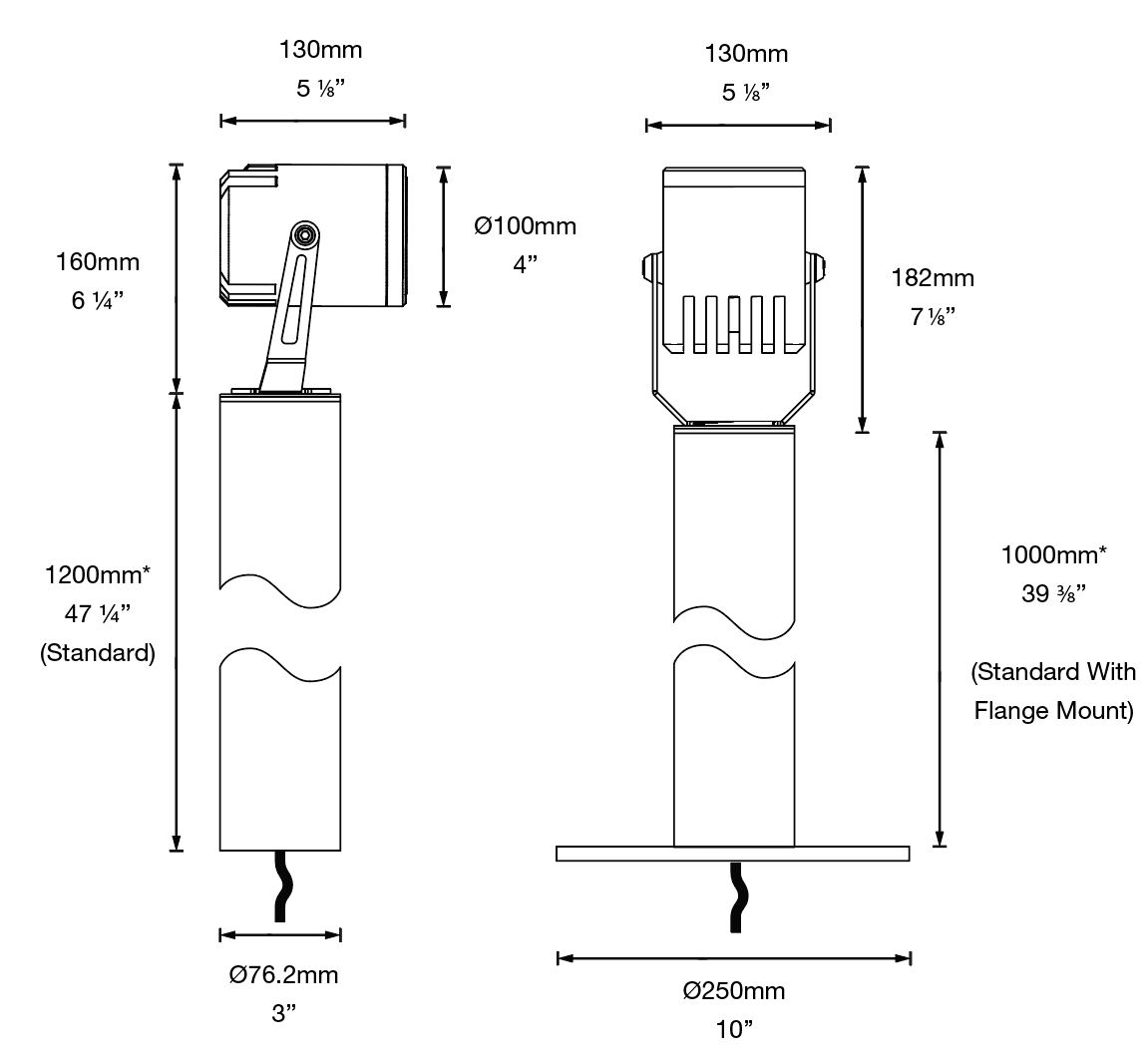

Product Diagram
Product Specifications
| Ingress Protection | IP66 |
|---|---|
| Impact Protection | IK10 |
| Warranty |
Excludes third party lamps and power supplies.
|
| Lumen Output | 1400 lumens @ 350 (26 Watts) Delivered from the Luminaire with an unobstructed beam.
|
| Lumens per Watt | 54 lm/W
Delivered from the Luminaire with an unobstructed beam.
|
| Lens Options |
|
| LED | LED ENGIN LZP RGBW field replaceable LED board |
| LED Life Expectancy | 50,000 Hrs @ L70 |
| Standards |
|
| Recommended Power Supplies | DRIVER SUPPLIED for Series Remote Wired (CC format) |
Hunza® Ultra 35 RGBW Pole Spot
PS/U35/RGBW
The Ultra 35 RGBW Pole Spot has been designed to be mounted on horizontal surfaces. It can be used for wall washing, to provide directional light and to highlight architectural features and structural elements. It has a fully adjustable head allowing 360 degrees rotation and 0-120 degrees elevation and can be fixed in place using the inbuilt locking mechanism. The pole height can be specified, as required, up to 2 metres 6ft 6″.
It incorporates a high-output, multi-colour LED system that is controlled by DMX to produce any colour in the visible spectrum, including pastels and various shades of white.
Our RGBW LED system is superior to older RGBW systems in that a range of warm white colour temperatures can be achieved, as well as a much more extensive range of subtle hues.
Downloads
Specifications / Data Sheets
Product Diagrams
Installation Instructions
Ultra 35 RGBW Spot - S-U35-RGBW - Installation Instructions International
1 file(s) 661.26 KB
Photometric Files
